Top EDM Drilling Machine Manufacturers and Suppliers in China

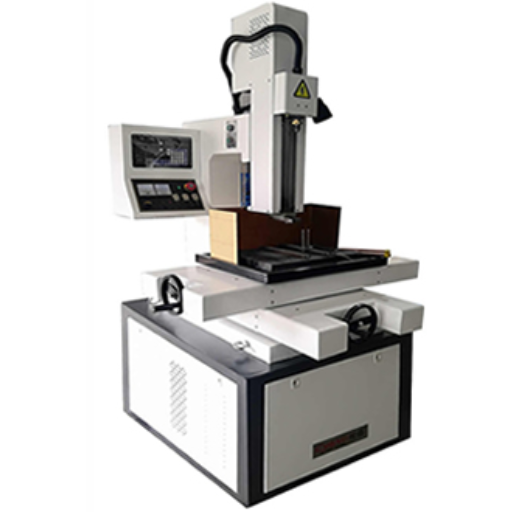

MS-DC430B EDM Drilling Machine

ANTISHICNC offers advanced EDM technology and solutions to industries such as automotive, aerospace, and electronics. We provide machines that can do precision drilling, mold machining with extraordinary complexity, and high-speed production while combining innovations with durability and performance.

Factory Sale MS-DC430B EDM Drilling Machine EDM Drilling Machine

Efficient Electrode Usage: The Z travel of 380mm supports electrode lengths up to 500mm. It is present to minimize electrode consumption to just 100mm. The machine thus ensures maximum usage of electrodes together with the circuits of low consumption.
High-Speed Z-Axis Movement: The Z-axis is driven by a subdivision drive stepper motor (hybrid servo motor) providing a full travel time of 10 sec medicines of waiting time and speeding up output. The electrically-driven machine head in turn saves on the operational procedures.
Patented Swivel Head: Integrated swivel head with tungsten steel wear plate and multi-layer waterproof structure. The taper sleeve connection provides accurate rotational concentricity for superior performance.

Technical Proposal for EDM Drilling Machine

NO.	Specifications	MS-DC430B
1	Electrode diameter(mm)	Φ0.2-Φ3.0
2	W axis/ Machine head travel(mm)	250
3	Z axis/ Spindle servo travel(mm)	380
4	Max. speed of spindle(mm)	1500
5	Spindle rotation speed(rpm)	0-200 adjustable
6	Worktable size(mm)	440*320
7	X*Y travel(mm)	400*300
8	Max distance from guide to working table（mm）	300
9	Max. worktable load（kg）	300
10	Overall dimension of machine（WLH）	100010002100
11	Machine weight（kg）	750
12	Positioning accuracy X,Y(mm)	X.Y≤0.04/300
13	Repositioning accuracy XY(mm)	X.Y≤0.04/300
14	Max feed speed XY（mm/min）	≤1000
15	Control axes	X、Y、Z three axis
16	Machining axis	Z axis
17	Max. working current（A	30
18	Machining speed（mm/min）	30-60
19	Max. input power（KW）	4.5
20	Min. wear of electrode	≤0.8
21	Working liquid supply device	electrical pump
22	Display axis	Three axes
23	Capacity（L）	110
24	Filtering	Carbon steel paper filtration system
25	Quantity of filter	1 pieces
26	Material	304 Stainless steel
27	N.W.(kg)	45
28	Dimension （WLH）	920460800mm

Main Parts& Standard Equipment

No.	Spare parts
1	X Y Z ball screw
2	W axis ball screw
3	X Y Z linear guideway
4	X Y Z motor
5	X Y driver
6	Z drier
7	W axis motor
8	Rotation motor
9	electrical pump
10	Pneumatic pump
11	scale
12	operating system
13	Circuit breakers, contactors
14	Allen key
15	Double-head screwdriver
16	Specialized electrode scissors
17	Guide
19	Brass electrode tube
20	Brass electrode tube
21	Electrode sealing ring
22	Precision drill chuck
23	Machine foot
24	Clean water tank
25	Dirty water tank
26	Balance holder
27	Water baffle
28	Operation Manual

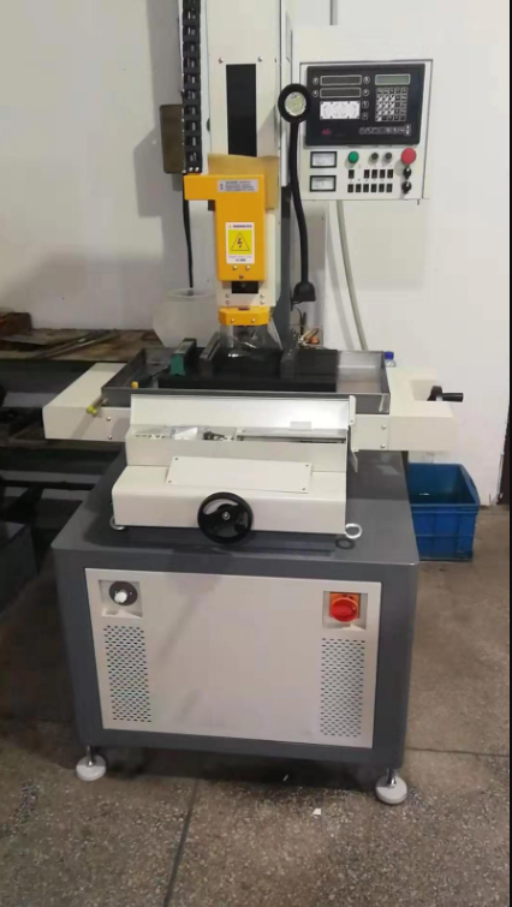

MS-DC430B EDM Drilling Machine EDM Drilling Machine Product Display Picture
