Get the best accuracy in the market with our Metal Milling Machine, trusted across industries from aerospace to automotive. Characterized by their rugged build, sophisticated CNC systems, and dependable performance in harsh environments, these machines guarantee flexibility, efficiency, and accuracy for various milling tasks.
Explore the benefits of the metal milling machine tailored for accuracy and durability with understand its economic value. A comprehensive solution to your milling exigency.
Our sophisticated CNC controls allow for tolerances of ±0.005mm, meeting the standards of the aerospace and medical sectors.
During extended periods of machining, a high-pressure coolant system will ensure precision maintenance and tool longevity.
All multi-axis configurations enable the machining of complex geometry, undercuts, and multi-face milling in a single setup which optimizes productivity.
Aluminum, stainless steel, titanium, copper, hardened steel, and many other metal alloys are of no issue to work with.
Explore the most appropriate metal milling machines on sale.

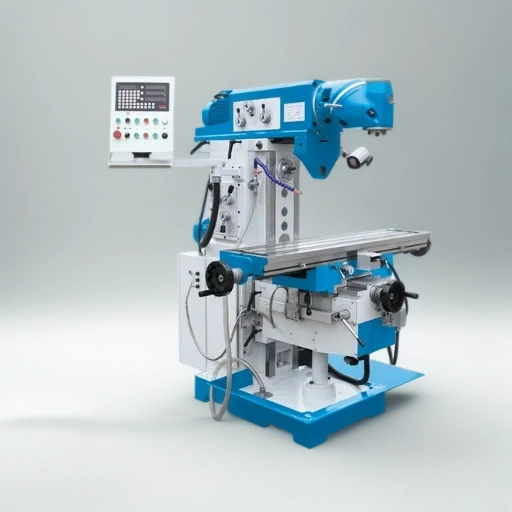

| Universal Swivel Head Milling Machine XQ6432/XQ6432A/XQ6432B/XQ6432C | ||||
|---|---|---|---|---|
| Specifications | XQ6432 | XQ6432A | XQ6432B | XQ6432C |
| Working area | ||||
| Worktable size (L¡ÁW) | 1270x320mm | 1370x320mm | 1270x320mm | 1370x320mm |
| T slot (Width x No. x pitch) | 14x3x80mm | 14x3x80mm | 14x3x80mm | 14x3x80mm |
| Max. load of table | 300kg | 300kg | 300kg | 300kg |
| Table rotation | optional: ±45˚ | optional: ±45˚ | optional: ±45˚ | optional: ±45˚ |
| Distance from horizontal spindle axis to table surface | 65-465mm | 65-465mm | 65-465mm | 65-465mm |
| Distance from vertical spindle nose to table surface | 250-650mm | 250-650mm | 250-650mm | 250-650mm |
| Travels | ||||
| Worktable longitudinal travel (X) | 720mm | 820mm | 900mm | 1000mm |
| Worktable cross travel (Y) | 300mm | 300mm | 380mm | 380mm |
| （If with DRO:280mm） | （If with DRO:280mm） | （If with DRO:360mm） | （If with DRO:360mm） | |
| Worktable vertical travel (Z) | 400mm | 400mm | 400mm | 400mm |
| Ram travel | 460mm | 460mm | 460mm | 460mm |
| Spindle | ||||
| Horizontal spindle speed | 12 steps; 35-1500rpm | 12 steps; 35-1500rpm | 12 steps; 35-1500rpm | 12 steps; 35-1500rpm |
| Spindle taper(Horizontal) | 7:24, ISO40 | 7:24, ISO40 | 7:24, ISO40 | 7:24, ISO40 |
| Motor power(Horizontal) | 3kW | 3kW | 3kW | 3kW |
| Universal milling head spindle speed | 11 steps; 45—1660rpm | 11 steps; 45—1660rpm | 11 steps; 45—1660rpm | 11 steps; 45—1660rpm |
| Spindle taper(Universal milling head) | 7:24, ISO40 | 7:24, ISO40 | 7:24, ISO40 | 7:24, ISO40 |
| Universal milling head swivel angel | ±360° | ±360° | ±360° | ±360° |
| Motor power (Universal milling head) | 3kW | 3kW | 3kW | 3kW |
| Feed | ||||
| Rapid feed (X/Y/Z) | 1335/1335/1000mm/min | 1335/1335/1000mm/min | 1335/1335/1000mm/min | 1335/1335/1000mm/min |
| Feed range (X/Y) | 30-830mm/min | 30-830mm/min | 30-830mm/min | 30-830mm/min |
| Feed range (Z) | 23-625mm/min | 23-625mm/min | 23-625mm/min | 23-625mm/min |
| Others | ||||
| Machine size (L¡ÁW¡ÁH) | 1720x1680x1860mm | 1820x1680x1860mm | 1720x1680x1860mm | 1820x1680x1860mm |
| Net weight | 1850kg | 1900kg | 1900kg | 1950kg |
Here’s What Our Customers Say About Our CNC Metal Milling Machine
Learn more about mill machines, with self-help guides on upkeep and how to select equipment to suit your needs and much more.
Metal Shaper vs Milling Machine: Understanding Shapers, Mills, and Their Roles in Metalworking In the field of metalworking, the importance of the right equipment cannot be stressed enough, especially...
Face milling is a vital machinery operation, primarily known for precision and versatility. Essentially, this process is indispensable in the manufacturing field. For both expert machinists and novices, understanding...

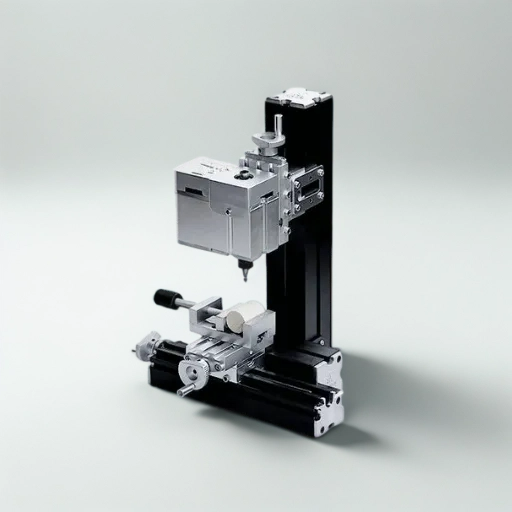

To bring accuracy and adaptability to your machining jobs, without occupying more space in his shop, he would surely go for a mini milling machine. Small yet very strong,...
With precision machining, vertical milling machines stand as the backbone of any workshop or manufacturing environment. However, for those interested in spending less and getting more machines, used vertical...
Milling machines are crucial drying technologies that shape raw materials into precision components, sustaining various industries worldwide. However, when the time comes to determine which machine to use, the...
Reach out to our specialists today for a tailored consultation and discover the transformative impact Milling Machine can have on your production processes.
A: The variable speed feature in a milling machine is important in optimally adjusting the spindle speed to the material being machined and the cutting operation being executed. The ability to modify the parameters is crucial in maximizing the cutting performance, improving the surface finish, and extending the useful life of the cutting tools. Different milling operations, including high speed machining and heavy milling, need different speeds set to achieve the desired results.
A: With extended production runs, our CNC milling machines achieve ultra-tight tolerances of ±0.025mm (±0.001 inches). High-precision mechanical components, aerospace engine parts, and medical implants require this level of precision. Moreover, our machines utilize thermal stability systems which are vital during prolonged production runs.
A: Aluminum, steel, titanium, Inconel, stainless steel, high-performance plastics (PEEK), and advanced composites (CFRP) are all processed by our machines. Materials are tailored to our advanced cutting tools to boost performance and longevity, thereby, extending tool life. We offer tailored cutting parameters and tool suggestions for each material.
A: Multiple quality assurance methods are enforced, including real-time monitoring, automated inspections, control systems, and thermal compensation. Thermal displacement is maintained under 3 μm and comprehensive traceability is provided. This is essential for regulated industries, including medical device manufacturing, ensuring thermal compensation and accurate measurements.
A: Comprehensive support and training include comprehensive operator and programmer courses, 24/7 technical contact, remote diagnostics, preventative maintenance, and application engineering. Advanced global servicing guarantees a rapid response to all needs, reducing downtime significantly. Basic operation training takes 1-2 weeks while advanced programming takes 3-4 weeks.
A: The first milling machine was made in the late 18th century to enhance metalworking efficiency, marking the beginning of the history of milling machines. The invention of different types of milling machines, especially CNC milling machines, has allowed for automated and more accurate machining in recent years. The evolution of technology in machining and milling has transformed manufacturing and metalworking practices, especially in recent years.
