The Fast Wire Cutting EDM Machine is designed to revolutionize precision, reliability, and the efficiency of the manufacturing world. Built for professionals who demand perfect accuracy and cost-effective production, it renders unmatched performance in cutting various conductive materials. Whether designing delicate parts or producing them in large quantities, the right choice for your success is undoubtedly this machine.
Traditional wire EDM machines are painfully slow, creating a bottleneck in your production line and missing critical delivery deadlines.
Downtime but unplanned due to wire breaks and maintenance, thus hurting production schedules and commitments to customers.
High expenses due to wire consumption over $1,000/year per machine eat into your profit margins for every cut.
Achieving tolerances consistently below ±0.0005" remains a challenge with conventional equipment, causing quality problems.
Discover our Fast Wire Cutting EDM Machine designed to produce precision and efficiency. On complex assignments, achieving dependable high-performance delivery is all on advanced technology.
Achieve smooth terminating cuts, intricate details, and mirror finishes on tough materials like carbide, hardened steel.
Wire EDM can eliminate up to 8 machining steps, thereby greatly reducing production costs.
Operating autonomously 24/7, this machine saves time and reduces labor costs while increasing production capacity.
From micro to large components, this setup minimizes scrap and requires less post-processing.
Over 25 years of EDM innovation duration, with 140-plus patents related to wire cutting technology. Trusted by Fortune 500 companies the world over, with over 10,000 machines installed worldwide.
Zero waste discharge while also reducing 40% of energy consumption in comparison with conventional machines. Achieve an environmental sustenance goal with bettering profits.
We provide 24/7 technical support within two hours. Our global service ensures minimum downtime in maximizing productivity.
Built for Industry 4.0 with IoT connectivity, AI-powered optimization, and cloud-base analytics. Your investment will grow with advancing technology.
Best Fast Wire Cutting EDM requiring precision, speed, and reliabilities. Ideal for intricate cuts and high-speed production in a modern setup.

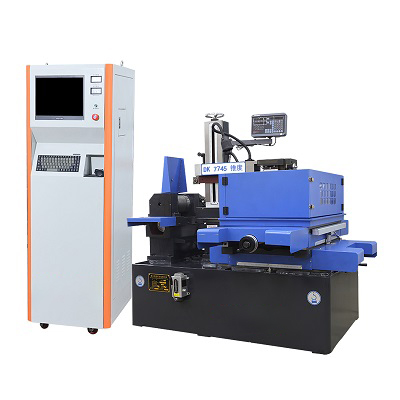

A Fast Wire EDM Machine is one type of electrical discharge machining (EDM) system used for excellent cutting, slicing, and profiling of workpieces. Electrical discharges occur between a high-tensile molybdenum wire and the workpiece, allowing for intricate and detailed cuts. These machines are well-suited for challenging flush conditions and are commonly used in fields such as 3D metal printing. The set of features includes automatic wire threading and an advanced wire guide system, capable of producing high accuracy and efficiency in machining.
The wire EDM is the name given to a type of machine used to cut materials by electric spark discharge. The machine feeds a continuous wire, which is typically made of molybdenum or brass, through the workpiece while flushing the area with a dielectric fluid to evacuate the EDM swarf and cool down the workpiece.
Aerospace Quality Standard
Comprehensive Coverage
Innovation Recognition
Quality Management System
| Specification | Standard | Premium |
|---|---|---|
| Wire Diameter Range | 0.004" - 0.012" (0.1-0.3mm) | 0.0008" - 0.013" (0.02-0.33mm) |
| Linear Tolerance | ±0.0005" (±0.0127mm) | ±0.0001" (±0.00254mm) |
| Hole Diameter Tolerance | ±0.001" (±0.0254mm) | ±0.00005" (±0.00127mm) |
| Power Supply | 100V - 200V | 100V - 300V |
| Cutting Speed | 64 mm²/min | 120 mm²/min |
| Work Table Size | 400mm x 300mm | 800mm x 600mm |
| Maximum Workpiece Weight | 150 kg | 500 kg |
| Automatic Wire Threading | ✓ Standard | ✓ Enhanced Speed |
Here’s what our customers say about our Fast Wire Cutting EDM Machine
Discover tips, insights, and improvements in fast wire EDM machining so as to enhance precision and efficiency in your manufacturing activities.
Historically speaking, the cutting of metal must be done with utmost precision for it to be serviceable. Also known as spark erosion cutting, wire EDM cutting is one of...
Electrical Discharge Machining (EDM) has served as a propellant for modern manufacturing, providing a solution for the creation of intricate and sturdy parts that were once believed to be...
EDM, wire cutting services at the vanguard of precision manufacturing, offer the highest levels of accuracy and efficiency in building complex parts and components. However, the question remains: How...
Understanding Electric Discharge Machining with Wire Cutting for Modern Manufacturing One of the truly revolutionary methods that precision industries have in their arsenal is Electric Discharge Machining with wire...
Fast Wire Cutting EDM Machine solves your toughest manufacturing problems, giving you precision, reliability, and cost savings while having all the advanced features with the latest technology. Contact Us or Request a Quote to know how our Fast Wire Cutting EDM Machine will make your business better.
A: The fast wire EDM system will consist of an electrical discharge machining process that uses a thin wire electrode to cut conductive materials at exceptionally high speed, enabling the creation of delicate shapes with precision across various dimensions for multiple applications.
A: Molybdenum wire and brass wire are used the most. While molybdenum wire is more durable and has a higher melting point, the brass wire is preferred mostly because of its conductivity and much low cost.
A: Fast wire EDM offers several advantages, such as very high cutting speed, precise machining, minimum wire consumption, making complex geometry with fine wire without breaking, burr-free finishing, and less maintenance than the conventional machining methods.
A: The cutting speed in wire EDM may vary depending on the wire type, workpiece type of materials, cutting conditions, and machine setup. High-pressure flushing can also help increase cutting efficiencies and reduce the incidence of wire breakage.
A: Yes, it is suitable for many fast wire EDM machines to operate on interrupted cut conditions. The use of cutting edge techniques such as automatic wire threading and adaptive control will ensure accurate cutting under such contrasting conditions.
A: Automatic wire threading is a feature with newer wire EDM machines whereby the threading of wire through the whole system is swift and efficient without the need for manual operations. This reduces downtime and increases productivity by ensuring maximum production time.
A: Flushing operations, such as pressure flush or submerged cutting, are of great importance when it comes to wire EDM performance. Efficient flushing established in clearing away debris while cooling the cutting area enhances machining accuracy and lessens the likelihood of wire breaks, particularly if conditions favorly toward poor flushing.
A: CAD is a very important process involved in wire EDM machining since it helps in the design and programming of workpiece geometry with great precision. The presence of on-board CAD systems in advanced wire EDM machines improves workflow and allows for rapid adjustments of complex designs.
A: Good surface finish can be obtained on wire EDM by optimizing cutting parameters, appropriate wire type, and flushing conditions. Regular maintenance of the machine and usage of good quality dielectric fluid will also enhance surface finish.
