Discovering the cutting-edge CNC Slotting Machine for the perfection, versatility, and efficiency required in modern manufacturing. This advanced technology-based machine ensures precise slotting, grooving, and keyway cutting for a wide range of operations carried out in various industries, including automotive, aerospace, and heavy machinery.
Manual operation leads to human errors, inconsistent results, and time-consuming setup changes.
Without automation, it becomes tough to guarantee the consistency of quality, resulting in rework and dissatisfied customers.
Traditional machines basically cannot work with tight tolerances, hard-to-make geometries, and fancy cuts of T-slots and keyways.
Manual adjustments and downtime and tool wear have all led toward the increased cost of production and decreased throughput.

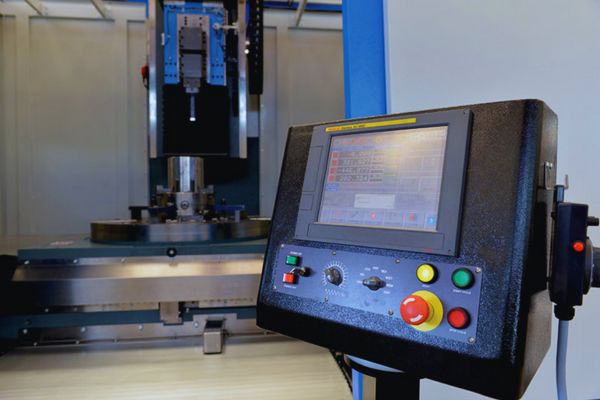

This precision-engineered CNC slotting machine is high in accuracy, advanced in technology, and durable in construction, with the intention of performing various industrial applications.
Selecting the DS-8 through DS-40 series gives you stroke ranges of 10″ to 24″ and rotary table sizes of 13″ to 30″.
Fully dedicated controller and centralized lubrication system ensure low maintenance and high uptime.
Cutting speeds of 60 strokes per minute to 15-45 strokes per minute ensure fine surface finishing on a variety of materials, including hardened steel.
EN series steel gears, strong rocker arm mechanism, and an easy-to-use interface.
Multi-axis capability creates intricate geometry and reduces setup time by eliminating the need for multiple fixturing operations.
An intelligent tool management system which provides automatic tool change and wear monitoring to avoid the stoppage of operation.
Energy-efficient operations reduce power consumption by 40%, even when working at peak performance levels.
Ready for Industry 4.0 with IoT connectivity, to allow seamless integration with innovative manufacturing environments.

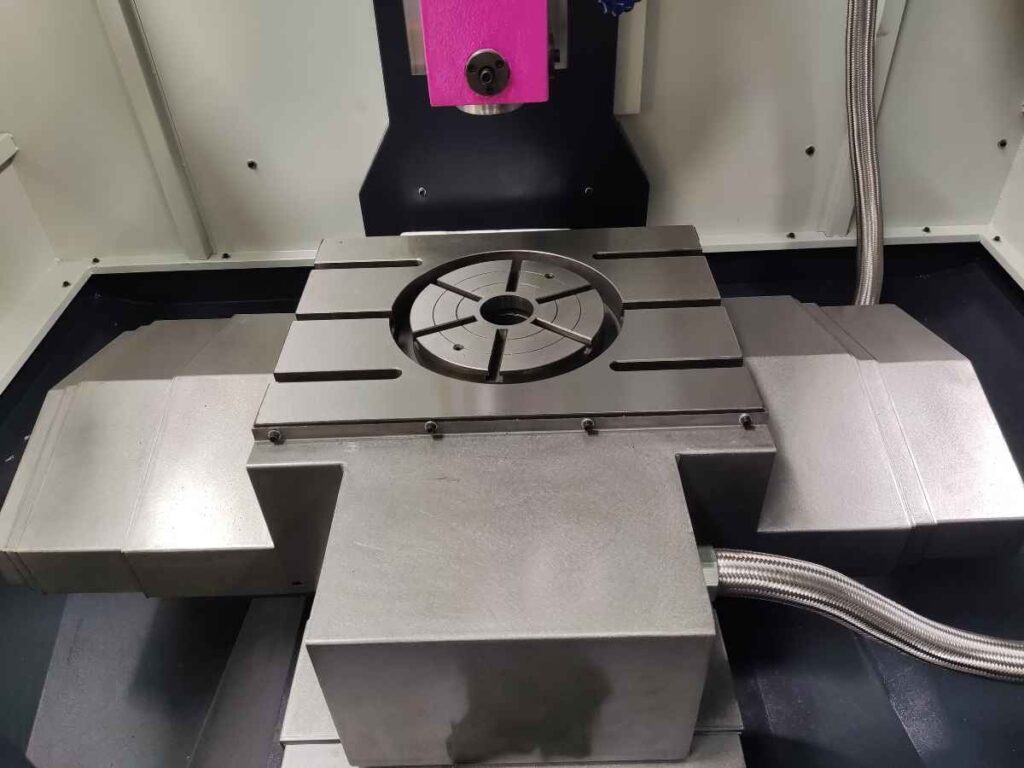

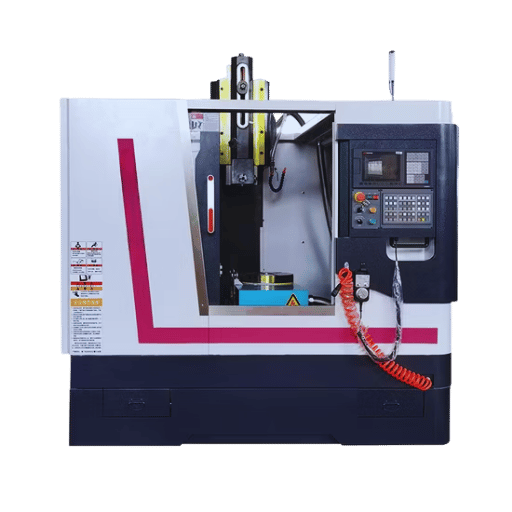

The CNC slotting machine is a specialized tool that accommodates precise slots, grooves, and keyways in various materials, including metals and plastics. These machines implement CNC technology to enable precision and high-efficiency slotting activities. There are usually servo motors for precision and high-precision ball screws for forming slots with high precision. CNC slotting machines are widely used in industries where intricate machining needs to be accomplished with a guarantee of reliability.

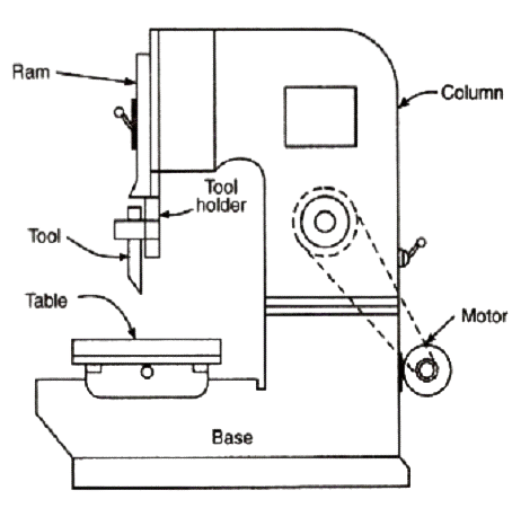

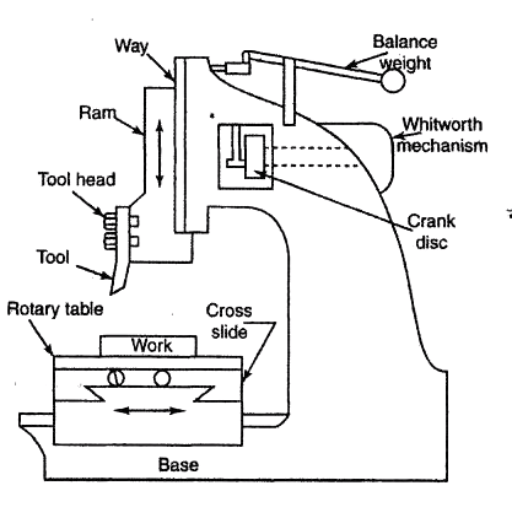

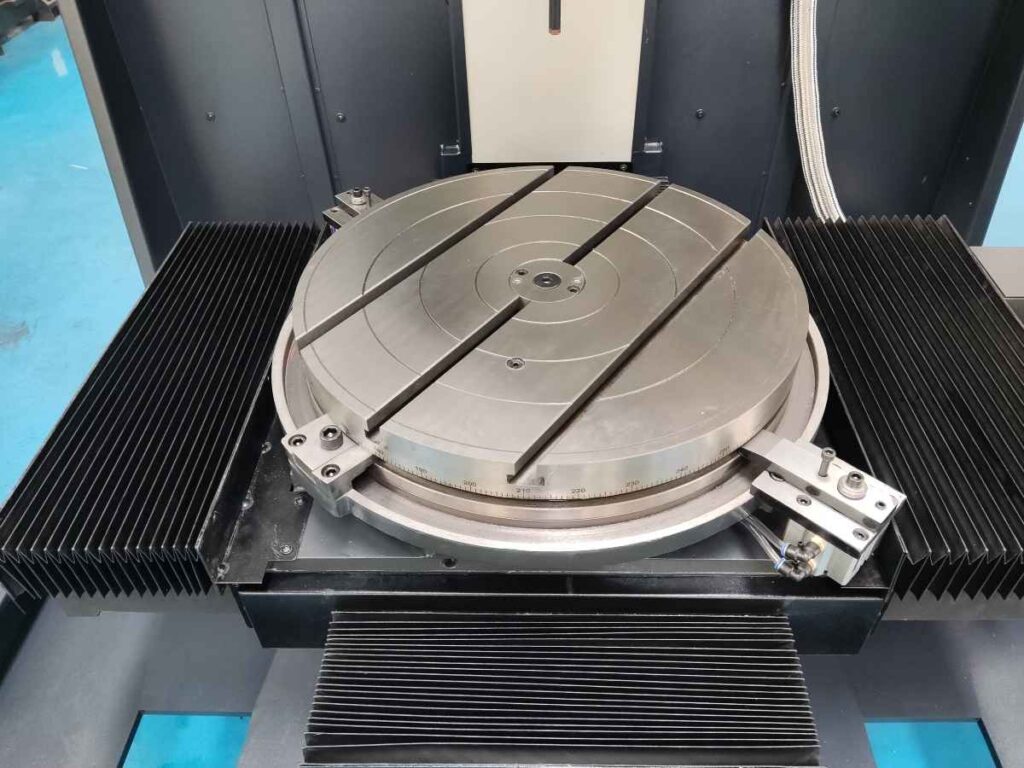

The CNC slotting machine is designed to move the vertical ram up and down to cut into the workpiece. A computer drives this machine. Its usage is broad and diverse, ranging from simple to highly complex tasks, including the milling of surfaces and the formation of keyways.
Quality Management System Certified
European Conformity Standards
Smart Manufacturing Certified
Comprehensive Coverage Included

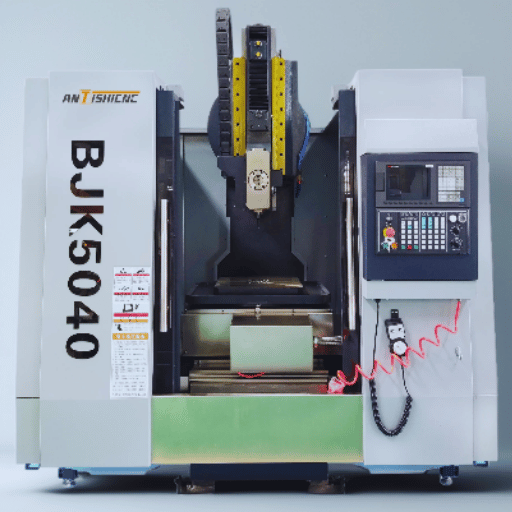

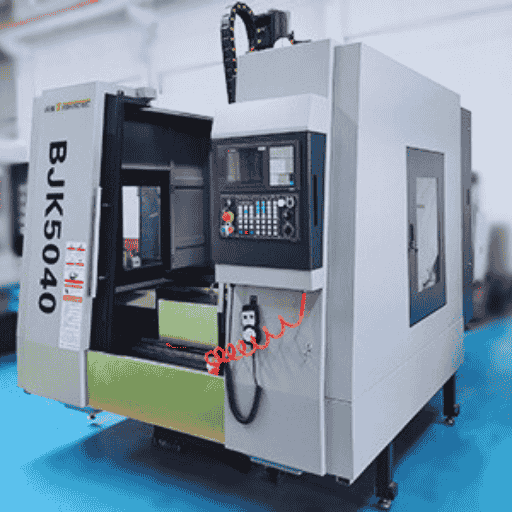

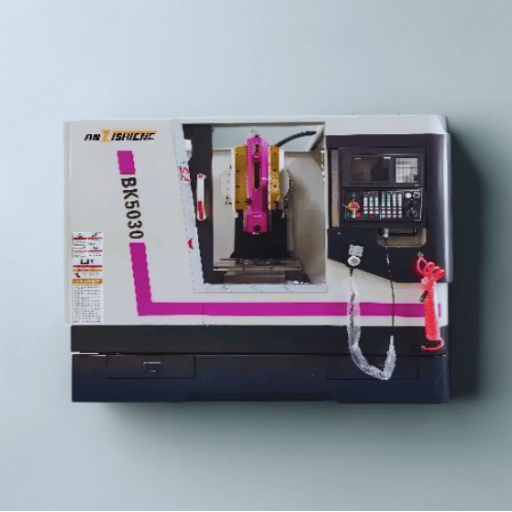

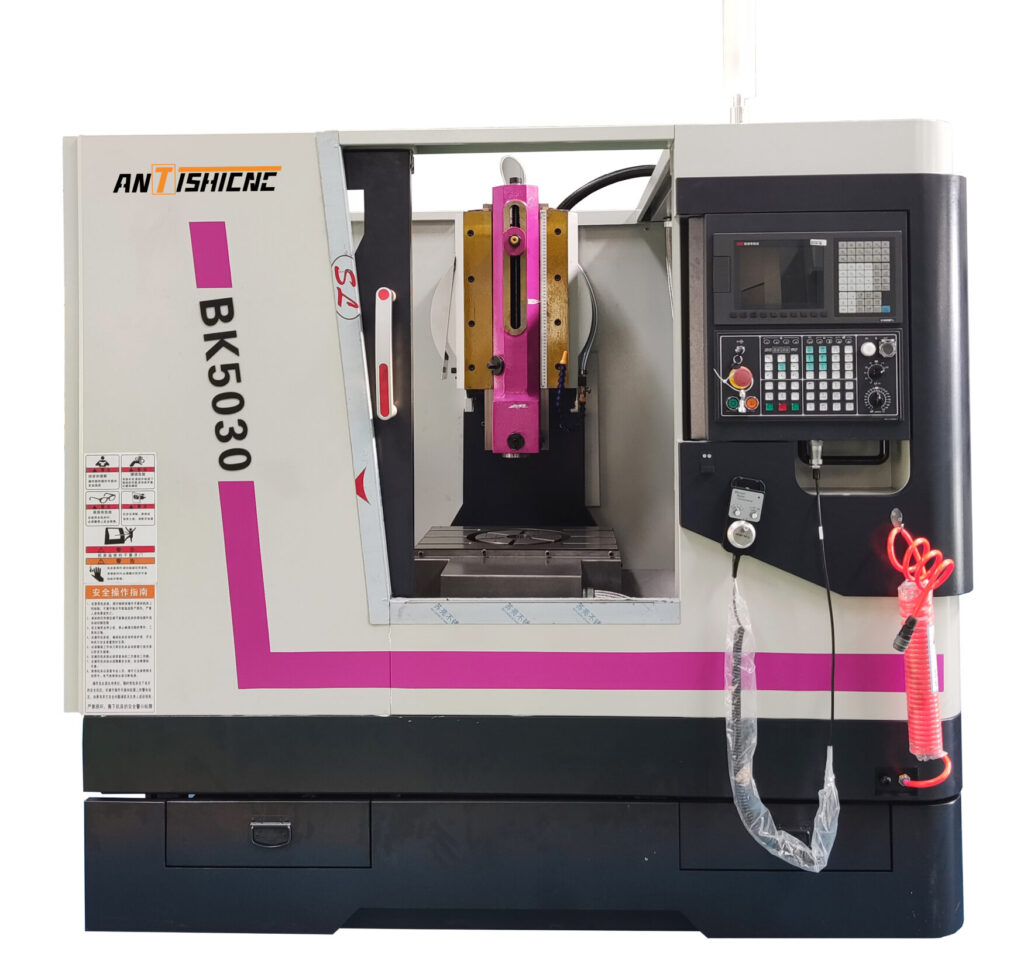

| Model | BK5030 | BK5035 | BJK5040 |
|---|---|---|---|
