Unrivaled accuracy, productivity, and trustworthiness for your manufacturing needs, delivered through comprehensive, cutting-edge CNC grinding solutions.
Get in touch with ANTISHICNC company
Tool and Cutter Grinder Equipment
Top Tool and Cutter Grinder Equipment Manufacturers and Supplier in China
- Universal Tool and Cutter Grinder
- CNC Tool and Cutter Grinder Available
Professional Tool and Cutter Grinder Equipment
- To enhance and extend the lifespan of cutting tools through precise sharpening and grinding.
- To uphold operational productivity and efficiency for drill bits, milling cutters, and other tool bits.
- Facilitates high-accuracy machining for intricate shapes with diverse materials.
Annual Growth Rate
0
%
Precision Accuracy
0
%
Automotive Market Share
0
%
Manufacturing Challenges We Solve
Resolve vital manufacturing concerns with our precise grinding solutions.
Tool Wear & Breakage
Achieve up to 30 times longer tool life through precision reconditioning and optimized cutting-edge geometry.
Production Downtime
Minimize manufacturing idle time through on-location tool refurbishment and automated grinding capabilities.
Surface Finish Quality
Through appropriate wheel choice, clearance angles, and grinding parameters, chatter, burn marks, and poor surface finish can be eliminated.
Material Compatibility
Work with extremely hard and exotic materials such as ceramics, high-temperature alloys, PCD, CBN, and carbide.
Key Features of Our Tool Grinding Machine
Designed for precision, efficiency, and dependability in contemporary manufacturing settings, CNC tool and cutter grinders are state-of-the-art machinery.
5-Axis CNC Precision
For the most intricate components, advanced 5-axis simultaneous motion design obtains a precision of 0.1 μm with a tolerance of less than 5 micrometers (0.0002 inches).
In-Machine Measurement
Automatic in-machine tool measurement and compensation employing touch-probe or laser technologies guarantees consistent quality.
Universal Tool Compatibility
Versatile in the grinding of drills, end mills, reamers, taps, gear tools, precision medical tools, and bespoke cutting tools fabricated from HSS and carbide materials.

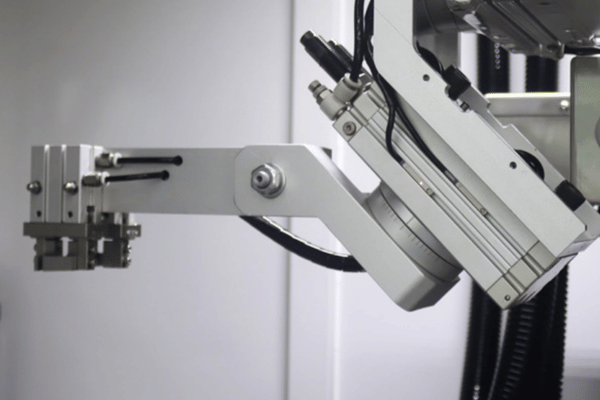

Automatic Tool Loading
With automatic tool loading and support for multiple grinding wheels, high levels of automation, and achieving long periods of unmanned production are possible.
3D Simulation Software
Sophisticated CNC software featuring 3D simulation, collision monitoring, and CAD/CAM integration for enhanced simulation of the grinding process.
High-Speed Performance
Vibration-free operation is ensured through precision ABEC 7 angular contact ball bearing spindles with a maximum speed operation of 3450 RPM.
Best Tool and Cutter Grinder for Sale
🛠️ Visit us today for high-value sales and high-quality cutter grinders.

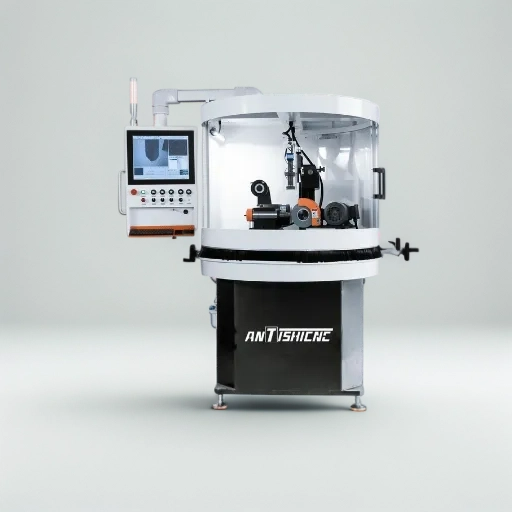

Diamond Grinding Wheel Dressing Machine
Optimal performance of diamond and CBN grinding wheels is maintained and reshaped using the Diamond Grinding Wheel Dressing Machine.
$22000 - $27400/ Per Piece

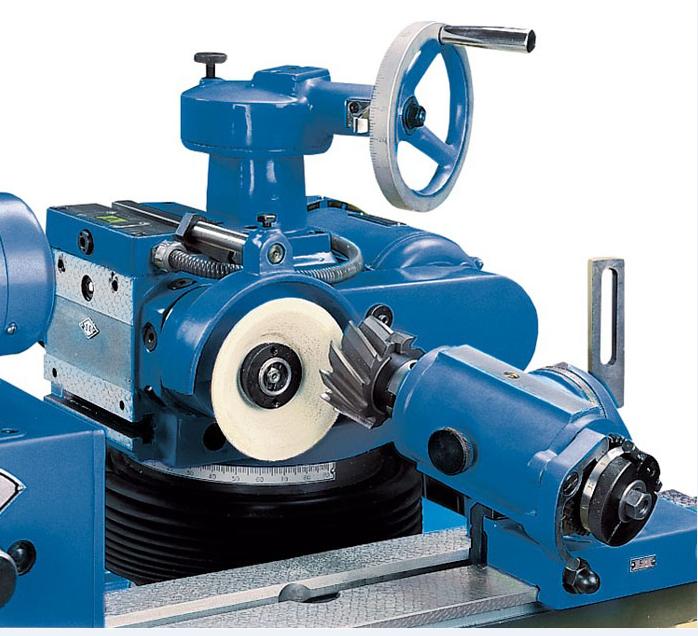

Universal Tool and Cutter Grinder
Universal Tool and Cutter Grinders are designed to sharpen and grind a wide range of tools, including drill bits and tool bits. They provide high accuracy and reliability in operation, which every workshop requires.
$20000 - $27000/ Per Piece

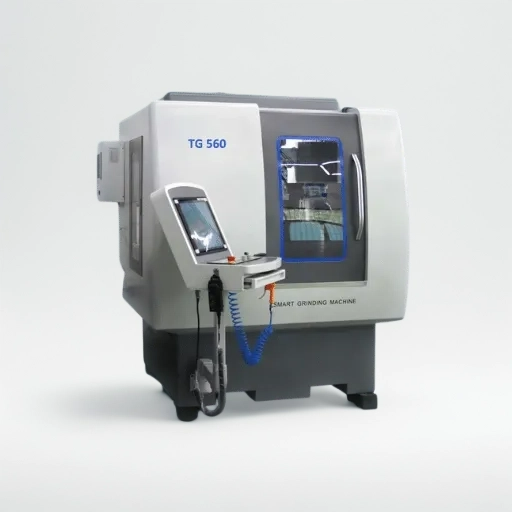

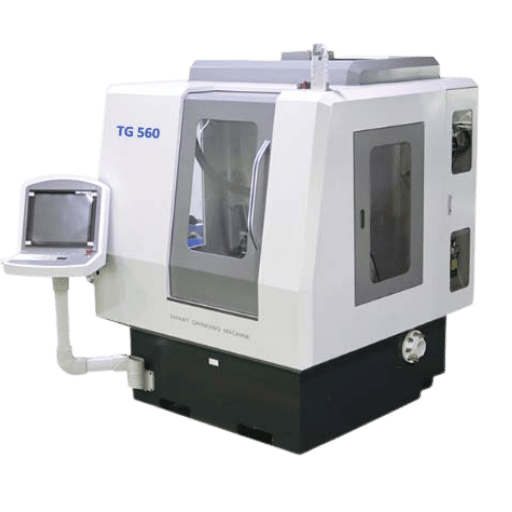

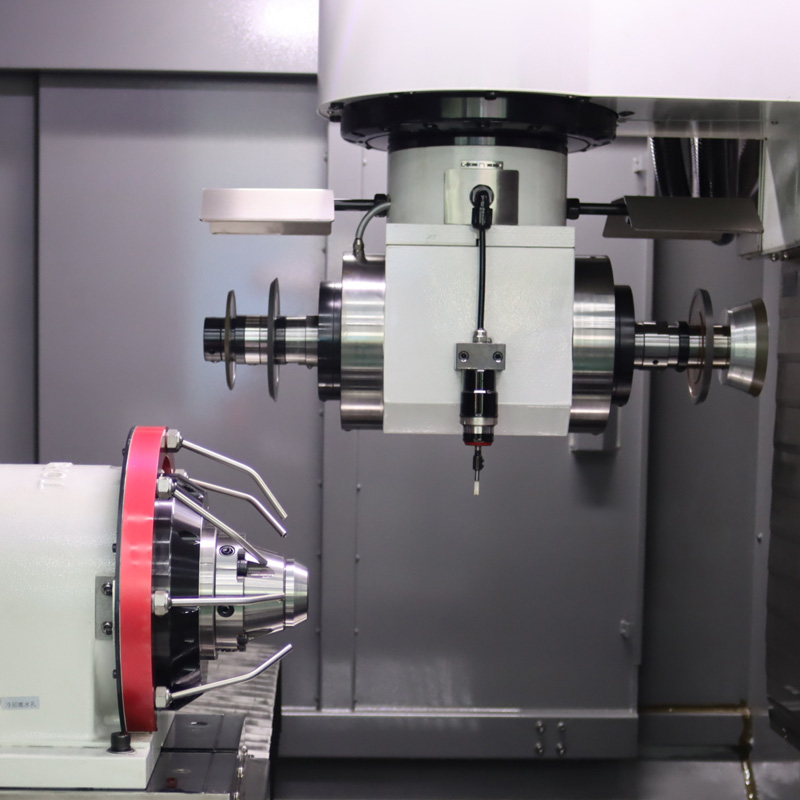

CNC Tool and Cutter Grinder
The CNC Tool and Cutter Grinder is used for sharpening, reshaping and manufacturing cutting tools which include end mills, drills and reamers. Thanks to advanced CNC control and multi-axis capabilities, precision is exceptional.
$25000 - $129500/ Per Piece
Understanding the Tool and Cutter Grinder

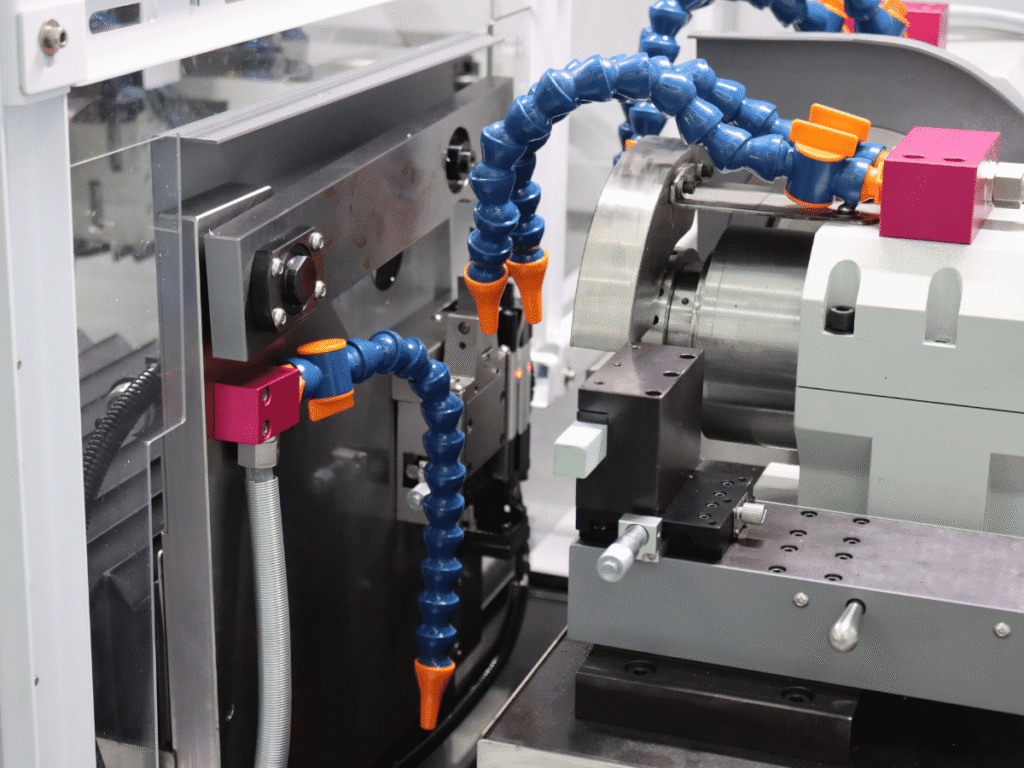

Tool and Cutter Grinding Machine Parts
The wheel head, spindle, workhead, and tool post are all part of a tool and cutter grinder. These components зрават and operate to grasp and control a tool to be grinded during a grinding process.

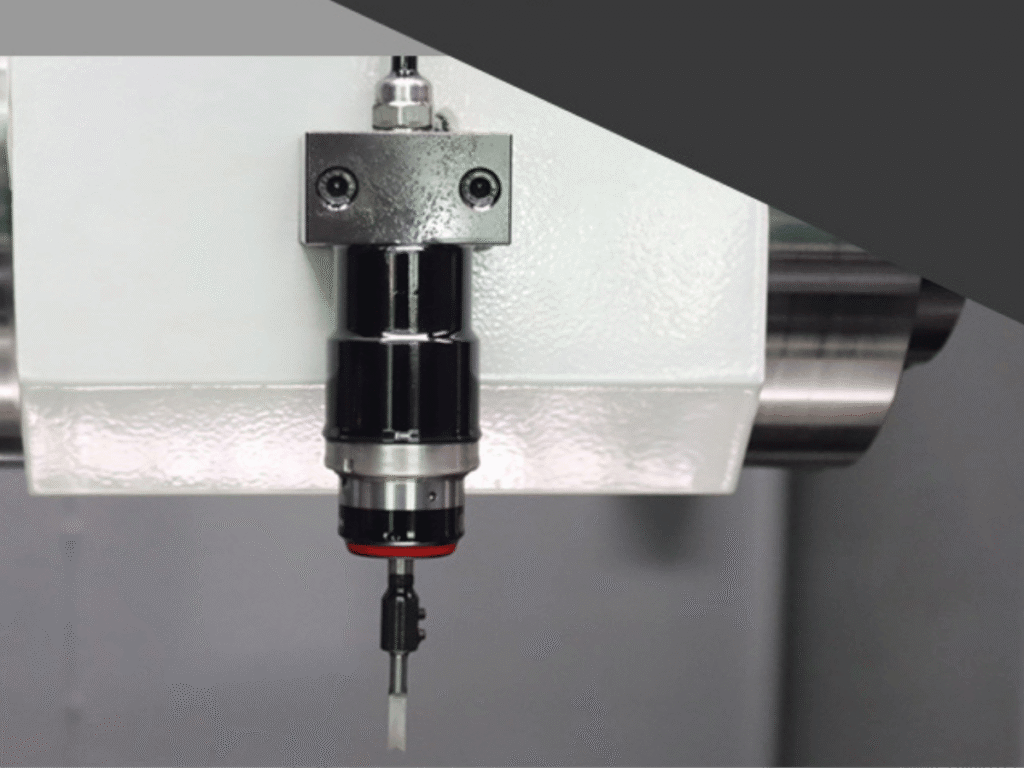

Tool and Cutter Grinding Machine Working Principle
- A Tool and Cutter Grinding Machine operates based on the fundamental principle of precision grinding, used to refine and reshape the cutting tools.
- Each cutting tool is attached and held in a fixture that positions and orients it at the proper angle for accurate grinding.
- Tool surfaces are sharpened or reshaped with the aid of grinding wheels.
- Tool and application-specific geometries and angles are easy to achieve.

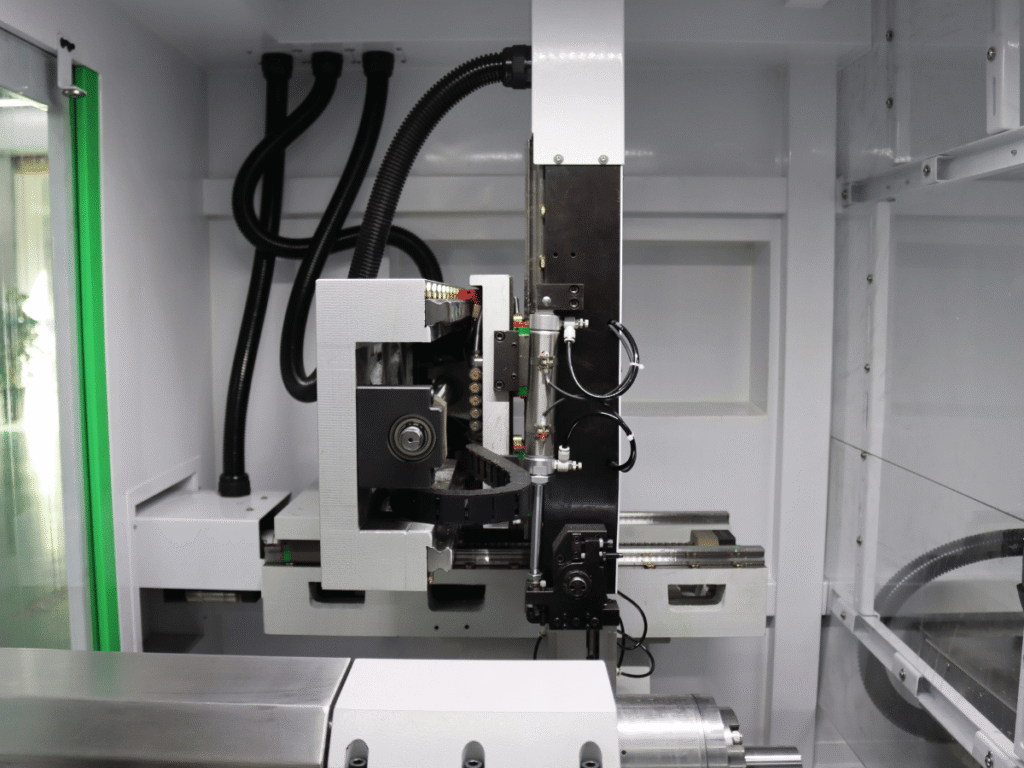

Advantages of Multi-axis Machines
Multi-axis machines enhance the freedom of operations by performing complex grinding operations. They allow advanced productivity and precision by enhancing the intricate shapes and profiles that would otherwise be impossible to achieve with the tool and cutter standard grinders.

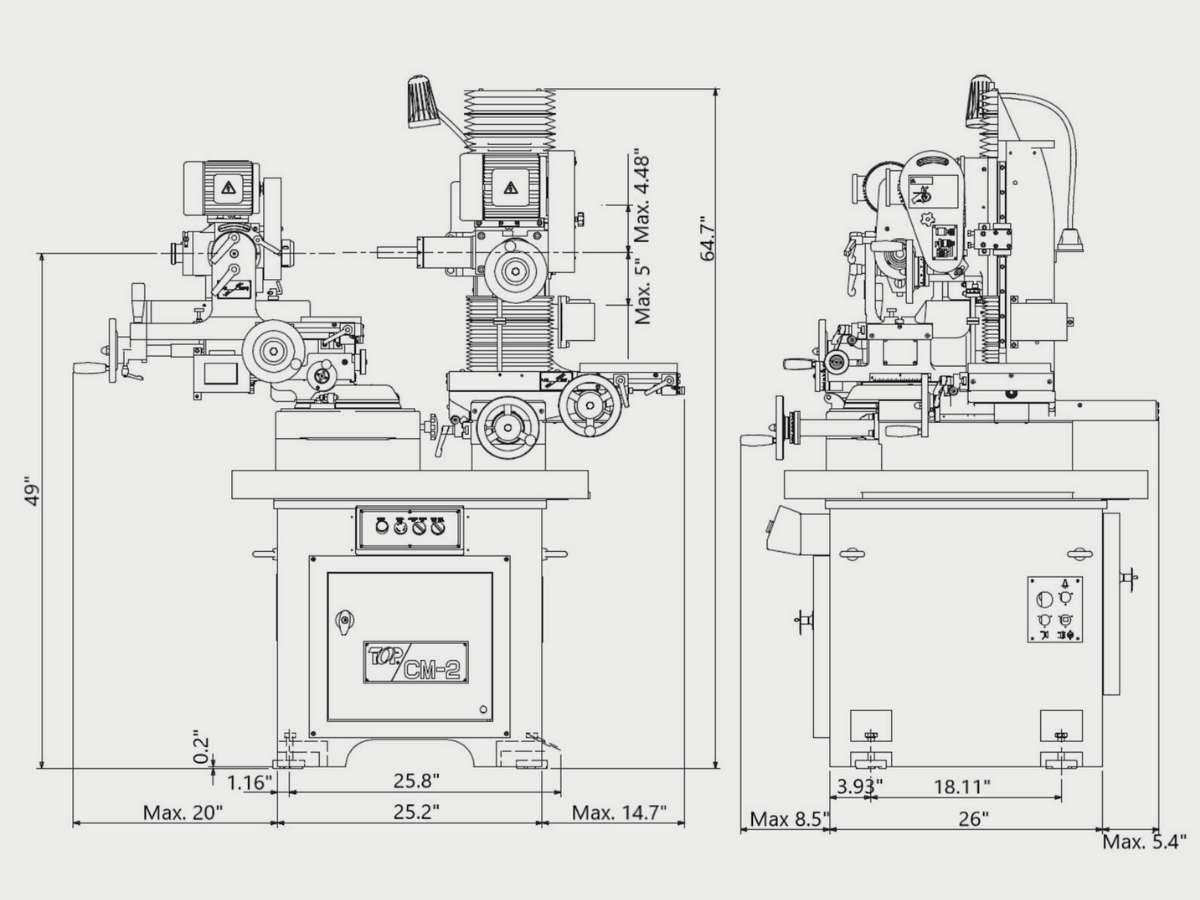

Tool and Cutter Grinder Machine Diagram
Tool and Cutter Grinder Machine Specification
| Specification | Standard Model | CNC 5-Axis Model | Universal Model |
|---|---|---|---|
| Motor Power | 1.5 HP (1.1 kW) | 3-5 HP (2.2-3.7 kW) | 2 HP (1.5 kW) |
| Spindle Speed | 3450 RPM | Variable 0-6000 RPM | Variable 0-3600 RPM |
| Grinding Wheel Size | 6" x 1" (150 x 25mm) | 200-350mm diameter | 100-250mm diameter |
| Maximum Tool Diameter | 25mm | 200mm | 50mm |
| Precision Tolerance | ±0.001" (±0.025mm) | ±0.0002" (±0.005mm) | ±0.0005" (±0.013mm) |
| Control System | Manual | NUM Flexium+ CNC | Semi-automatic |
| Tool Holding | R8/5C Collets | BT50/HSK-50C | MT3/5C Collets |
| Table Swivel | ±120° | ±360° continuous | ±180° |
| Clearance Angle Range | 0-45° | 0-90° | 0-52° |
| Weight | 510 lbs (230 kg) | 2000-3000 lbs (900-1360 kg) | 800 lbs (363 kg) |
| Power Requirements | 110V/220V Single Phase | 380V/440V Three Phase | 220V/440V Three Phase |
| Coolant System | Gravity Feed | High-Pressure Flood | Programmable Flow |
Industries We Serve
Common Applications for Tool and Cutter Grinder Machine
Why Choose Our Tool and Cutter Grinder
- 24/7 Support: A technical support team is always on standby to assist with troubleshooting and maintenance guidance.
- Cost-Effective Solutions: Flexible financing options with the industry’s fastest ROI. Typical payback period of 6 to 12 months.
- Upgrade Path: Allows keeping equipment up to date with the latest technology and future-proof designs.
What Our Client Says
Genuine testimonials from specialists who rely on our tool and cutter grinding solutions.
“The ANTISHICNC CNC grinder has transformed our production of aerospace components. The sub-micrometer precision granted is ideal for our critical applications.”
James Mitchell
Production Manager, AeroTech Industries
"An effortless function and dependability in operation. Using ANTISHICNC Equipment boosted our productivity by forty percent. We were able to achieve the ROI in a mere eight months.”
Sarah Kim
Operations Director, Precision Manufacturing Co.

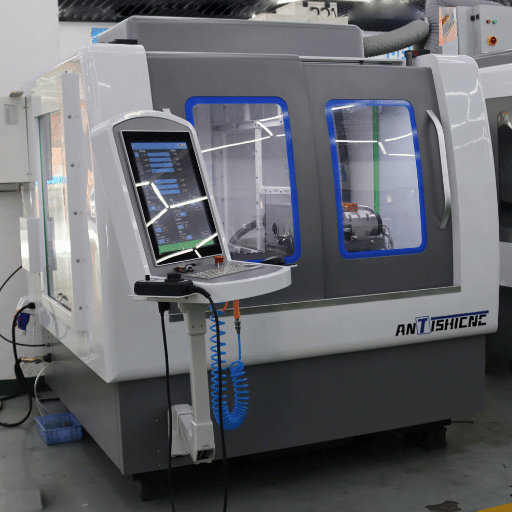

Expert Guides to Industrial Tool and Cutter Grinder Equipment
Related Equipments Provided By ANTISHICNC Company
Latest Blog Posts About Cutter Grinder Machine
Cutter grinder machines are discussed in detail in our newest blog posts.
Precision being the heartbeat of contemporary machining, and at the energetic centre of achieving it stands a tool and cutter grinder. Developing fine skills can be a valuable asset...
With the versatility and power of an angle grinder, few other tools compare. The well-dressed professional or the careworn do-it-yourself enthusiast can take hold of this dynamic tool and...
Working with various materials in manufacturing, construction, or DIY projects, you must understand the difference between cutting and grinding. Those two seem similar, but they serve different objectives and...
Precision constitutes the paramount characteristic in the modern manufacturing realm; advanced technology stands as the very core to achieve this precision. The CNC Tool Cutter Grinding Machine has been...
Getting a quote for Tool Cutter Grinder
Get in touch with our specialists now for a no-cost consultation and discover how our tool and cutter grinders can address the challenges of precision manufacturing that you face.
Frequently Asked Questions
In what ways is a CNC tool grinder distinct from a manual grinder?
In CNC tool grinders, automation eases the creation of complex shapes, while exacting features that need to be mass-produced. CNC machines have the capacity to perform manual to semi-automated, induction grinding, cylindrical grinding, and even helical operations with a high degree of precision and repeatability, lessening the need for handwork.
Are tool and cutter grinders suitable for sharpening woodworking equipment?
With the right set of attachments, tool and cutter grinders can be successfully employed for woodworking tools sharpening. These grinders can accurately grind the edges of chisels and radiused cutters, thus enhancing their efficiency in woodworking tasks.
What machines can a tool grinder sharpen?
Among the tools that can be sharpened using the tool grinder include milling cutters, tool bits, and even countersinks. Given its flexibility in various shapes, and geometries such as chamfered edges and many flute designs, this equipment is a must have for the machinists.
What is the procedure for setting up a holding fixture on a tool and cutter grinder?
For setting up a holding fixture on a tool and cutter grinder, the first step is to clamp the tool or workpiece onto the fixture and check the alignment with the grinding wheel. Proper alignment during setup is critical for accurate grinding, particularly for cylindrical or helical shapes.
Tool and cutter grinders, are they capable of cylindrical grinding?
Tool and cutter grinders capable of performing cylindrical grinding. These grinders are versatile, as they can be fitted with the right grinding wheels and configurations to grind cylindrical surfaces. Thus, they are a valuable addition to any machining shop.
What is the reason for the cost efficiency of an automatic tool grinder?
Cost efficiency of an automatic tool grinders is enhanced by reduction in labor spending together with their boosted output. These grinders provide a balanced return on investment as they minimize human error, ensure consistent output during the automated grinding cycle, and reduce time. Thus, they are a beneficial investment to businesses with demanding machining workflows.
