Where Efficiency and Accuracy Intersect—Professional-grade slotting solutions with ±0.01mm precision tolerance trusted by manufacturers globally.
Get in touch with ANTISHICNC company
Slotting Machine
Top Slotting Machine Manufacturers and Supplier in China
- Professional Universal Slotting Machine
- CNC Slotting Machine Available
Precision Slotting Machine
- In metalworking, slotting machines are used to make keyways, grooves, and internal slots.
- Linear motions are translated into vertical, horizontal, and depth movements along X, Y, and Z axes. Complementary A, B, C axes introduce rotation, broadening the application to sophisticated shapes.
- In aerospace and automotive sectors, precision slotting optimizes assembly, strengthens durability and performance, and conserves resources.
Units Sold Worldwide
0
+
Precision Accuracy
0
%
Countries Served
0
+
Month Warranty
0
.0
Solving Your Manufacturing Challenges
Precision Tolerance Issues
Rejections and increased costs occur due to difficulties experienced in tight tolerances with traditional machining. Our solution: consistent accuracy with ±0.01mm precision and dovetail slides.
Slow Production Cycles
Increased costs stem from slow production cycles caused by manual bottlenecks. Cycle times are reduced by up to 40% with our CNC integration alongside automated tool changers and quick return mechanisms.
High Energy Costs
Profitability is hurt by high energy costs from outdated hydraulic systems. Our hybrid systems reduce power use by 30%, and electromechanical models increase efficiency by 15-20%.
Frequent Maintenance
Repair work and frequent maintenance increases costs and disrupts production. Centralized lubrication systems reduce maintenance costs by 40% and eliminate 85% of unscheduled downtime with predictive maintenance.
Key Features of Our Slotting Machine
Explore the primary attributes of our slotting machine, tailored for precision, effectiveness, and exceptional accuracy in every machining operation.
Precision Vertical Cutting
Vertical rams with an 80-900mm stroke length offer vertical ram motions for keyways, grooves, and bores with an accuracy of ±0.01mm.
Heavy-Duty Construction
Vibration-free operation and enduring reliability to sustain industrial atmospheres is cemented with the rigid cast iron base and column construction.
High-Speed Performance
Cutting performance is maintained with vertical energy-efficient motors and a quick return mechanism set to 17-140 strokes/min.
Advanced Automation
Better quality control and less operator dependence are achieved with set feeds, programmable-controlled operations, as well as hydraulic systems.
Advanced Safety Features
- Machine Safety: Emergency stops, interlocked guards, and Category 4 safety systems
- Operator Protection: Safety light curtains, two-hand operation, and implemented ergonomic considerations
- Environmental Safety: Noise reduction (<75 dB), coolant recycling, and chip containment
- Compliance: Documented safety certification in compliance with OSHA, CE, CSA standards
Environmental Responsibility
- Energy Efficiency: Utilization of variable speed drives, energy recovery systems, and LED lighting
- Waste Reduction: Advanced cutting pattern techniques, reel chip recycling, and coolant reclamation systems
- Sustainable Manufacturing: Components are recyclable, and have a long service life of over 20 years
- Carbon Footprint: Emerging technologies have decreased emissions by 40% compared to conventional machines
Best Slotting Machine for Sale
🛠️ Improve your processes with state-of-the-art machinery. Visit us for the latest machines on offer today!
Universal Slotting Machine
The Universal Slotting Machine is a sophisticated computer numerically controlled machine that offers great precision in cutting keyways, slots, and grooves.
$12000 - $50000/ Per Piece

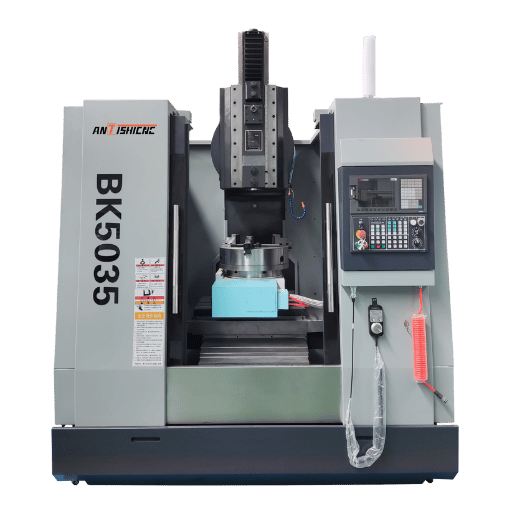

CNC Slotting Machine
The CNC Slotting Machine's sophisticated CNC systems guarantee high precision, efficiency, and multifunctionality, thus making it ideal for the aerospace, automotive, and manufacturing industries.
$12000 - $50000/ Per Piece

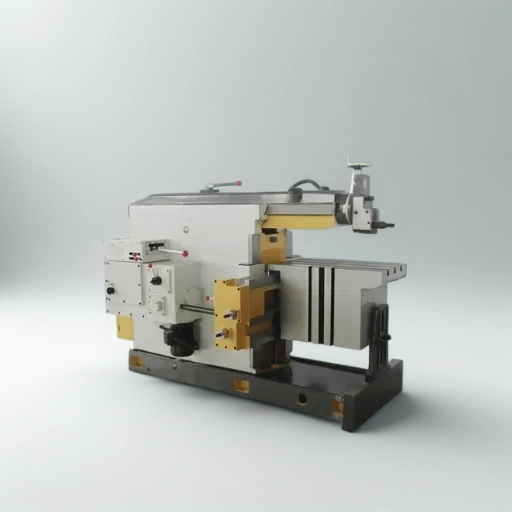

Horizontal Slotting Machine
The Horizontal Slotting Machine's sturdy construction is perfect for accuracy and efficiency, making it suitable for metalworking, kitchen and cutlery production, as well as signage manufacturing industries.
$3900 - $46500/ Per Piece

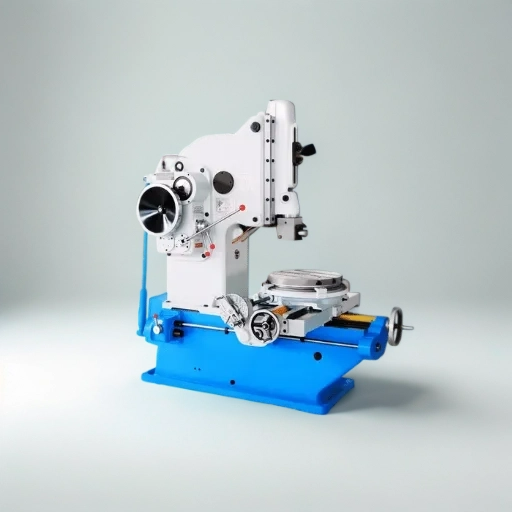

Vertical Slotting Machine
The Vertical Slotting Machine is a specialized piece of equipment used for cutting and slotting keyways and for surface formation. It's a vertical hydraulic feed system, which provides for smooth operation.
$8000 - $12000/ Per Piece

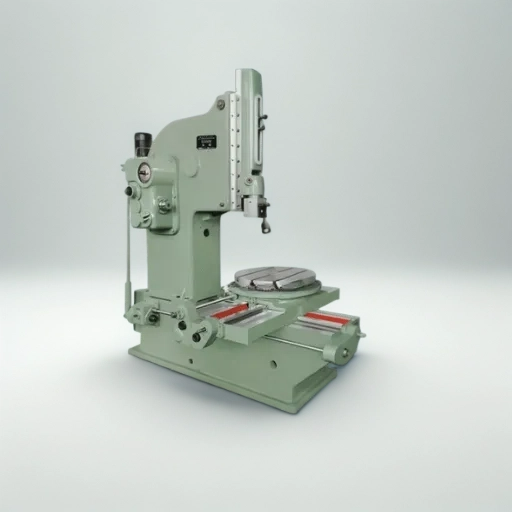

Keyway Slotting Machine
The Keyway Slotting Machine is an advanced precision instrument used to fabricate internal keyways, splines, and grooves in different kinds of materials. It's rugged construction and sophisticated capabilities.
$6000 - $22000/ Per Piece

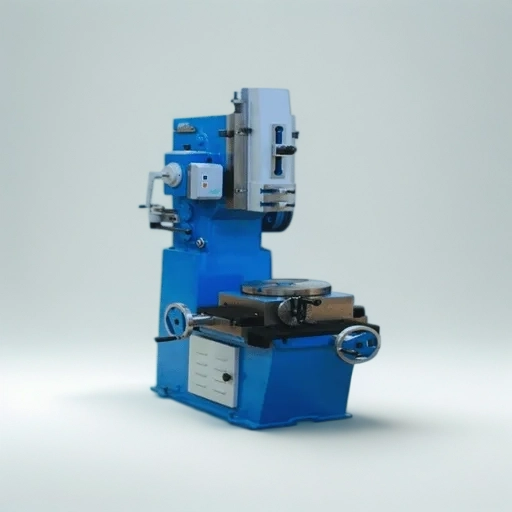

Heavy Duty Slotting Machine
The Heavy Duty Slotting Machines are one of the most precise and durable machines engineered to cater to the needs of the industrial sector, as they can machine keyways, grooves, and even flat surfaces.
$10000 - $150000/ Per Piece
Understanding the Importance of a Slotting Machines
Slotting Machine Working Principle
- A slotting machine is a type of machine tool used to produce a slotted feature on flat surfaces using a cutting tool.
- The machine consists of a rotating tool lift which lifts a cutting tool, rotates it, and moves it up or, downwards to create highly accurate and precise slots on planar surfaces.

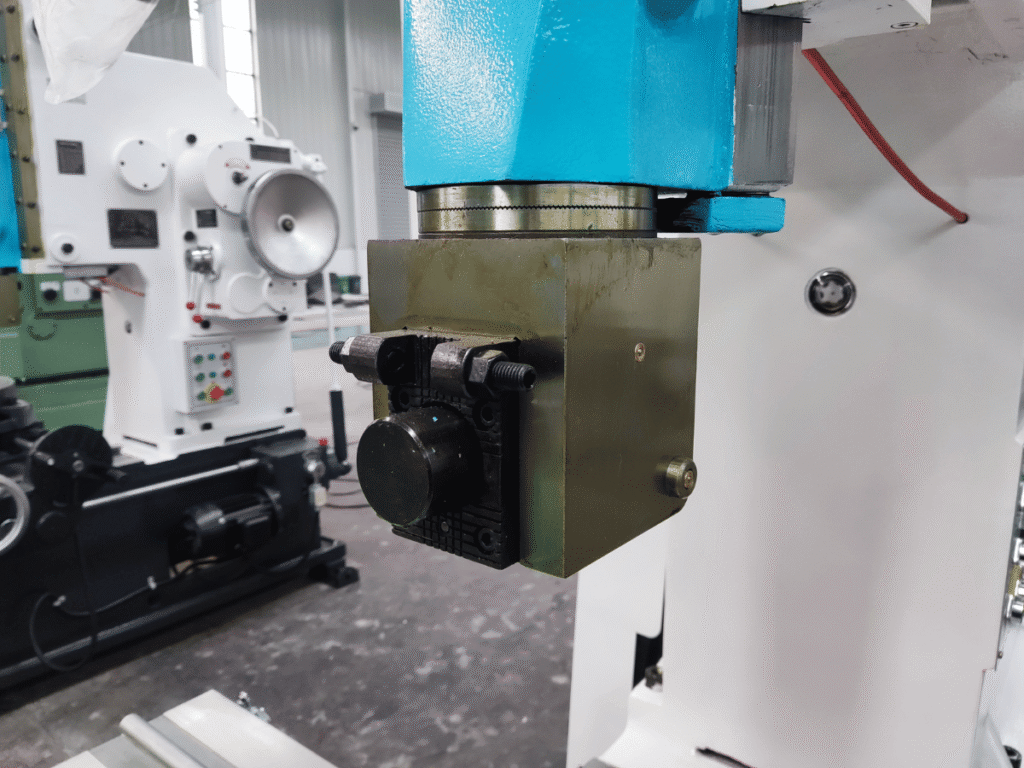

Advantages of Using a CNC Slotting Machine
- CNC slotting machines are known to have merits such as precision and control of the cutting process to improved accuracy.
- With the flow of programmed operations input with control of the axes, more complex and detailed designs and shapes can be programmed with precision.
- This reliability on automation and the reduction of human factors results in a faster output.
- Slotting machines of CNC are best for high-volume operations.

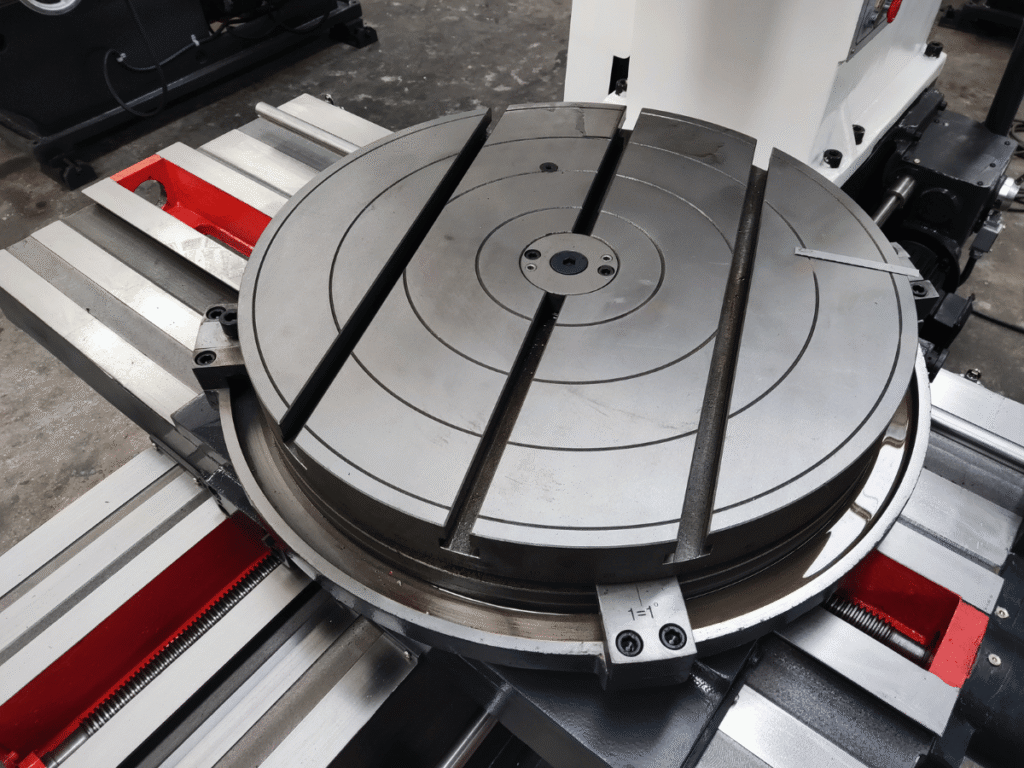

Types of Slotting Machine
- Precision Tool Slotting Machine: Specifically configured for tasks requiring high-caliber cutting and precision.
- Puncher Slotting Machine: Tailored for efficiently executing punching operations.
- Universal Slotting Machine: Has a tilting and rotating table equipped for multipurpose operations.
- Vertical Slotting Machine: Is a reciprocating machine tool akin to a vertical shaper.

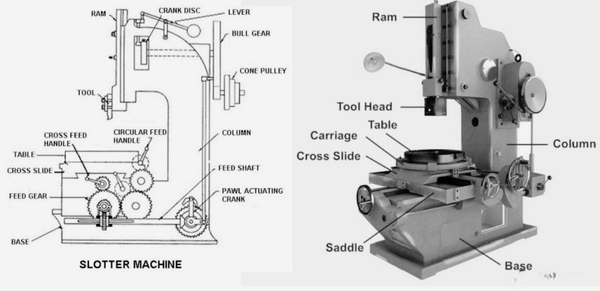

Slotting Machine Diagram
Slotting Machine Specifications
| Specification Category | Standard Model | Professional Model | Industrial Model |
|---|---|---|---|
| Maximum Slot Length | 300mm | 500mm | 1000mm |
| Slot Width Range | 1-20mm | 0.5-50mm | 0.1-100mm |
| Maximum Depth | 50mm | 100mm | 200mm |
| Positioning Accuracy | ±0.01mm | ±0.005mm | ±0.001mm |
| Repeatability | ±0.005mm | ±0.002mm | ±0.001mm |
| Spindle Speed | 50-8,000 RPM | 50-12,000 RPM | 50-24,000 RPM |
| Feed Rate | 1-1,000 mm/min | 1-2,000 mm/min | 1-5,000 mm/min |
| Power Requirements | 5kW / 220V | 10kW / 380V | 20kW / 480V |
Industries We Serve
Applications of Slotting Machine

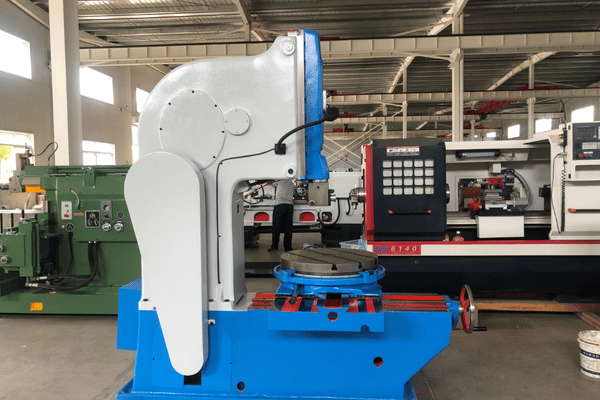

Why Choose Our Automatic Slotting Machine
- Industry Leadership: Over 15 years of achievements in engineering with more than 15,000 units deployed in over 50 countries.
- Proven ROI: Received by customers, 25-40% productivity gains and 30% energy savings were reported within the first 12 months.
- 24/7 Support: Global service network with remote diagnostics streamlines resolution time by 60% with guaranteed parts availability.
What Our Customers Say
Here’s what our customers say about our Slotting Machine
“The improvement in performance is remarkable. We have decreased our keyway machining time by forty percent while enhancing precision. The performance of the hydraulic drive system is exceedingly smooth.”
James Mitchell
Production Manager
“Outstanding Return on Investment (ROI)! The enhancements to CNC integration capabilities have streamlined our production line. Energy usage is now 30% lower relative to our previous hydraulic units.”
Robert Kumar
Operations Director
Expert Guides to Slotting Machine
Related Equipments Provided by ANTISHICNC
Latest Blog Posts about Slotting Machine
Their tips, updates, and everything you need to know about slotting machines, is covered in our latest blogs. So dive-in and stay informed!
What is Slot Milling? Understanding the Milling Technique and Types of Slot Milling Slot milling is the process employed to create precision keyways and grooves in workpieces and is...
Understanding Planer Machines: The Role of 20hp Thickness Planers in Modern Workshops Planer machines are vital fixtures in both woodworking and manufacturing spaces, where they are used to achieve...
Modern slotting machines have revolutionized precision machining with cutting-edge technology, advanced materials, and innovative techniques that deliver superior results across manufacturing industries. Emerging Technologies in Slotting Machines The integration...
Industrial pipe slotting machines are crucial for the pipe slotting processes employed by pipe benders, ironworkers, and other trades for various applications. This blog explores the key features that...
Getting a quote for Slotting Machine
Receive an instant and precise estimate for a premium slotting machine customized to your requirements. Check out the various pricing structures designed to meet your budget and production capabilities, making sure that your business’s needs are fully addressed.
Frequently Asked Questions
Is it possible to apply slotting machines on cast iron machining?
The answer to the question is in the affirmative, since these machines can be effectively used to cast iron machining. Because of the slotting machines heavy and enduring construction, coupled with the high precision and toughness of the machines, they are suitable for hard materials for machining. Because of the adjustable settings, the operators are able to customize these machines so as to sharpen or finish the shape and contour of the workpiece to the desired shape, so as to attain the expected optimal results.
What Is the Stroke Length of Slotting Machines?
The stroke length for slotting machines typically ranges from a few inches to several feet, as most machines are built with a degree of flexibility to adjust to different workpieces, grooves, and machining processes. Different designs and applications of a slotting machine result in some variance of the most common stroke length.
How does the rotational mechanism of a slotting machine work?
The cutting tool of a slotting machines feed rate remains constant. In other words, the circular rotational motion of a slotting machines feedrate is a constant velocity. The stroke is more complex, with a combination of simple circular arc movement coupled with linear grinding, giving greater precision to cutting. The machine’s configuration can be set to a different set of workpieces by changing the angular and ram orientation.
Are slotting machines capable of reversible operations?
Yes, most slotting machines have the provision of reversible operations. This is because the machine is capable of rotating the cutting tool in both directions which enables the machine to make different types of slots and grooves. This function is important in operations requiring several directional cuts.
Which materials is a slotter machine capable of working on?
Slotter machines are capable of working on a variety of materials such as metals, plastics, and composites. The slotting machines are utilized in different industries because the tool lift and the rotation speed are adjustable, which enables effective cutting of hard materials like steel.
What is the impact of making adjustments to a slotting machine?
Proper worktable and cutting tool settings can ensure the produced slots are of good quality and precision. These changes can improve the overall efficiency of the machine in controlling the depth and width of slots.
What is the importance of a worktable in a slotting machine?
In the slotting machine, the worktable is important as it holds the workpiece in place during the slotting operation. It provides alignment and is linearly adjustable in several directions, increasing the machine’s range of making slots at different angles and depths. Having a rigid one increases the worktable’s functionality, work efficiency and work accuracy.
What are the primary aspects to focus on while choosing a high-precision slotter machine?
When choosing high-precision slotter machines, the stiffness, longevity, and flexibility of the machine are critical aspects regarding concern. It is preferable to choose machines that have modern controls that can set the stroke length and the cutting speed. Some machines are also capable of working on a broad assortment of materials; therefore, make sure that the machine you choose can work on metals and cast iron and can perform both internal and external cutting work.
