Radial drills contributed significantly to some of the engineering advancements. They are well-designed to provide superior accuracy with utmost flexibility, making them imperative in both industrial and workshop activities. Given their aptitude to deal with large and heavy work-pieces, they easen the procedure and productivity of various machining processes.
Manual drilling operations give inconsistent results, at times tolerance failures.
Conventional drills cannot reach multiple drilling points on big workpieces.
Complex drilling patterns require various set-ups and repositioning.
Highly skilled operators are required for repetitive and time-consuming tasks.

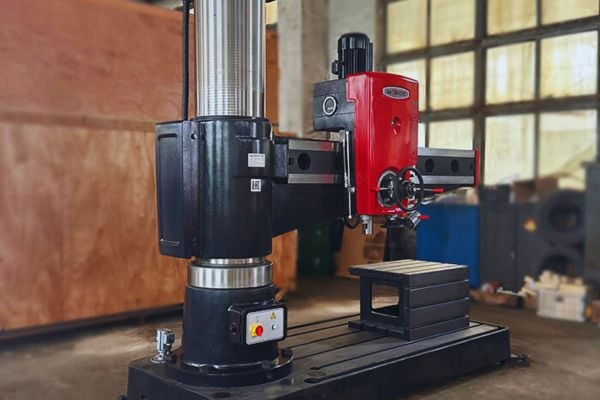

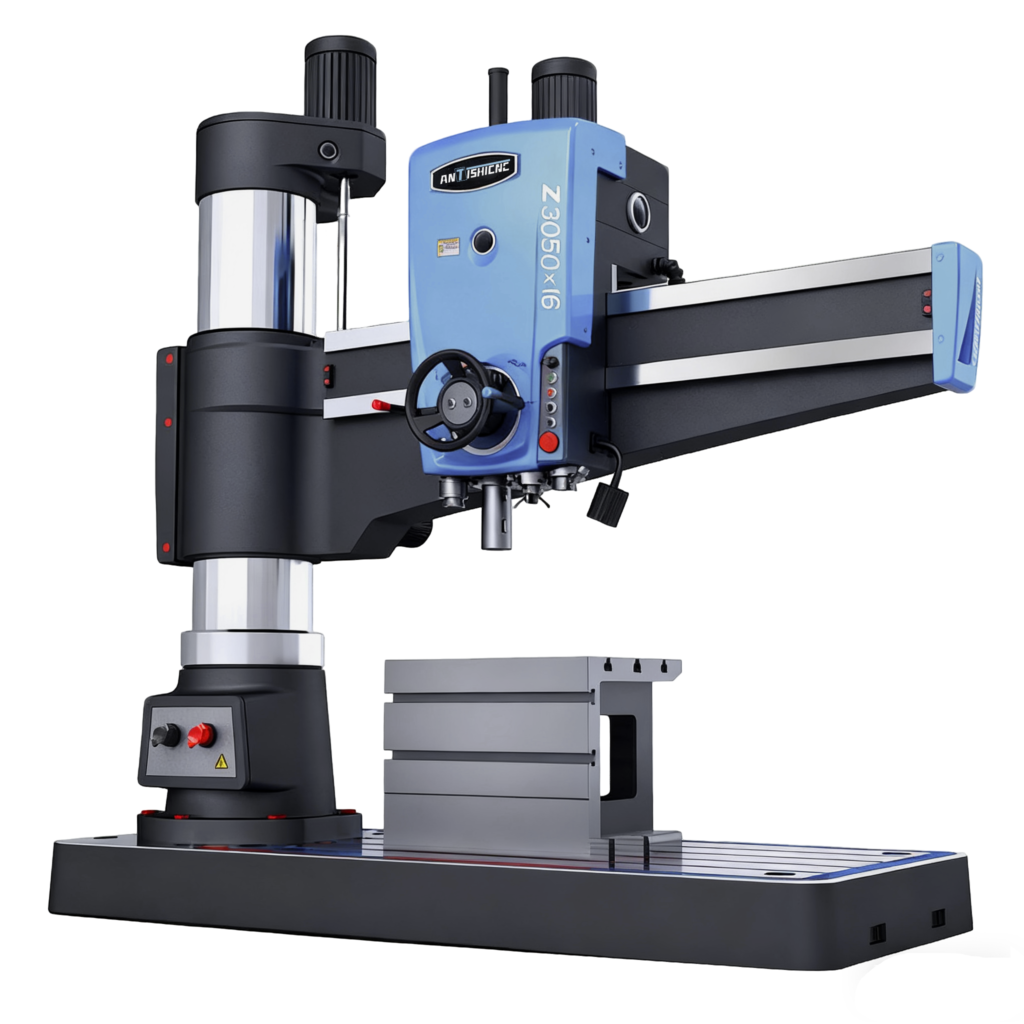

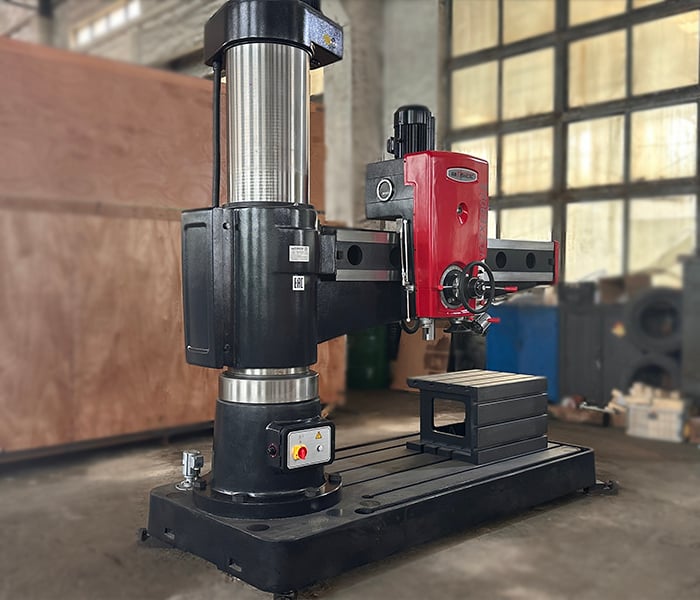

Discover our radial drilling machine with precision engineering, sturdily constructed, and driver-friendly for efficient and effective drilling.
Allows exact height adaptation and direction of travel for the multitude of all drilling from different angles.
Its designs give all those heavy loads of strength, rigidity, and wear-resistance with the wall cast iron put in high grade.

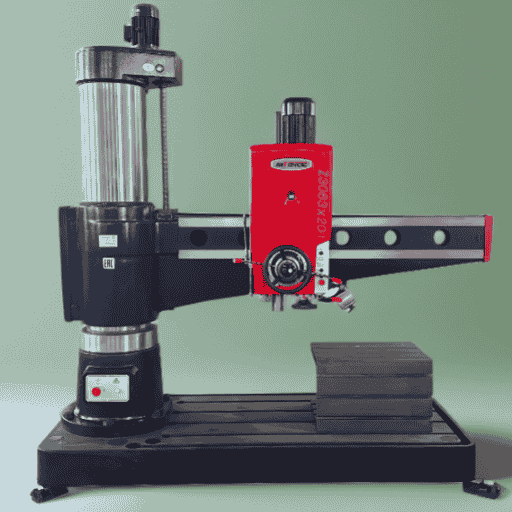

Both kinds are available, with hydraulic models ensuring more clamping power and ease-of-use.
A 16-speed steel spindle ensures safe and precise working with a number of safety mechanisms, including automatic locking, to safeguard the operator.
Advanced Computer Numerical Control systems for automated operations and enhanced productivity with minimal human intervention.
Complete rotation of the radial arm with vertical adjustment capability to allow drilling at any angle and position without repositioning the workpiece.
Perform drilling, boring, tapping, reaming, countersinking, counterboring, and spot-facing operations in a single setup.
Comprehensive safety features include enclosed guarding, emergency stops, and automatic dry-cycle control for safer operation.
High-end radial drilling machine ensures both precision and versatility, with applications for a wide range of industrial needs.
A radial drilling machine is a highly specialized and versatile type of drill press, primarily used for precision drilling operations. It is well-suited for medium to large, heavy workpieces. The distinctive feature of the radial drill is that the spindle is mounted on a radial arm, which can be adjusted and moved to different positions at any angle for drilling. This allows the workpiece to remain stationary, eliminating the need to move it for drilling. It is a highly flexible piece of equipment, ideally suited for use where precision and speed are required, typically in the manufacturing, building, and metalworking industries.

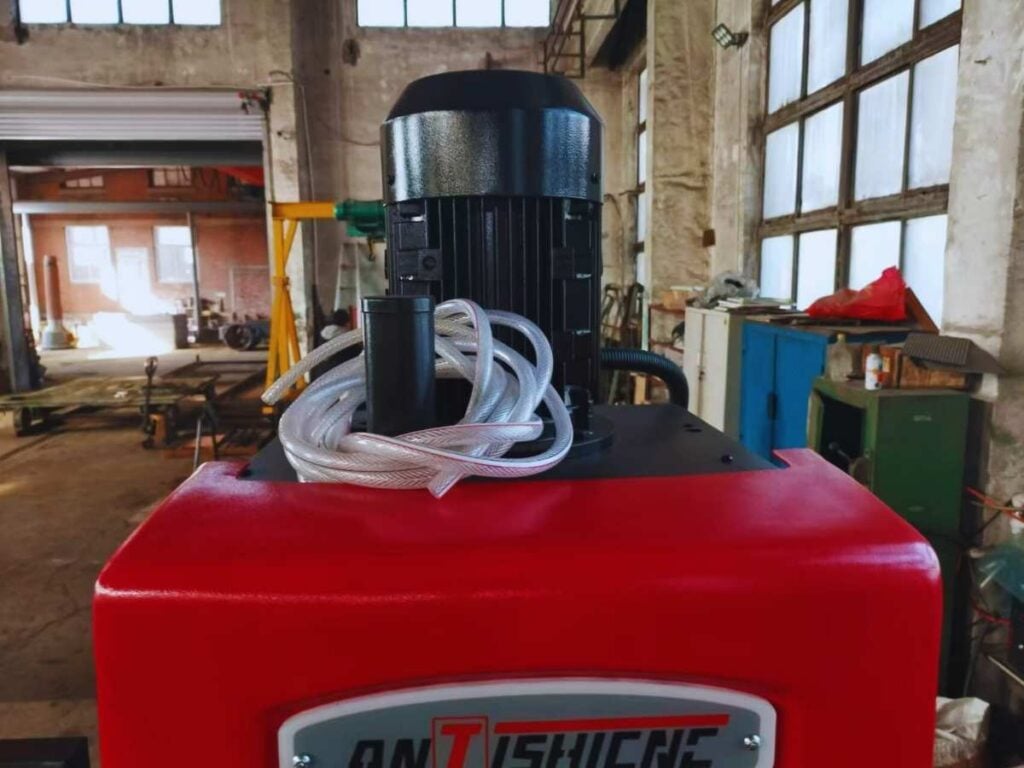

The radial drilling machine should be maintained by cleaning it regularly, as dirt, dust, and oil can affect its operation. Lubricate all moving parts to reduce friction and ensure smooth operation. Inspect for wear and tear, such as loose bolts, worn gears, or damaged components, periodically, and replace parts as necessary to prevent more significant issues. Follow the manufacturer’s instructions for correct operation, and avoid placing excessive strain on the machine to prevent unnecessary wear and tear.
Innovative problem-solving
Exceptional Excellence
All-encompassing assistance
Worldwide reach
| Specification | Standard Model | CNC Model | Heavy Duty Model |
|---|---|---|---|
| Drilling Capacity (Steel) | 40mm | 50mm | 100mm |
| Spindle Speed Range | 50-1500 rpm | 50-2000 rpm | 25-1200 rpm |
| Spindle Feed Rate | 0.1-0.4 mm/rev | 0.08-0.5 mm/rev | 0.05-0.3 mm/rev |
| Radial Arm Length | 1200mm | 1500mm | 2000mm |
| Spindle Travel | 200mm | 240mm | 300mm |
| Vertical Travel | 300mm | 400mm | 500mm |
| Spindle Motor Power | 1.5kW | 2.2kW | 3.7kW |
| Worktable Size | 800 x 400mm | 1200 x 505mm | 1600 x 800mm |
| Machine Weight | 1,200kg | 1,800kg | 3,500kg |
| Control System | Manual | Advanced CNC | CNC + Automation |
Here's what our customers say about our Radial Drilling Machine
Discover expert tips, insights, and the latest advancements in radial drilling machines to elevate your projects. Stay updated with the blog!

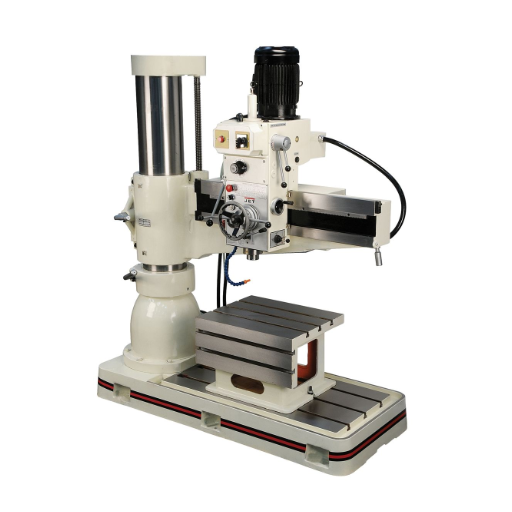

Being an extremely versatile and essential manufacturing tool, a radial drill press can perform just about any type of drilling operation efficiently and precisely. It is unique in that...
Key Takeaway: A radial drilling machine is considered an essential machine in manufacturing and engineering due to its versatility and precision. This comprehensive guide explores the mechanics, working principles,...

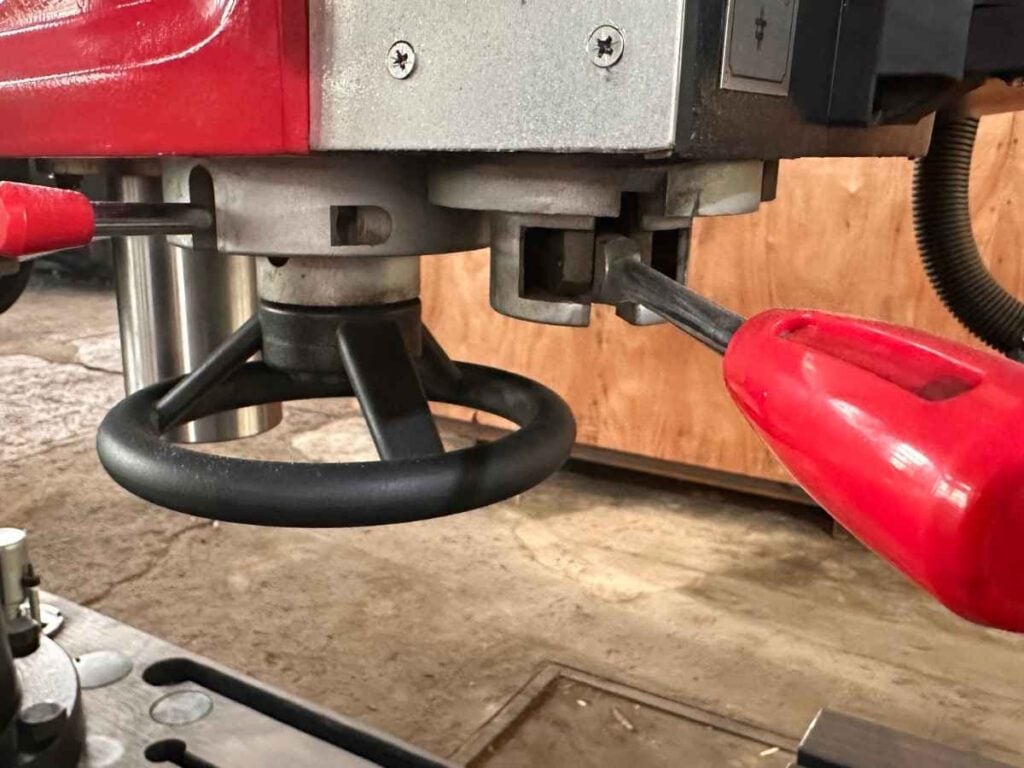

Radial drill machines offer a tool with precision, efficiency, and versatility into manufacturing operations, revolutionizing the way various tasks are performed. These machines take away all kinds of basic...
Radial drilling machines are regarded as highly versatile and techno-functional machines, widely accepted in the manufacturing and machining. Working on drilling holes in hard materials, or just holding up...
Advance your capability in machining with our advanced radial drill machines. Contact us to have our experts recommend a model that meets your requirements.
A: Drilling capacity of a radial drilling machine means the max hole diameter that can be drilled on a work piece. Usually, such machines can drill holes in heavy and strong materials and serve metal fabrication purposes well.
A: The radial drill machine possesses a casting and a vertical column combined with an adjustable arm so that holes can be drilled at different angles and positions without actually having to shift the work piece. On the other hand, the standard drill press would normally require the work piece to be shifted into different drilling positions.
A: Radial drills are efficient and versatile machines used for various applications such as hole spot-facing, counter boring, and drilling large holes in heavy-duty materials. These machines offer flexibility to the machinists by allowing repositioning of the spindle box as well as the head slides.
A: When choosing a cutting tool for a radial drill, consider the material of the work piece, drilling capacity required, and types of holes you have to make. Standard drill bits, countersink tools, or specialized milling cutters can be chosen according to requirements.
A: The spindle return of a radial drilling machine retracts the spindle automatically after the drilling operation is completed. This helps reduce cycle time and decreases manual intervention from the machinist, thus increasing productivity.
A: Yes, radial drill machines are perfect for shaft drilling and large gear working. Their design gives them the ability to position the drill bit accurately, thus ensuring good drilling results even through heavy-grade and strong materials.
A: The MT3 taper represents a standard size for the spindles of many radial drilling machines, which implies that a drill bit or cutting tool of any sort can be used with it. This allows machinists to easily switch from one tool to another depending on the needs of the application.
A: A power feed allows a drill bit to be moved into a work piece with a certain set rate, which maintains an even drilling depth and partly reduced operator fatigue. A power feed is very useful when dealing with large, heavy materials and would ensure the smooth working of the machine.
A: Because RD-750 radial drill machine is sturdily built and is said to have high drilling capacity, it enjoys its popularity. Having a huge size of gear head and adjustable radial arm allows it to drill in different positions, thereby posing as a highly useful machine in practical workshops across industries.
A: Radial drill machines find their applications in industries such as manufacturing, automobile, aerospace, and construction. They are needed in those industries to do heavy-duty works and to drill into hard materials with precision.
