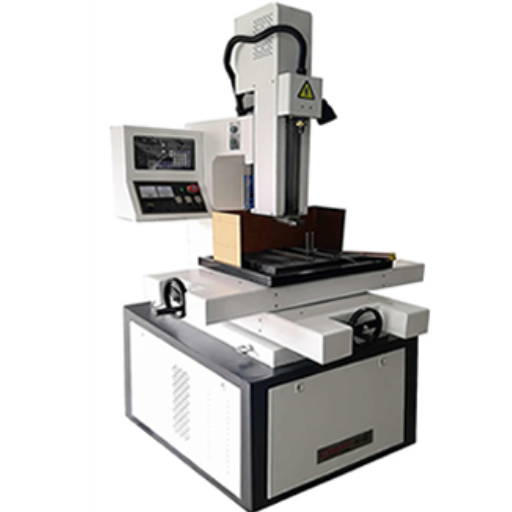

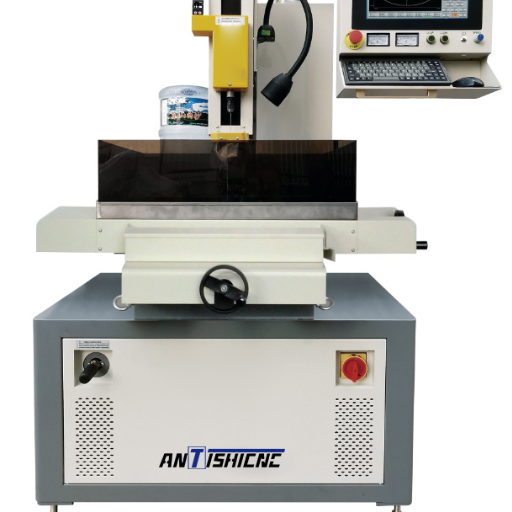

Manufactured by leading Chinese suppliers ANTISHICNC, it offers simple operation, no installation requirements, and advanced performance for demanding tasks.The MS-DC430C EDM Drilling Machine is a high-performance solution for precision micro-hole drilling.
Efficient Electrode Usage: The travel of the Z-axis can go up to a range of 380mm to support electrodes of length up to 500 mm in order to minimize consumption and make the process efficient with low-consumption circuits.
High-Speed Z-Axis Movement:Designed with hybrid servo motors, the Z-axis travels to full length in 10 seconds, so that waiting time is cut down and the productivity enhanced.
Patented Swivel Head Design: Featuring an integrated swivel head comprising tungsten steel wear plate, multilayer waterproof structure, and taper sleeve connection ensuring accurate rotational concentricity.
User-Centric Design: In view of hardware details and practical software functions, user experience and operational convenience have been greatly improved.
| NO. | Specifications | MS-DC430C |
|---|---|---|
| 1 | Electrode diameter(mm) | Φ0.3-Φ3.0 |
| 2 | W axis/ Machine head travel(mm) | 250 |
| 3 | Z axis/ Spindle servo travel(mm) | 380 |
| 4 | Max. speed of spindle(mm) | 1500 |
| 5 | Spindle rotation speed(rpm) | 0-200 adjustable |
| 6 | Worktable size(mm) | 440*320 |
| 7 | X*Y travel(mm) | 400*300 |
| 8 | Max distance from guide to working table(mm) | 300 |
| 9 | Max. worktable load(kg) | 300 |
| 10 | Overall dimension of machine(W*L*H) | 1000*1000*2100 |
| 11 | Machine weight(kg) | 750 |
| 12 | Positioning accuracy X,Y(mm) | X.Y≤0.04/300 |
| 13 | Repositioning accuracy XY(mm) | X.Y≤0.04/300 |
| 14 | Max feed speed XY(mm/min) | ≤1000 |
| 15 | Control axes | X、Y、Z three axis |
| 16 | Machining axis | Z axis |
| 17 | Max. working current(A | 30 |
| 18 | Machining speed(mm/min) | 30-60 |
| 19 | Max. input power(KW) | 4.5 |
| 20 | Min. wear of electrode | ≤0.8 |
| 21 | Working liquid supply device | electrical pump |
| 22 | Display axis | Three axes |
| 23 | Capacity(L) | 110 |
| 24 | Filtering | Carbon steel paper filtration system |
| 25 | Quantity of filter | 1 pieces |
| 26 | Material | 304 Stainless steel |
| 27 | N.W.(kg) | 45 |
| 28 | Dimension (W*L*H) | 920*460*800mm |
| No. | Spare parts |
|---|---|
| 1 | X Y Z ball screw |
| 2 | W axis ball screw |
| 3 | X Y Z linear guideway |
| 4 | X Y Z motor |
| 5 | X Y driver |
| 6 | Z drier |
| 7 | W axis motor |
| 8 | Rotation motor |
| 9 | electrical pump |
| 10 | Pneumatic pump |
| 11 | scale |
| 12 | operating system |
| 13 | Circuit breakers, contactors |
| 14 | Allen key |
| 15 | Double-head screwdriver |
| 16 | Specialized electrode scissors |
| 17 | Guide |
| 18 | Guide |
| 19 | Brass electrode tube |
| 20 | Brass electrode tube |
| 21 | Electrode sealing ring |
| 22 | Precision drill chuck |
| 23 | Machine foot |
| 24 | Clean water tank |
| 25 | Dirty water tank |
| 26 | Balance holder |
| 27 | Water baffle |
| 28 | Operation Manual |
