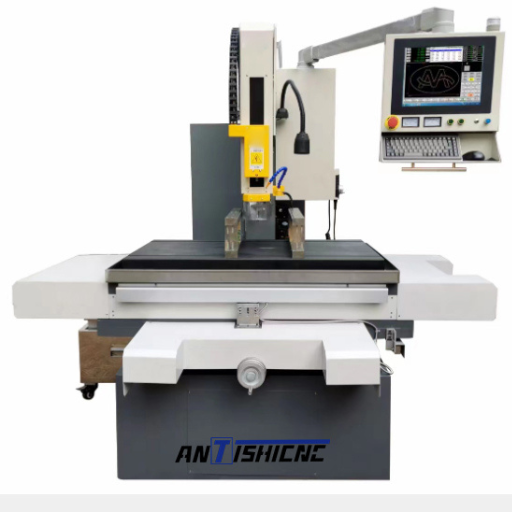

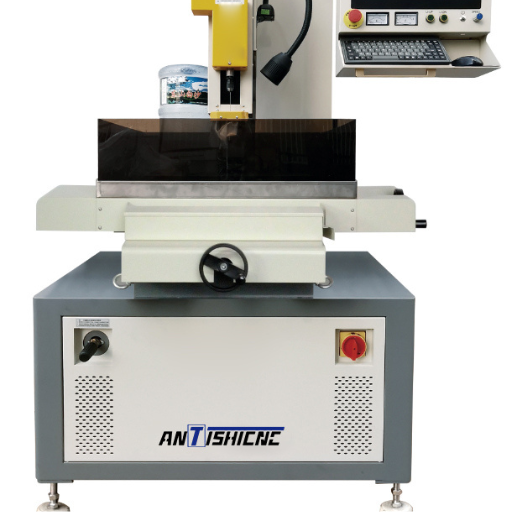

Find in China the best EDM drilling machine manufacturers known for precision and innovative machining technologies. ANTISHICNC deals with the cutting-edge industrial solutions. From an advanced CNC technology, the manufacturers supply high-performance EDM machines and equipment that are made for utmost accuracy, efficiency, and durability.
Advanced Z-Axis Design:Z-axis travel of 380mm supports up to 500mm-long electrodes, minimizing electrode consumption to about 100mm.Equipped with a subdivision drive stepper motor (hybrid servo motor), enabling high-speed movement with full travel completed in just 10 seconds, significantly improving efficiency.
Innovative Swivel Head:Patented integrated swivel head with tungsten steel wear plate and multi-layer waterproof structure.Taper sleeve connection between swivel head and chuck ensures rotational concentricity for precision.
High-Performance CNC Power Supply:Sixth-generation CNC system with "AC" power supply technology ensures high efficiency, ultra-low molybdenum wire loss, and exceptional smoothness during machining.Features strong anti-interference capabilities, eliminating inconsistencies and part scrapping during processing.
| NO. | Specifications | MS-DZ430A |
|---|---|---|
| 1 | Electrode diameter(mm) | Φ0.1-Φ3.0 |
| 2 | W axis/ Machine head travel(mm) | 250 |
| 3 | Z axis/ Spindle servo travel(mm) | 380 |
| 4 | Max. speed of spindle(mm) | 1500 |
| 5 | Spindle rotation speed(rpm) | 0-200 adjustable |
| 6 | Worktable size(mm) | 440*320 |
| 7 | X*Y travel(mm) | 400*300 |
| 8 | Max distance from guide to working table(mm) | 300 |
| 9 | Max. Working current (A) | 30 |
| 10 | Max.input power(KW) | 4.0 |
| 11 | Power supply(V/HZ) | 380/50 |
| 12 | Digital display | 3-axis |
| 13 | Working liquid supply device | Pneumatic pump + electrical pump |
| 14 | Max.working liquid pressure(Mpa) | 12 |
| 15 | Max. worktable load(kg) | 3000 |
| 16 | Overall dimension of machine(W*L*H) | 1000*1000*2000 |
| 17 | Overall dimension of machine(W*L*H) | 700 |
| 18 | X、Y、Z configurations | X,Y,Z axis precision ball screw |
| 19 | Z axis Taiwan HIWIN linear guideway | |
| 20 | Z axis stepper motor subdivision drive |
| No. | Spare parts |
|---|---|
| 1 | X Y Z ball screw |
| 2 | W axis ball screw |
| 3 | X Y Z linear guideway |
| 4 | X Y Z motor |
| 5 | X Y driver |
| 6 | Z drier |
| 7 | W axis motor |
| 8 | Rotation motor |
| 9 | electrical pump |
| 10 | Pneumatic pump |
| 11 | scale |
| 12 | operating system |
| 13 | Circuit breakers, contactors |
| 14 | Allen key |
| 15 | Double-head screwdriver |
| 16 | Specialized electrode scissors |
| 17 | Guide |
| 18 | Guide |
| 19 | Brass electrode tube |
| 20 | Brass electrode tube |
| 21 | Electrode sealing ring |
| 22 | Precision drill chuck |
| 23 | Machine foot |
| 24 | Clean water tank |
| 25 | Dirty water tank |
| 26 | Balance holder |
| 27 | Water baffle |
| 28 | Operation Manual |
