Top Fast Wire Cutting EDM Machine Manufacturers and Suppliers in China

AHF Series Fast Speed Wire Cutting EDM Machine Fast Wire Cutting EDM Machine

ANTISHICNC is a globally recognized brand in machinery manufacturing, with a specialization in fast wire cutting EDM machines.Riding high on precision engineering, cutting-edge technology, and cost-effective solutions.

Factory Sale AHF Series Fast Speed Wire Cutting EDM Machine Fast Wire Cutting EDM Machine

  • Precision and Rigidity: It features a high rigidity design, where non-structural parts are fitted for stability. Top-of-the-line imported components are involved to maintain the highest possible geometry, motion, and machining accuracy.

  • Advanced Features:Incorporates linear guide tracks with precise pre-loaded ball screws to guarantee smooth yet precise movements.In excess of 100mm²/min working speed can be attained with surface roughness less than Ra2.5μm.

  • Versatility and Customization:Support molybdenum wire diameter from 0.12mm to Φ0.25mm, with options for bigger diameters. It provides a large swing taper mechanism (±6-45°) and electrode wire expansion mechanism.

  • User-Comfort and Environment-Friendly Design:Semi-closed design for environmental protection.High column with an electric lift to easily adjust the gap of the guide wheel.

Technical Proposal for Fast Wire Cutting EDM Machine

SpecificationsUnitAHF45AHF55
X, Y axial strokemm450X550550X650
Table sizemm750×500880×596
Maximum load capacitykg450800
Maximum cutting taper°/mm±60/80 (Optional: 6°-60°)±60/80 (Optional: 6°-60°)
Maximum cutting thicknessmm400500
Molybdenum wire diametermmφ0.12～φ0.18φ0.12～φ0.18
Maximum silk storage lengthm320220
Electrode wire fixed speedm/s1111
Pulse equivalentmm0.0010.001
Stepper motor90BF00690BF006
Maximum cutting speedmm2/min120120
Power supplyKVA380V 50Hz 3ph380V 50Hz 3ph
Weight of whole machinekg16502500
Overall dimensionmm1865×1520×17002070×1770×1790
Programming and Control SoftwarAUTOCUTAUTOCUT
CabinetSingle cut control cabinetSingle cut control cabinet

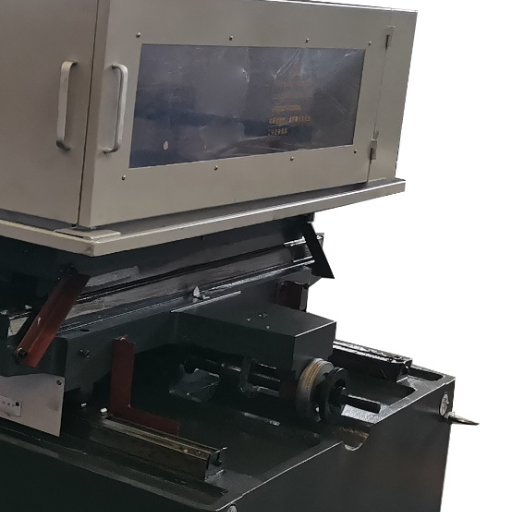

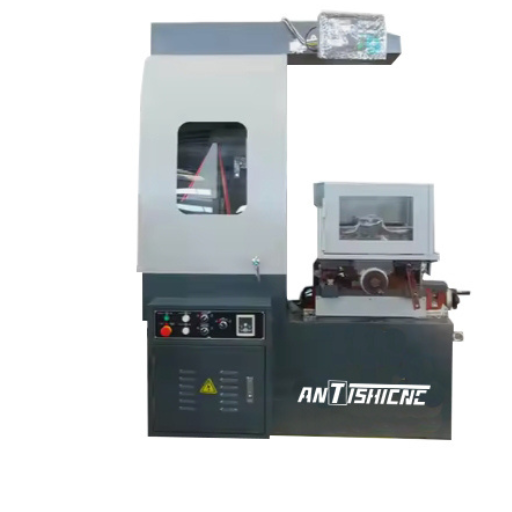

AHF Series Fast Speed Wire Cutting EDM Machine Fast Wire Cutting EDM Machine Product Display Picture

Quality Assurance and After-Sales Service

GB7925-87 Wire EDM Parameter

GB7926-87 Wire EDM precision

JB/T10082-2000 Wire EDM Machine Technical Conditions

GB13567-1998 EDM machine tool safety protection technical requirements

For the products sold by Shanghai ANTISHI, we provide users with free technical consultation before sale, and are responsible for providing user pre-sales training. Technicians provide unconditional technical support, guide and assist customers in installation; one-year free warranty, lifetime service, and labor costs for over-guaranteed machine tools. During the warranty period, the company will provide free parts (except wearing parts) that are not damaged due to improper operation.

Warranty Terms:

one year warranty( 12 months since customer receive & use the machine).

The manufacturer guarantees to provide life-long paid maintenance services for the product.
