At ANTISHICNC,Find out about the top manufacturers and suppliers of in China that offer fast wire cut EDM machines characterized by precision, efficiency, and advanced technology.
Workbench:Clamps the workpiece and enables precise automatic feeding.Features precision ball screws, backlash-free gears, and linear guides for high accuracy and wear resistance.
Wire Transport Mechanism:Drives the electrode wire at a consistent speed and ensures neat arrangement on the wire storage drum.
Includes a fully enclosed cover to prevent fluid splashes.
Wire Frame and Bed:Supports the electrode wire and maintains a stable geometric angle with the workpiece.T-shaped bed structure ensures rigidity, strength, and high load capacity.
Electrical and Control Systems:Equipped with imported components like frequency converters and relays.Features a desktop control cabinet with a 15-inch LCD for efficient operation.

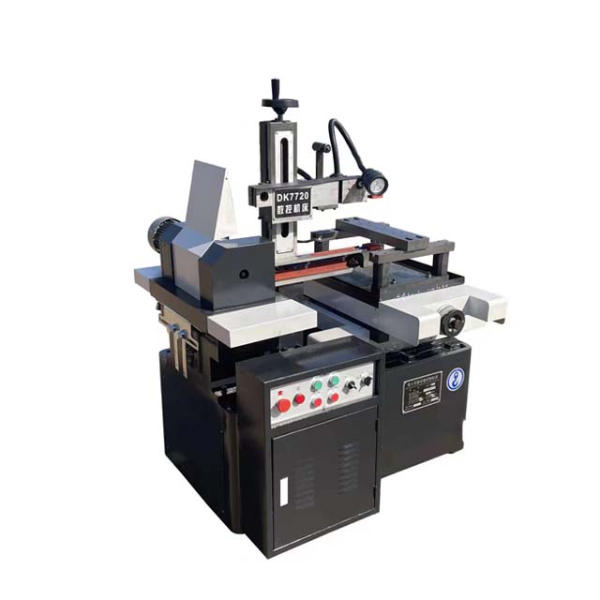

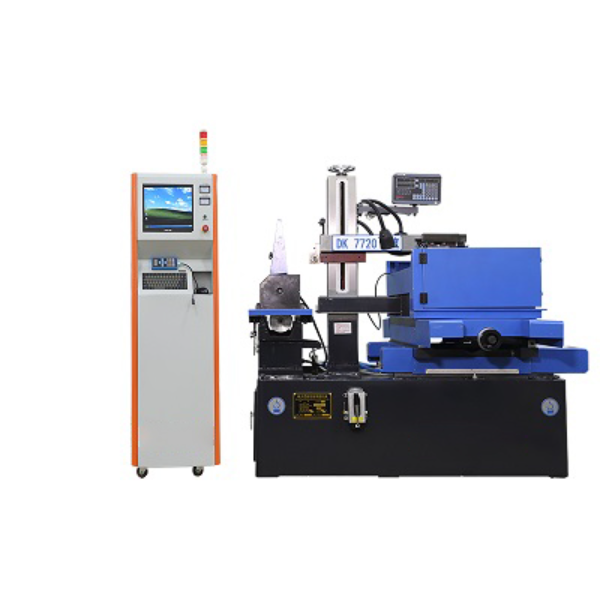

| Machine Model | Unit | DK7720 |
|---|---|---|
| Machine Type | - | High-Speed-WEDM |
| Guide | - | Inlaid steel rails |
| Screws Form | - | Ball screw |
| Table size | mm | 400*500 |
| Table travel | mm | 200*250 |
| Max. cutting thickness (height adjustable) | mm | 500 |
| Total machine power | kw | 2.5 |
| Machining Surface Roughness | μm | Ra≤2. 5 |
| Max. cutting speed | mm2/h | 8000-10000 |
| Max. cutting taper | mm | ±6°/80mm |
| Molybdenum wire diameter | m | Φ0.13—Φ0.20 |
| Wire travel speed | m/s | 11.5 |
| Min. feed increment | mm | 0.001 |
| Pulse width adjustable range | μs | 15-150 |
| Max. power consumption | KVA | ≤1 |
| Motor type | - | Reactive Stepper Motor |
| Inverter speed regulation | m/s | 1~12 m/s |
| Machine protection | - | Environmental protection cover |
| Motion axis motion resolution | mm | 0.001 |
| U, V axis travel | mm | ±35×±35 |
| Control Method | - | 4-axis linkage |
| Large load capacity | kg | 100kg |
| Production Criteria (Acceptance Criteria) | - | GB7926-87 |
| Machine dimensions | mm | 1500x1000x1700 |
| Machine weight | kg | 900 |
| No | Name | Manufacturer |
|---|---|---|
| 1 | Precision Ball Guide | Northern Machinery |
| 2 | Table ball screw (material GCr15) | Hanjiang machine tool factory |
| 3 | Capstan | Wuxi Xieye Machinery Factory |
| 4 | Table ball screw bearing D246205/P5 (pair supply) Wire bearing D246202/P5, guide wheel bearing D24/P5 | Harbin Bearing Factory Japan NACHI、IJK |
| 5 | Inverter | Dongguan |
| 6 | AC contactor 3TB4044-9A110V | Siemens, Germany |
| 7 | Intermediate relay 3TH8262 110V 50HZ | Siemens, Germany |
Quality Assurance and After-Sales Service
For the products sold by Shanghai ANTISHI, we provide users with free technical consultation before sale, and are responsible for providing user pre-sales training. Technicians provide unconditional technical support, guide and assist customers in installation; one-year free warranty, lifetime service, and labor costs for over-guaranteed machine tools. During the warranty period, the company will provide free parts (except wearing parts) that are not damaged due to improper operation.
Warranty Terms:
one year warranty( 12 months since customer receive & use the machine).
The manufacturer guarantees to provide life-long paid maintenance services for the product.
