Top Fast Wire Cutting EDM Machine Manufacturers and Suppliers in China

DK7745 Fast Wire Cutting EDM Machine

Some of the fastest wire-cutting EDM companies are based in China, with ANTISHICNC being one of them, featuring advanced technology and precise engineering for reliable performance.

Factory Sale DK7745 Fast Wire Cutting EDM Machine

  • Workbench: Precision ball screws, gears without backlash, and linear guides for high-accuracy automatic feeding and clamping of workpieces. A protective cover keeps fluid and chip splashes away.

  • Wire System: Ensures smooth movement of the electrode wire by coaxiality, a fully enclosed design, precise wire storage drums, and a reversible wire mechanism for operation.

  • Wire Frame: Establishes stable electrode wire motion with the monolithic taper assembly, and it maintains precise angles geometrically in coordination with the worktable.

  • Bed & Control System: The T-shaped-bed structure exists to provide rigidity and strength, and the control cabinet has a 15-inch LCD with imported electrical components for reliability.

Technical Proposal for Fast Wire Cutting EDM Machine

Machine ModelUnitDK7745
Machine Type-High-Speed-WEDM
Guide-Inlaid steel rails
Screws Form-Ball screw
Table sizemm570*800
Table travelmm450*550
Max. cutting thickness (height adjustable)mm500
Total machine powerkw2.5
Machining Surface RoughnessμmRa≤2. 5
Max. cutting speedm²/h8000-10000
Max. cutting tapermm±6°/80mm
Molybdenum wire diametermΦ0.13—Φ0.20
Wire travel speedm/s11.5
Min. feed incrementmm0.001
Pulse width adjustable rangeμs15-150
Max. power consumptionKVA≤1
Motor type-Reactive Stepper Motor
Inverter speed regulationm/s1~12m/s
Machine protection-Environmental protection cover
Motion axis motion resolutionmm0.001mm
U, V axis travelmm±35×±35mm
Control Method-4-axis linkage
Large load capacitykg450kg
Production Criteria (Acceptance Criteria)-GB7926-87
Machine dimensionsmm1900x1300x1800
Machine weightkg1700

Main Parts& Standard Equipment

NoNameManufacturer
1Precision Ball GuideNorthern Machinery
2Table ball screw (material GCr15)Hanjiang machine tool factory
3CapstanWuxi Xieye Machinery Factory
4Table ball screw bearing D246205/P5 (pair supply) Wire bearing D246202/P5, guide wheel bearing D24/P5Harbin Bearing Factory Japan NACHI、IJK
5InverterDongguan
6AC contactor 3TB4044-9A110VSiemens, Germany
7Intermediate relay 3TH8262 110V 50HZSiemens, Germany

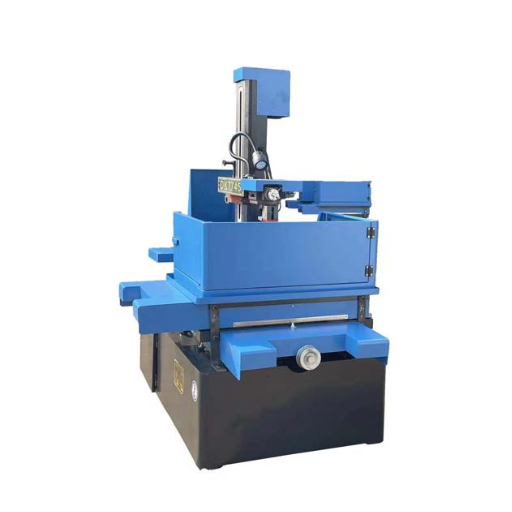

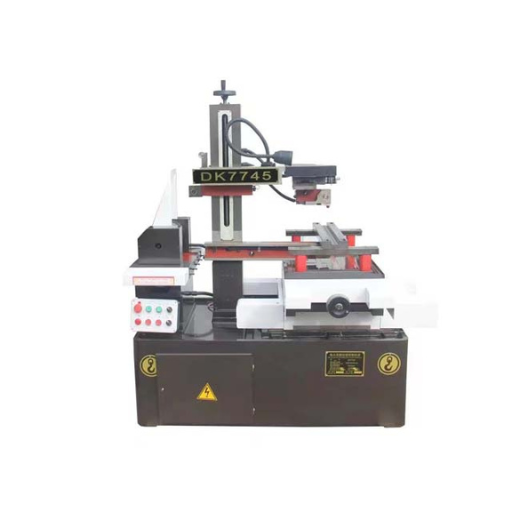

DK7745 Fast Wire Cutting EDM Machine Product Display Picture

Quality Assurance and After-Sales Service

GB7925-87 Wire EDM Parameter

GB7926-87 Wire EDM precision

JB/T10082-2000 Wire EDM Machine Technical Conditions

GB13567-1998 EDM machine tool safety protection technical requirements

For the products sold by Shanghai ANTISHI, we provide users with free technical consultation before sale, and are responsible for providing user pre-sales training. Technicians provide unconditional technical support, guide and assist customers in installation; one-year free warranty, lifetime service, and labor costs for over-guaranteed machine tools. During the warranty period, the company will provide free parts (except wearing parts) that are not damaged due to improper operation.

Warranty Terms:

one year warranty( 12 months since customer receive & use the machine).

The manufacturer guarantees to provide life-long paid maintenance services for the product.
