Top Fast Wire Cutting EDM Machine Manufacturers and Suppliers in China
DK7750 Fast Wire Cutting EDM Machine
China has the leading name in some of the impressive, high-quality manufacturers of fast wire cutting EDM machines, ANTISHICNC, for aerospace, automotive, medical, and molding industries. These manufacturers merge modern technology, precision engineering, and quality control to reach an exceptional level of performance.
Factory Sale DK7750 Fast Wire Cutting EDM Machine
Technical Proposal for Fast Wire Cutting EDM Machine
| Machine Model | Unit | DK7750 |
|---|---|---|
| Machine Type | - | High-Speed-WEDM |
| Guide | - | Inlaid steel rails |
| Screws Form | - | Ball screw |
| Table size | mm | 650*1000 |
| Table travel | mm | 500*630 |
| Max. cutting thickness (height adjustable) | mm | 600 |
| Total machine power | kw | 2.5 |
| Machining Surface Roughness | μm | Ra≤2. 5 |
| Max. cutting speed | m²/h | 8000-10000 |
| Max. cutting taper | mm | ±6°/80mm |
| Molybdenum wire diameter | m | Φ0.13—Φ0.20 |
| Wire travel speed | m/s | 11.5 |
| Min. feed increment | mm | 0.001 |
| Pulse width adjustable range | μs | 15-150 |
| Max. power consumption | KVA | ≤1 |
| Motor type | - | Reactive Stepper Motor |
| Inverter speed regulation | m/s | 1~12m/s |
| Machine protection | - | Environmental protection cover |
| Motion axis motion resolution | mm | 0.001mm |
| U, V axis travel | mm | ±35×±35mm |
| Control Method | - | 4-axis linkage |
| Large load capacity | kg | 450kg |
| Production Criteria (Acceptance Criteria) | - | GB7926-87 |
| Machine dimensions | mm | 2400x2250x1650 |
| Machine weight | kg | 2300 |
Main Parts& Standard Equipment
| No | Name | Manufacturer |
|---|---|---|
| 1 | Precision Ball Guide | Northern Machinery |
| 2 | Table ball screw (material GCr15) | Hanjiang machine tool factory |
| 3 | Capstan | Wuxi Xieye Machinery Factory |
| 4 | Table ball screw bearing D246205/P5 (pair supply) Wire bearing D246202/P5, guide wheel bearing D24/P5 | Harbin Bearing Factory Japan NACHI、IJK |
| 5 | Inverter | Dongguan |
| 6 | AC contactor 3TB4044-9A110V | Siemens, Germany |
| 7 | Intermediate relay 3TH8262 110V 50HZ | Siemens, Germany |

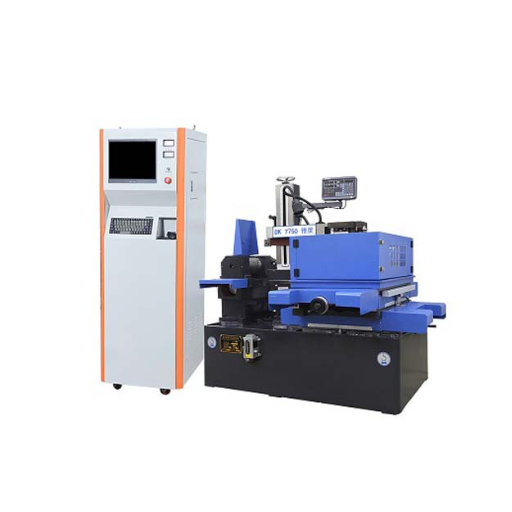

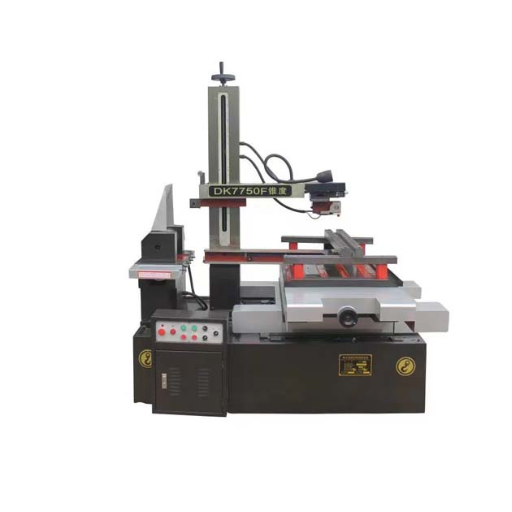

DK7750 Fast Wire Cutting EDM Machine Product Display Picture
Quality Assurance and After-Sales Service
GB7925-87 Wire EDM Parameter
GB7926-87 Wire EDM precision
JB/T10082-2000 Wire EDM Machine Technical Conditions
GB13567-1998 EDM machine tool safety protection technical requirements
For the products sold by Shanghai ANTISHI, we provide users with free technical consultation before sale, and are responsible for providing user pre-sales training. Technicians provide unconditional technical support, guide and assist customers in installation; one-year free warranty, lifetime service, and labor costs for over-guaranteed machine tools. During the warranty period, the company will provide free parts (except wearing parts) that are not damaged due to improper operation.
Warranty Terms:
one year warranty( 12 months since customer receive & use the machine).
The manufacturer guarantees to provide lifelong paid maintenance services for the product.
