Top 400GS3CNC AC Servo Medium Wire Cutting Machine Manufacturers and Suppliers in China

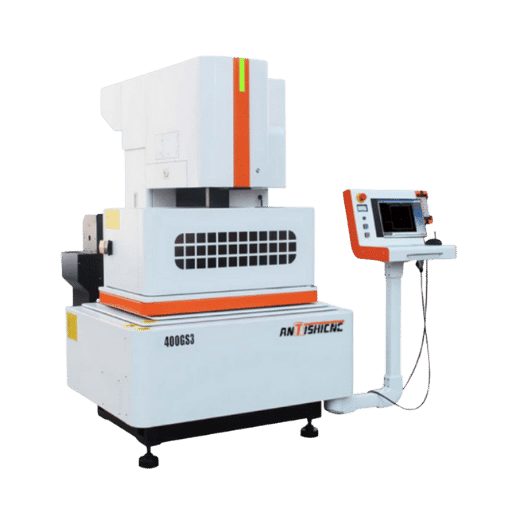

400GS3 AC Servo Medium Wire Cutting Machine

The 400GS3 model is a five-axis CNC wire cutting machine tool that is capable of electric Z-axis lifting and lowering. Among the machines of this type made in China, 400GS3 is the first servo mid-feeding wire cutting machine tool which attains processing stability with this structure.

Factory Sale 400GS3 AC Servo Medium Wire Cutting Machine

  • The bed has a "T" configuration, and the work table, at the extreme left and extreme right, has zones where it is highly probable that it is "on" the bed. This substantially improved the stability of the machining process.

  • The entire machine has a "C" configuration for the tool which is more stable and ensures better retention of precision.

  • Linearly, all guide rails, ball screw and AC servo motor, are of foreign origin and are directly interconnected which results in higher accuracy and retention.

  • Control is maintained by AC servo drives on the X.Y axes.

  • Linearly, all guide rails, ball screw, and AC servo motor are of foreign origin and are directly interconnected, which results in higher accuracy and retention.

Factory Sale 400GS3 AC Servo Medium Wire Cutting Machine

400GS3CNC AC Servo Medium Wire Cutting Machine Technical Parameter

Specifications400GS3
Occupation size (L*W*D)1750*1250*2000mm
Machine weight4000kg
Worktable Size（L*W）450*660mm
X-axis travel400mm
Y-axis travel320mm
Z-axis travel260mm
Pulse Width1-250us
Output pulse gap to pulse width ratio4—15
Number of low pressure pipes0-15
Number of high pressure pipes0-3
Servo speed0-15
Servo tracking1-199
Servo speed limit1-500
Wire speed0-3
Cutting times1-7
Minimum mechanical drive equivalent1um
Pulse resolution0.4um
Spindle travel (electrically adjustable)300mm
Maximum cutting slope/work piece thickness±6°/80
The maximum load capacity of the workable400kg
Positioning accuracy X/Y≤0.01mm
Repeat positioning accuracy X/Y≤0.005mm
Best multi-knife cutting accuracy≤0.005mm (diameter 18 square height 40mm, cut One repair two, material SKD11 or Cr12, HRC58)
Optimum Surface RoughnessRa≤0.6 (square 10mm*10mm*40mm, material Material SKD11 or Cr12,HRC58)
Maximum cutting efficiency≥300mm2∕min
Maximum processing current≥10 A
Processing power no-load voltage100 V
Power consumption≤1 Kw
Wire Diameter∮0.12-∮0.2mm
Wire drum speedFrequency
Tight wire methodTwo-way automatic wire tightening
Wire speed3-12 m/s
Filtration accuracy＜5um
Filter methodSlow wire filter
Working fluidSpecial Cutting Fluid
Electricity380V±10% / 50/60Hz / 2kVA
TemperatureTemperature 15-30℃ / Humidity 40-80%
Barometric pressure86-106kpa
