In an industrial setting, precision, durability, and efficiency are necessities for ANTISHICNC. As one of the leading manufacturers in China, we produce radial drilling machines to excel in a wide range of applications.
The oil pumps at the turbine end of the main shaft get lubrication automatically. The guide rail is high-frequency quenched and hard.
The handle controls actions such as forward and reverse for the main shaft, parking (braking), shifting, and neutral, offering easy operation.
Hydraulically powered diamond block clamping mechanisms are used for clamping in the spindle box, in the rocker arm, as well as in the inner and exterior columns. Thus, clamping is ensured to be reliable.
| Details Description | Unit | Z3063X20 |
|---|---|---|
| Maximum drilling diameter | mm | 63 |
| Distance from spindle center to column | mm | 450-2000 |
| Distance from spindle end face to base working face | mm | 400-1600 |
| Spindle travel | mm | 400 |
| Spindle taper hole | 5# | |
| Spindle speed range | r/min | 20-1600 |
| Spindle speed series | 16 | |
| Spindle feed range | mm/r | 0.04-3.20 |
| Spindle feed level | 16 | |
| Table size | mm | 800*630*500 |
| Horizontal movement distance of headstock | mm | 1550 |
| Main motor power | kw | 5.5 |
| Net weight of the machine | kg | 7300/8800 |
| Overall dimensions(L×W×H) | mm | 4200*2260*2120 |
Quality Assurance and After-Sales Service
Warranty service:
one year warranty( 12 months since customer receive & use the machine).
The manufacturer guarantees to provide life-long paid maintenance services for the product.

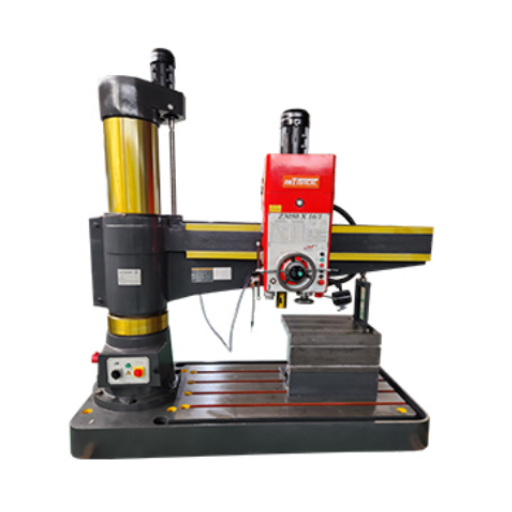

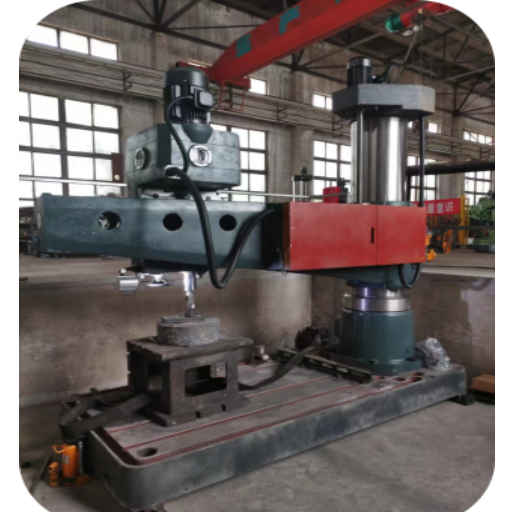

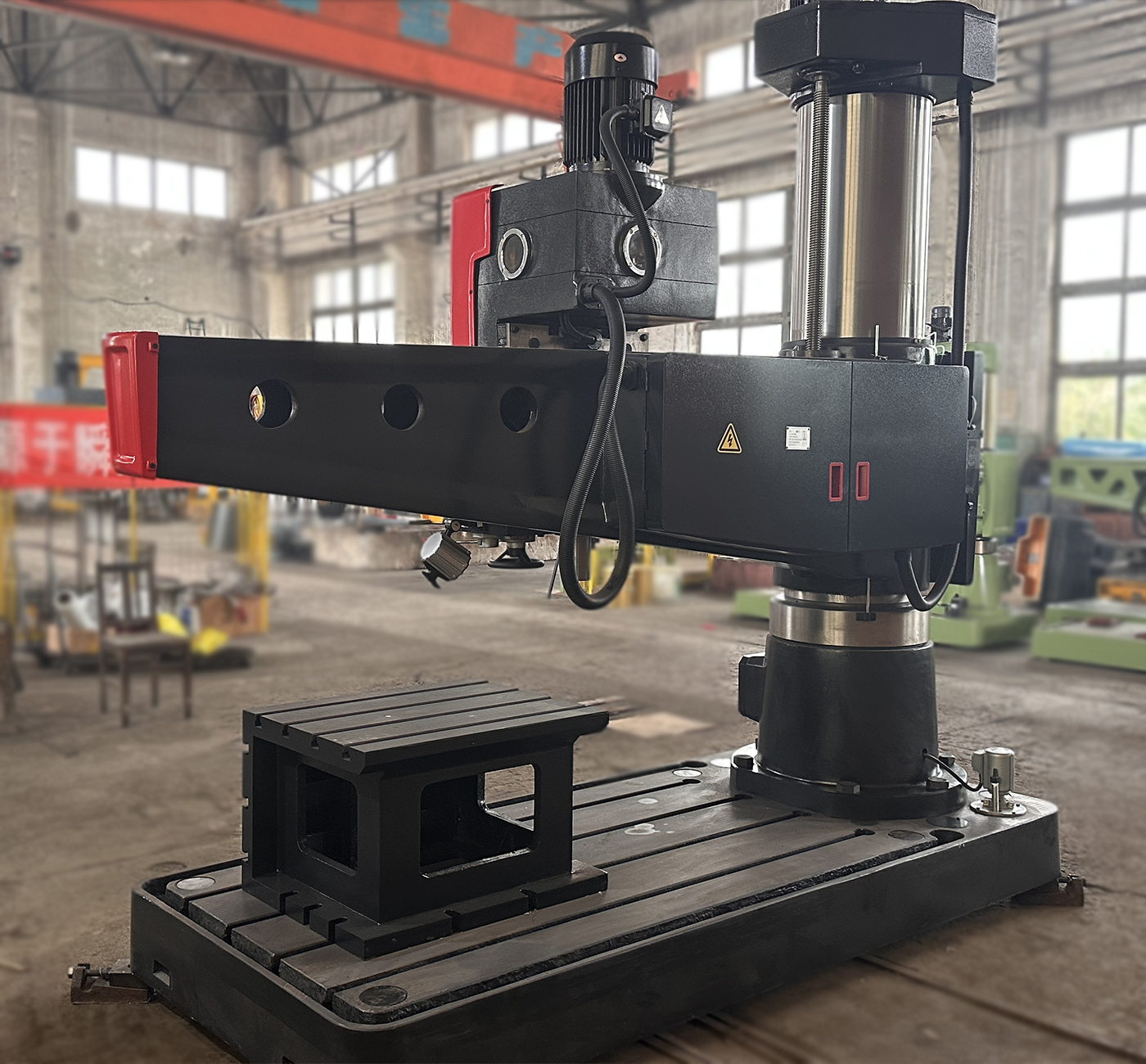

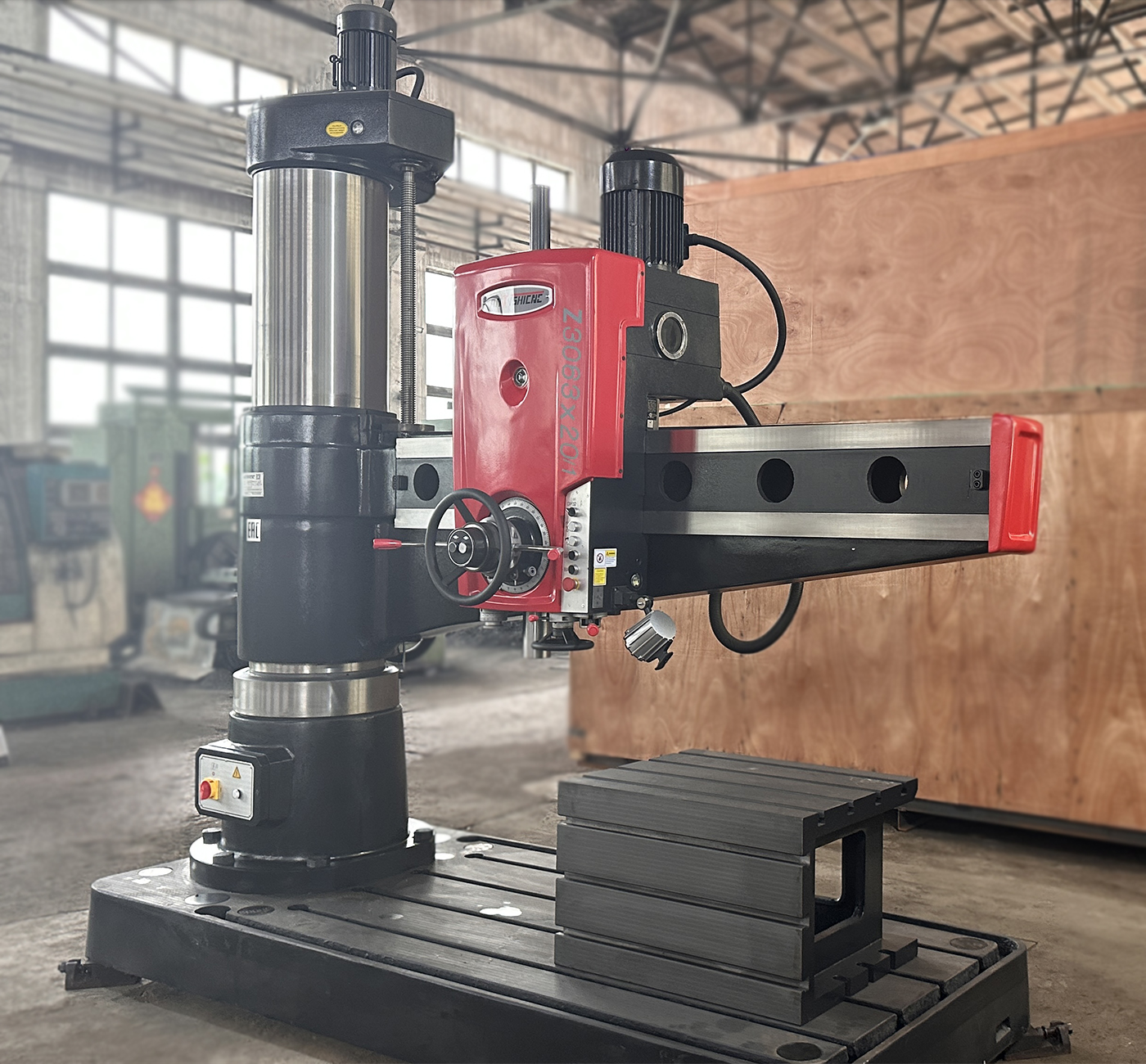

The Z3063x20 Large size Hydraulic Radial Arm Drilling Machine is a powerhouse in the industrial machining field, tailored to fulfill the demanding requirements of precision drilling and heavy-duty operations. The machine is versatile, combining advanced hydraulic technology with sound engineering to deliver optimal performance and efficiency. From its high-end features, myriad applications in various sectors, and essential maintenance tips that will boost its longevity, you will get all the information you need to know about this great piece of machinery.
