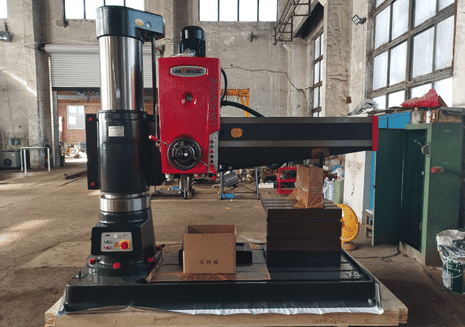

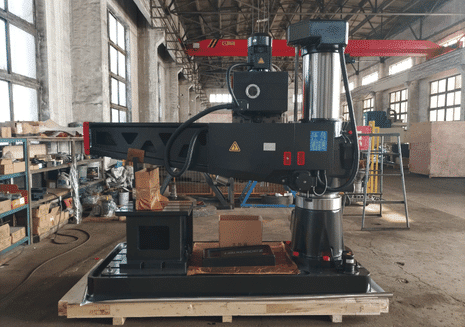

The Z3050×16-1 Hydraulic Radial Drilling Machine, designed with robust capabilities for precise heavy-duty drilling, is a superb investment for any firm. It’s familiar with a myriad of materials and can smoothly and accurately drill through steel or aluminum owing to its 31.5–1,600 RPM variable speed control and hydraulic feed system.
Exceptional Quality: Constructed from top-grade materials and pioneering technology.
Thorough Support: One year of warranty and remote support.
International Presence: Reputable across industries with a number of showrooms around the world.
Customer-Oriented Approach: Focused design and full implementation of all requirements.
Ecology: Savings on working expenses through designed energy economy.
| Parameter | Value |
|---|---|
| Max. Drilling Diameter | 50mm |
| Spindle Speed Range | 25-2000 RPM |
| Spindle Feed Range | 0.04-3.2 mm/r |
| Spindle Taper | Morse No. 5 |
| Horizontal Spindle Travel | 1250mm |
| Arm Rotation Angle | ±180° |
| Main Motor Power | 4 kW |
| Machine Weight | 3500 kg |
| Dimensions (L×W×H) | 2500×1070×2840 mm |
Key Features of Z3050×16 Hydraulic Radial Drilling Machine
Drilling Capacity: The maximum drilling diameter that can be drilled is 50mm.
Hydraulic Clamping: Provides complete operational stability which guarantees operational accuracy during processes.
Adjustable Spindle Speed: There are 16 different speed variations, within the range of 25 to 2000 RPM.
Spindle Feed Control: There are 16 different feed levels to precisely control the movement of a material.
Robust Build: The entire machine is durable, stable, and made of high strength cast iron.
User-Friendly Design: The machine is equipped with control systems that are easy to understand and operate.
Cooling System: There is a built-in cooling system, including a cooling pump for the purpose of maintaining the longevity of the tools.
The Z3050x16 Radial Drilling Machine lets precision engineering drilling processes meet the miscellaneous requirements of modern industries. High versatility, robust construction, and efficiency are the hallmarks of this machinery in the manufacturing, automotive, and construction trades.
