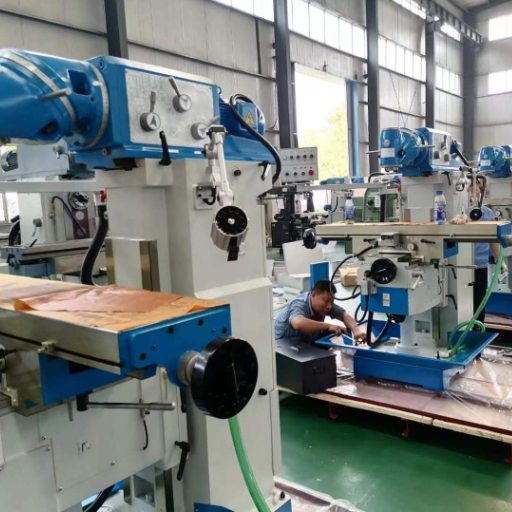

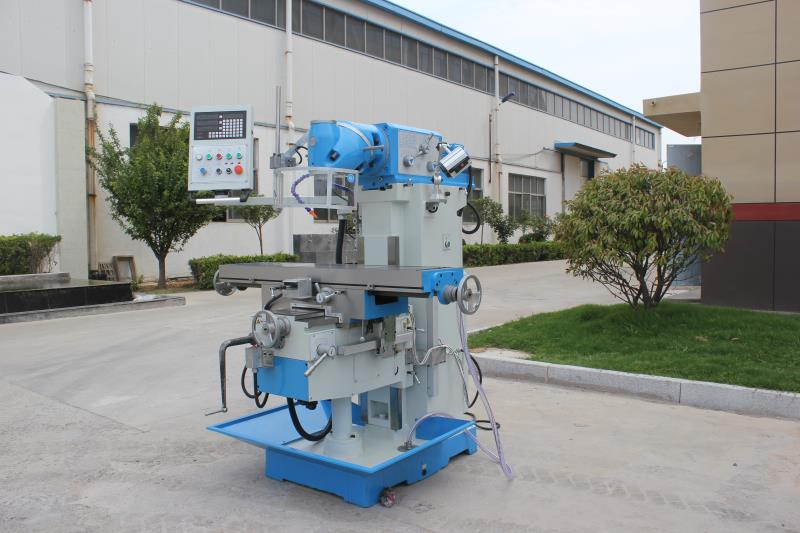

There is no denying that ANTISHICNC universal milling machines are versatile! If you are machining components for the automotive, aerospace, or medical equipment industries, ANTISHICNC has got you covered.
This machine is versatile and used for multiple operations such as drilling, hole expansion, reaming, bevel edging, and tapping.
Designed with stepless speed control and automatic speed regulation, it delivers enormous torque at low RPM, which is necessary for taking deep cuts and drilling larger diameter holes with ease.
Durability is guaranteed, as the body and central parts of the machine are cast from high-strength cast iron. Its microstructure is very stable, ensuring reproducible performance plus long inference.
| Items | X6230 | X6230A | X6230B | X6230C |
|---|---|---|---|---|
| Working area | ||||
| Worktable size (L×W) | 1270x300mm | 1370x300mm | 1270x300mm | 1370x300mm |
| T slot (Width x No. x pitch) | 14x3x80mm | |||
| Max. load of table | 300kg | |||
| Distance from spindle nose to table | 100-500mm | |||
| Travels | ||||
| Worktable longitudinal travel (X) | 720mm | 820mm | 900mm | 1000mm |
| Worktable cross travel (Y) | 300mm | 380mm | ||
| Worktable vertical travel (Z) | 400mm | |||
| Spindle | ||||
| Spindle speed | 11 steps; 45-1660rpm | |||
| Spindle taper | 7:24, ISO40 | |||
| Motor power | 3kW | |||
| Feed | ||||
| Rapid feed (X/Y/Z) | 1335/1335/1000mm/min | |||
| Feed range (X/Y) | 30-830mm/min | |||
| Feed range (Z) | 23-625mm/min | |||
| Others | ||||
| Machine size (L×W×H) | 1730x1760x1700mm | 1830x1760x1700mm | 1730x1760x1700mm | 1830x1760x1700mm |
| Net weight | 1800kg | 1850kg | 1850kg | 1900kg |
Quality Assurance and After-Sales Service
Warranty service:
one year warranty( 12 months since customer receive & use the machine).
The manufacturer guarantees to provide life-long paid maintenance services for the product.
