Top Cnc Pipe Threading Lathe Manufacturers and Suppliers in China

Qk1319 Cnc Pipe Threading Lathe

The ANTISHICNC CNC pipe threading lathes offer precision, hardness, and efficiency, and the industries that rely on them to thrive include the oil and gas, construction, and manufacturing sectors in general.

Factory Sale Qk1319 Cnc Pipe Threading Lathe

  • Featuring a spindle bore of 200mm, it enables extreme passability, providing firm workpiece clamping with double chucks.

  • Made from high-strength cast iron for rigidity and precision in heavy-duty industrial use.

  • Quenched guide rails provide increased hardness and extended life, thereby enhancing machine durability.

  • These may involve variable spindle speeds and accurate thread machining, providing accuracy and repeatability for industrial tasks.

Technical Proposal for Cnc Pipe Threading Lathe

ParameterSpecification
Swing over bed630/800 mm
Swing over cross slide340/520 mm
Distance between centers1000/1500/3000 mm
Pipe threading range50-193 mm
Guideway width550 mm
Max. load capacity3 tons
Spindle bore200 mm
Spindle speed stepsVF, 4 steps
Spindle speed range20-550 rpm
Chuckφ500 3-jaw manual
Turret/tool postCNC turret, 4 position
Tool shank size32 x 32 mm
X axis travel320/420 mm
Z axis travel850/1350/2850 mm
X axis rapid traverse4000 mm/min
Z axis rapid traverse6000 mm/min
Tailstock quill diameterφ100 mm
Tailstock quill taperMT5
Tailstock quill travel250 mm
Main spindle motor11 kW
Coolant pump motor0.125 kW

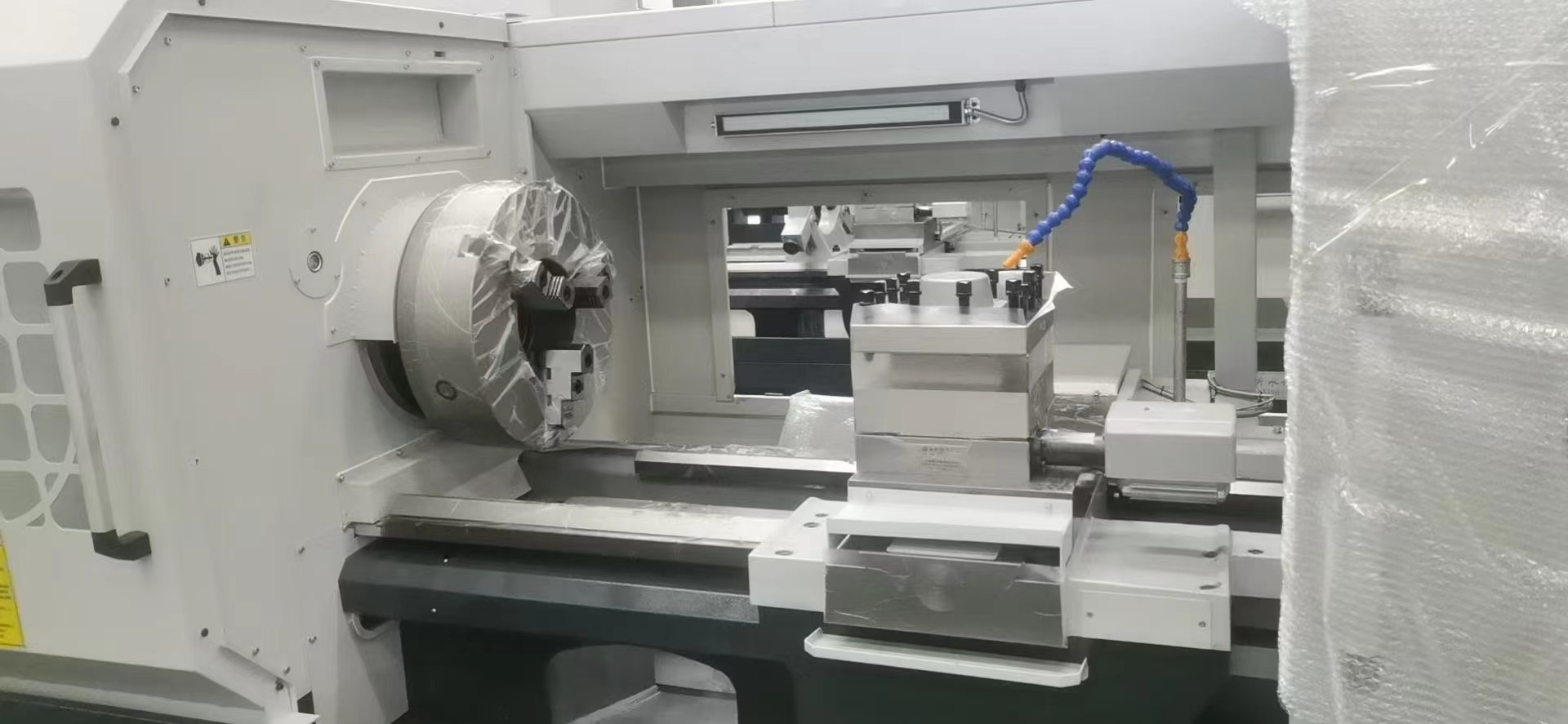

Qk1319 Cnc Pipe Threading Lathe Product Display Picture

Quality Assurance and After-Sales Service

At Shanghai ANTS Machine Equipment Co., Ltd., our primary objective is to deliver exceptional machine tool technical services and to uphold our service commitments to every customer consistently.

Starting from the day you formally accept the machine, any breakdowns linked to quality will be covered by a no-cost, one-year warranty. If any other parts fail due to quality problems, we will also replace those parts at no cost during that same year.

Throughout that one-year term, whenever you encounter a machine-related quality issue, our team will be there to assist you in its repair, and we will waive all labor charges. After that, we commit to supplying spare parts at preferred prices for the life of your machine so that you can keep it running smoothly for many more years.

Warranty Terms:

Our warranty lasts for one full year (12 months) from the day you start using the machine. After the warranty ends, we offer lifetime maintenance service at a fair price so your equipment always has our support.

When you choose Shanghai ANTS, you choose dependable service, ongoing support, and complete peace of mind for your investment.

qk1319 CNC Pipe Threading Lathe: Precision and Efficiency in Pipe Threading

The qk1319 CNC Pipe Threading Lathe has been symbolic of innovation in industrial machinery; it merges the finest precision with the greatest value. In real-world setups, the pipe threading needs are very stringent, and this lathe solution opposes all such harshness, making it an extremely desirable manufacturing machine for use in the oil and gas industries, construction, and manufacturing. The subsequent discussion will focus on how the qk1319 counteracts these typical pipe threading problems, streamlines work processes, and ultimately enhances the quality of its outputs.
