Top Universal Lathe Manufacturers and Suppliers in China
C6163B(Spindle aperture diameter φ105 mm) Universal Lathe
At ANTISHICNC, our universal lathes combine precision, durability, and customization suited for current manufacturing requirements. Designed for either intricate machining or heavy machining, it renders the value of performance and reliability at a cost-effective price with the cutting-edge technology and worldwide support.
Factory Sale C6163B(Spindle aperture diameter φ105 mm) Universal Lathe
Technical Proposal for Universal Lathe
| Item | Models | |
|---|---|---|
| CW6163B | ||
| Max swing over bed (mm) | 630 | |
| Max swing over gap (mm) | 800 | |
| Effective gap length (mm) | 300 | |
| Max | 750、1000.1500、2000、3000、4000、5000、7000、8000 | |
| workpiece length (mm) | ||
| Max turning bed length (mm) | 550、850.1350、1850、2850、3850、4850、6850、7850 | |
| Max turning gap length (mm) | 250、1050、2550、3550、4550、6550 | |
| Max swing over slide(mm) | 350 | |
| Spindle aperture diameter (mm) | 104 | |
| Spindle | Spindle bore front taper (mm) | 140 |
| Spindle taper | ||
| (Mohs) | ||
| Spindle speed | ||
| C series:18 step 8.5—800r/min | ||
| Feed | X &Z number of feeds | |
| Z-axis feed (1:1) | ||
| Z-axis feed (16:1) | ||
| Z-axis fine feed | ||
| Gap rapid movement speed | ||
| X-axis feed is 1/2 times the Z-axis feed | ||
| Distance between screw threads | ||
| Metric thread(mm) | ||
| Inch thread (t.p.i) | ||
| Module thread (πmm) | ||
| DP thread (DP) | ||
| Tool post | Spindle centerline to tool support surface Vertical distance | |
| Tool section size | ||
| Turret turntable rotation angle(º) | ||
| Max. Travel of lower toolpost | ||
| Max. Travel of upper toolpost | ||
| Max permissible cutting force PZ | ||
| Max. feeds PX | ||
| Spindle center line to tool support surface Vertical distance | ||
| Tailstock | Quill dia./travel | |
| Taper of center(MT) | ||
| Lateral movement | ||
| Power | Main motor model | |
| Main motor power | ||
| Main motor speed | ||
| Rapid motor model | ||
| Rapid motor power | ||
| Rapid motor speed | ||
| Cooling | Coolant pump model | |
| Coolant pump motor | ||
| Cooling water pump flow | ||
| Operating | Gear pump model | |
| And Lubrication | ||
| system | ||
| Gear Pump Displacement | ||
| Gear pump pressure | ||
| Gear pump speed | ||
| Cylinder working pressure |
Standard Equipment&Optional Equipment
| NO. | Name |
|---|---|
| 1 | Living center |
| 2 | Digital readout(2 AXIS) |
| 3 | Digital readout(3 AXIS) |
| 4 | 3-jaw chuck and adapte |
| (Φ380mm) | |
| 5 | 3-jaw chuck and adapte |
| (Φ315mm) | |
| 6 | 4-jaw chuck and adapte |
| (Φ500mm) | |
| 7 | 4-jaw chuck and adapte |
| (Φ500mm,K11 380/D11) | |
| 8 | Steady rest(Φ160mm—Φ350mm) |
| 9 | Taper scale |
| (Maxi. machining length of taper scale 500mm | |
| Maxi. processing taper of taper scale Inner taper 10°& Outer taper 15°) | |
| 10 | Foot brake |
| 11 | Screw protection |
| 12 | Chuck protection |
| 13 | Rear chip guard |
| 14 | Tool holder protection |

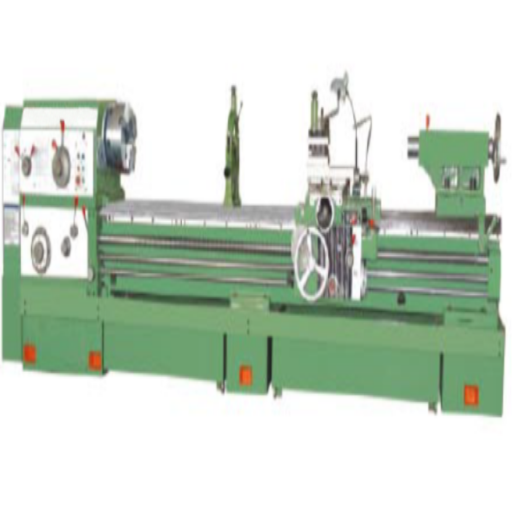

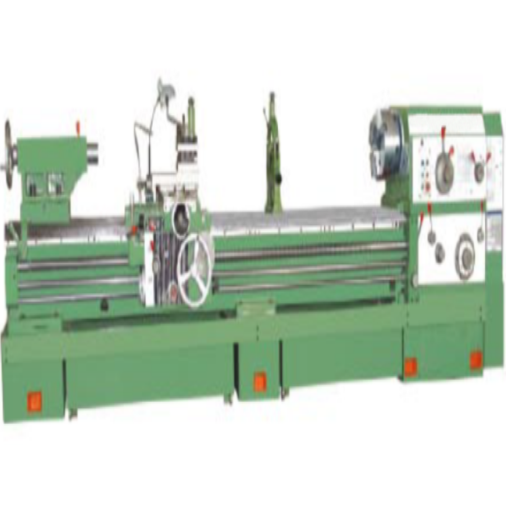

C6163B Universal Lathe Product Display Picture
Quality Assurance and After-Sales Service
The main functional advantages of ANTISHI Lathe Equipment:
- The equipment is a complete, brand-new complete set of equipment, with reasonable structure, high-strength stability, safety, reliability and durability, simple operation and convenient maintenance.
- The main parts of the equipment are made of high-quality materials. The selected mechanical, hydraulic, electronic and electrical components are advanced, high-quality and reliable series products, and meet the requirements of standardization and standardization.
- The design, manufacture and test of the equipment comply with the latest national standards, international industrial standards (ISO), and international electrotechnical standards (IEC).
- Take appropriate safety protection measures for the dangerous parts of the equipment that may cause personal or equipment injury.
- The main color of the equipment is: Standard color system: yellow/black or the color specified by the customer. Ensure that the paint coating thickness is uniform and beautiful.
Warranty service:
one year warranty( 12 months since customer receive & use the machine).
The manufacturer guarantees to provide life-long paid maintenance services for the product.
