CA6261-2000/CA6261Cx1500 Universal Lathe Machine
At ANTISHICNC,Universal Lathe Machine redefines precision and adaptability for modern machining tasks. Designed with advanced engineering and built to endure, this lathe machine delivers exceptional performance for a wide array of applications, from heavy-duty industrial use to intricate detail work.
Factory Sale CA6261-2000 Universal Lathe
Technical Proposal for Universal Lathe
| Item | Unit | CA6261Bx2000 | |
|---|---|---|---|
| Capacity | Max swing over bed | mm | Φ610 |
| Max swing over slide | mm | Φ3700 | |
| Max workpiece length | mm | 1500 | |
| Machine bed width | mm | 400 | |
| Spindle | Spindle aperture diameter | mm | Φ105 |
| Spindle nose | ISO (GB)C6 | ||
| Spindle taper | Mohs | No. 6 | |
| Distance from spindle center to bed guide rail | mm | 330 | |
| Spindle speed | r/min | No. 6 | |
| Distance from spindle center to bed guide rail | mm | 330 | |
| Spindle speed | r/min | Front:24 step 10-1400r/min | |
| Back:12 step 12.5-1400r/min | |||
| Spindle motor | kW | 7.5 | |
| Tailstock | Quill dia./travel | mm | φ75/150 |
| Taper of center | MT | 5 | |
| Tool post | Number of station/Tool section | 4/25X25 | |
| Tool post rapid movement speed（longitudinal） | m/min | 4 | |
| Tool post rapid movement speed（Cross） | m/min | 2 | |
| Turret turntable rotation angle | º | ±90º | |
| Feed | Max. Travel of upper toolpost | mm | 140 |
| Max. Travel of lower toolpost | mm | 370 | |
| X-axis feed（standard） | mm/r | 0.04-0.79 | |
| X-axis feed（small feed） | mm/r | 0.014-0.027 | |
| X-axis feed（increase feed） | mm/r | 0.86-3.16 | |
| Z-axis feed（standard | mm/r | 0.08-1.59 | |
| Z-axis feed（small feed） | mm/r | 0.028-0.054 | |
| Z-axis feed（increase feed） | mm/r | 1.71-6.33 | |
| Metric thread | mm | 44 sorts 1-192 | |
| Inch thread | t.p.i | 21 sorts 2-24 | |
| Module thread | πmm | 39 sorts 0.25-48 | |
| DP thread | DP | 37 sorts 1-96 | |
| Others | Coolant pump motor | W | 90 |
| Cooling water pump head | m | 5 | |
| Cooling water pump flow | L/min | 25 | |
| Machine length | mm | 3150 | |
| Machine width | mm | 1140 | |
| Machine height | mm | 1750 | |
| Machine weight | kg | GW3210/ NW 2940 |
Factory Sale CA6261C-1500 Universal Lathe
Technical Proposal for Universal Lathe
| Item | Unit | CA6261Bx2000 | |
|---|---|---|---|
| Capacity | Max swing over bed | mm | Φ610 |
| Max swing over slide | mm | Φ3700 | |
| Max workpiece length | mm | 1500 | |
| Machine bed width | mm | 400 | |
| Spindle | Spindle aperture diameter | mm | Φ105 |
| Spindle nose | ISO (GB)C6 | ||
| Spindle taper | Mohs | No. 6 | |
| Distance from spindle center to bed guide rail | mm | 330 | |
| Spindle speed | r/min | No. 6 | |
| Distance from spindle center to bed guide rail | mm | 330 | |
| Spindle speed | r/min | Front:24 step 10-1400r/min | |
| Back:12 step 12.5-1400r/min | |||
| Spindle motor | kW | 7.5 | |
| Tailstock | Quill dia./travel | mm | φ75/150 |
| Taper of center | MT | 5 | |
| Tool post | Number of station/Tool section | 4/25X25 | |
| Tool post rapid movement speed（longitudinal） | m/min | 4 | |
| Tool post rapid movement speed（Cross） | m/min | 2 | |
| Turret turntable rotation angle | º | ±90º | |
| Feed | Max. Travel of upper toolpost | mm | 140 |
| Max. Travel of lower toolpost | mm | 370 | |
| X-axis feed（standard） | mm/r | 0.04-0.79 | |
| X-axis feed（small feed） | mm/r | 0.014-0.027 | |
| X-axis feed（increase feed） | mm/r | 0.86-3.16 | |
| Z-axis feed（standard | mm/r | 0.08-1.59 | |
| Z-axis feed（small feed） | mm/r | 0.028-0.054 | |
| Z-axis feed（increase feed） | mm/r | 1.71-6.33 | |
| Metric thread | mm | 44 sorts 1-192 | |
| Inch thread | t.p.i | 21 sorts 2-24 | |
| Module thread | πmm | 39 sorts 0.25-48 | |
| DP thread | DP | 37 sorts 1-96 | |
| Others | Coolant pump motor | W | 90 |
| Cooling water pump head | m | 5 | |
| Cooling water pump flow | L/min | 25 | |
| Machine length | mm | 3150 | |
| Machine width | mm | 1140 | |
| Machine height | mm | 1750 | |
| Machine weight | kg | GW3210/ NW 2940 |

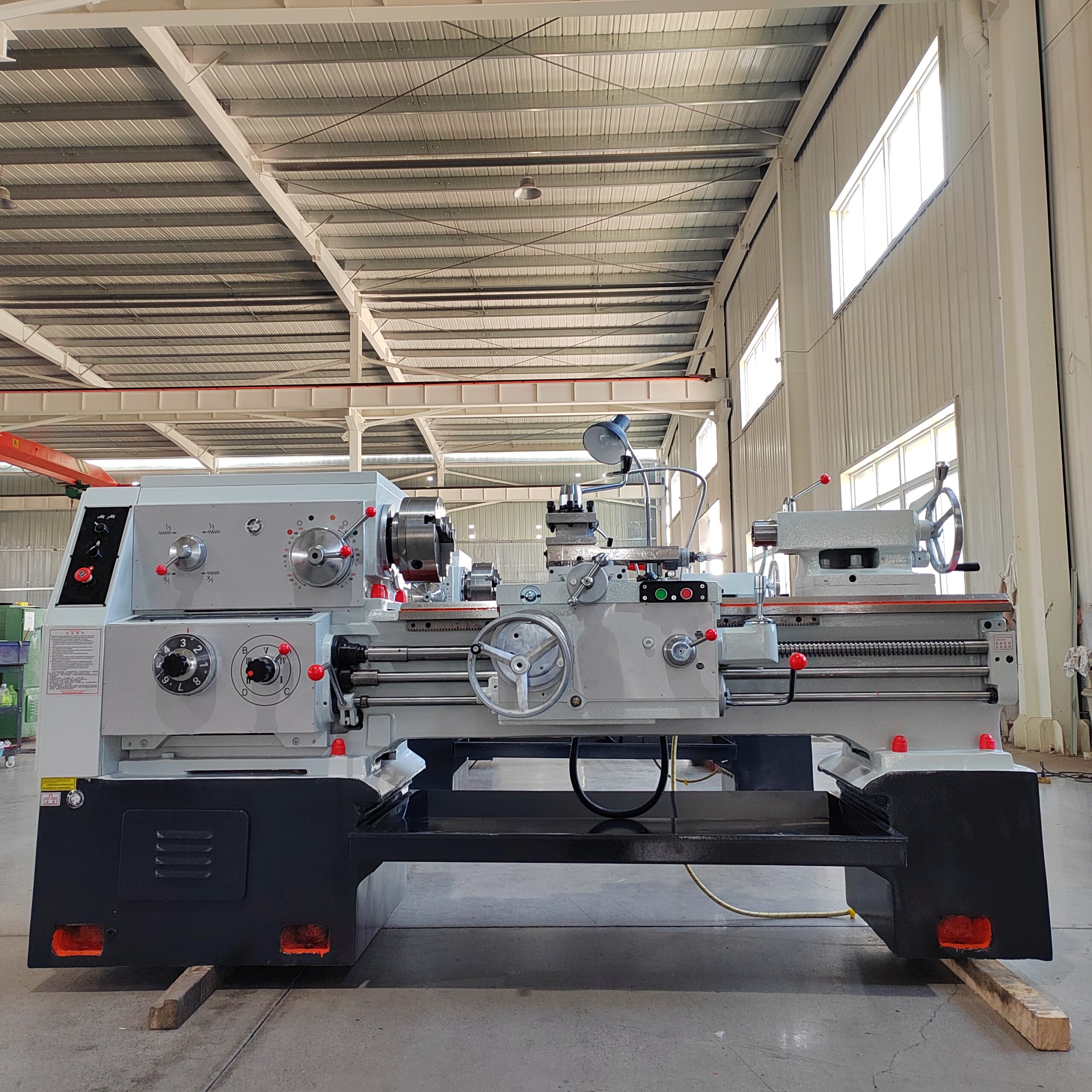

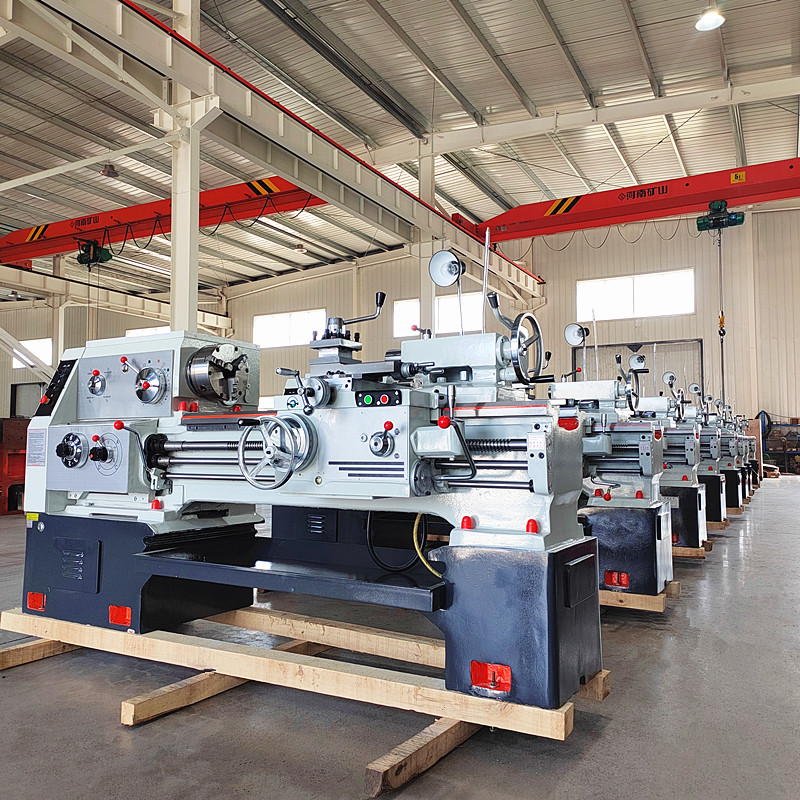

CA6261-2000/CA6261Cx1500 Universal Lathe Product Display Picture
Quality Assurance and After-Sales Service
The main functional advantages of ANTISHI Lathe Equipment:
- The equipment is a complete, brand-new complete set of equipment, with reasonable structure, high-strength stability, safety, reliability and durability, simple operation and convenient maintenance.
- The main parts of the equipment are made of high-quality materials. The selected mechanical, hydraulic, electronic and electrical components are advanced, high-quality and reliable series products, and meet the requirements of standardization and standardization.
- The design, manufacture and test of the equipment comply with the latest national standards, international industrial standards (ISO), and international electrotechnical standards (IEC).
- Take appropriate safety protection measures for the dangerous parts of the equipment that may cause personal or equipment injury.
- The main color of the equipment is: Standard color system: yellow/black or the color specified by the customer. Ensure that the paint coating thickness is uniform and beautiful.
Warranty service:
one year warranty( 12 months since customer receive & use the machine).
The manufacturer guarantees to provide life-long paid maintenance services for the product.
