Top Universal Lathe Manufacturers and Suppliers in China

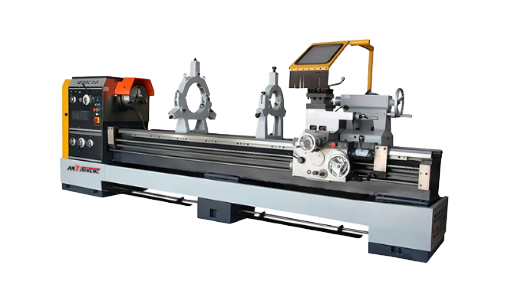

CQ6280C-3000(Aperture Size Φ105 mm) Universal Lathe Machine
China holds the reins as one of the foremost countries producing universal lathes. ANTISHICNC is popularly associated with precision engineering, durability, and high-end features. The CQ6280C-3000 is known to be the flagship model and offers unmatched utility for heavy-duty machining.
Factory Sale CQ6280C-3000(Aperture Size Φ105 mm) Universal Lathe
Technical Proposal for Universal Lathe
| Item | Unit | Parameter | |
|---|---|---|---|
| Capacity | Max swing over bed | mm | CQ6280C/3000 |
| Max swing in gap | mm | Φ1000 | |
| Effective length in gap | mm | 240 | |
| Effective length in gap | mm | 240 | |
| Max swing over slide | mm | Φ560 | |
| Max workpiece length | mm | 3000 | |
| Spindle | Spindle Aperture Size | mm | Φ105 |
| Spindle nose | ISO 702/Ⅱ No.8 cam-lock type | ||
| Spindle ?speed | r/min | 12 ?step 30-1400 | |
| Spindle ?motor | kW | 7.5 | |
| Taper of center | MT | 5 | |
| Tool post | Number of station/Tool ?section | 4/25X25 | |
| Feed | Max X-axis travel | mm | 145 |
| Max Z-axis travel | m/min | 320 | |
| X-axis feed | mm/r | 65 sorts 0.027-1.07 | |
| Z-axis feed Z-axis feed | mm/r | 65 sorts 0.027-1.07 | |
| Metric thread | mm | 22 sorts 1-14 | |
| Inch thread | t.p.i | 25 sorts 28-2 | |
| Module thread | πmm | 18 sorts 0.5-7 | |
| DP thread | t.p.i. π | 24 sorts 56-4 | |
| Others | Coolant pump motor | kW | 0.06 |
| Machine length | mm | 4365 | |
| Machine width | mm | 1340 | |
| Machine height | mm | 1490 | |
| Machine weight | kg | 3200 |
Standard Equipment&Optional Equipment
| NO. | Name | Unit price in USD |
|---|---|---|
| 1 | Faceplate | 250/pcs |
| 2 | Chuck protection | 50/pcs |
| 3 | Tool post protection | 90/pcs |
| 4 | Living center | 70/pcs |
| 5 | Mounting pad and foot blot | 40/pcs |
| 6 | Curtain three bar protection | 250/pcs |
| 7 | Taper turning attachment | 450/pcs |
| 8 | Thread chasing dial | 120/pcs |
| 9 | Quick change tool post Italy type | 800 |
| 11 | Digital readout(2 AXIS) | 1 M：470 |
| 1.5 M：540 | ||
| 2 M：800 | ||
| 3M：1220 | ||
| 12 | Digital readout(3 AXIS) | 1 M：640 |
| 1.5 M：690 | ||
| 2 M：1000 | ||
| 3M：1500 |

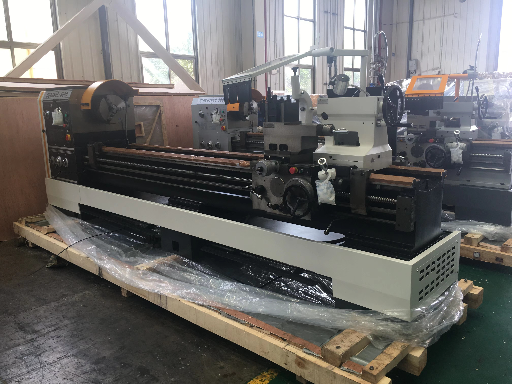

CQ6280C Universal Lathe Product Display Picture
Quality Assurance and After-Sales Service
- The equipment is a complete, brand-new complete set of equipment, with reasonable structure, high-strength stability, safety, reliability and durability, simple operation and convenient maintenance.
- The main parts of the equipment are made of high-quality materials. The selected mechanical, hydraulic, electronic and electrical components are advanced, high-quality and reliable series products, and meet the requirements of standardization and standardization.
- The design, manufacture and test of the equipment comply with the latest national standards, international industrial standards (ISO), and international electrotechnical standards (IEC).
- Take appropriate safety protection measures for the dangerous parts of the equipment that may cause personal or equipment injury.
- The main color of the equipment is: Standard color system: yellow/black or the color specified by the customer. Ensure that the paint coating thickness is uniform and beautiful.
Warranty service:
one year warranty( 12 months since customer receive & use the machine).
The manufacturer guarantees to provide life-long paid maintenance services for the product.
