Top Universal Lathe Manufacturers and Suppliers in China

CS6150(Spindle aperture diameter φ52 mm) Universal Lathe

At ANTISHICNC, We save your time so that you can find the most trustworthy lathe manufacturers in China, along with a set of reliable suppliers that offer standard or customized solutions.

Factory Sale CS6150 CS6250(Spindle aperture diameter φ52 mm) Universal Lathe Machine

The joint surfaces of the bed head box, bed, tailstock, pallet, and other key components undergo meticulous manual scraping and grinding. Each machine is rigorously tested to ensure exceptional accuracy and long-term stability.
Constructed from high-strength cast iron with added copper and chromium for enhanced durability, the machine tool features a bed guide rail with a width of 400mm. The guide rail is quenched to a depth of 5mm, significantly improving its wear resistance and ensuring overall stability.
A cycloidal pump is utilized for the lubrication of the machine’s bed head box. Designed to perform effectively in hot southern climates, it ensures optimal cleanliness and heat dissipation, extending the lifespan of bearings and gears.

Technical Proposal for Universal Lathe

Item	Unit	CA6150Cx1000
Capacity	Max swing over bed	mm	Φ500
	Max swing over slide	mm	Φ300
	Max workpiece length	mm	1000
	Machine bed width	mm	400
Spindle	Spindle aperture diameter	mm	Φ52
	Spindle nose	ISO (GB) C6
	Spindle taper	Mohs	No. 6
	Distance from spindle center to bed guide rail	mm	250
	Spindle speed	r/min	Front:24 step 10-1400r/min
	Back:12 step 12.5-1400r/min
	Spindle motor	kW	7.5
Tailstock	Quill dia./travel	mm	φ75/150
	Taper of center	MT	5
Tool post	Number of station/	4/25X25
	Tool section
	Tool post rapid movement speed（longitudinal）	m/min	4
	Tool post rapid movement speed（Cross）	m/min	2
	Turret turntable rotation angle	º	±90º
Feed	Max. Travel of upper toolpost	mm	140
	Max. Travel of lower toolpost	mm	320
	X-axis feed（standard）	mm/r	0.04-0.79
	X-axis feed（small feed）	mm/r	0.014-0.027
	X-axis feed（increase feed）	mm/r	0.86-3.16
	Z-axis feed（standard）	mm/r	0.08-1.59
	Z-axis feed（small feed）	mm/r	0.028-0.054
	Z-axis feed（increase feed）	mm/r	1.71-6.33
	Metric thread	mm	44 sorts 1-192
	Inch thread	t.p.i	21 sorts 2-24
	Module thread	πmm	39 sorts 0.25-48
	DP thread	DP	37 sorts 1-96
Others	Coolant pump motor	W	90
	Cooling water pump head	m	5
	Cooling water pump flow	L/min	25
	Machine length	mm	2650
	Machine width	mm	1140
	Machine height	mm	1750
	Machine weight	kg	GW2260/ NW 2140

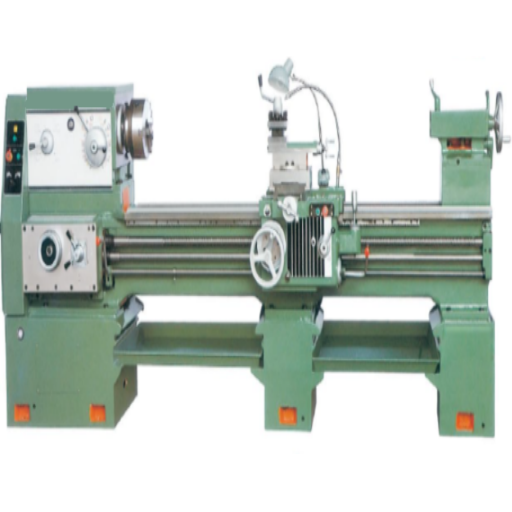

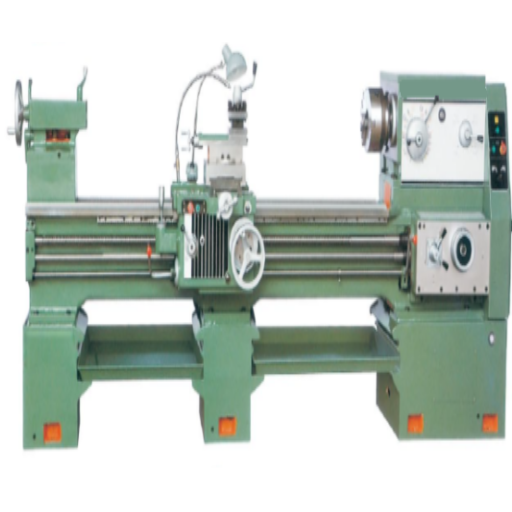

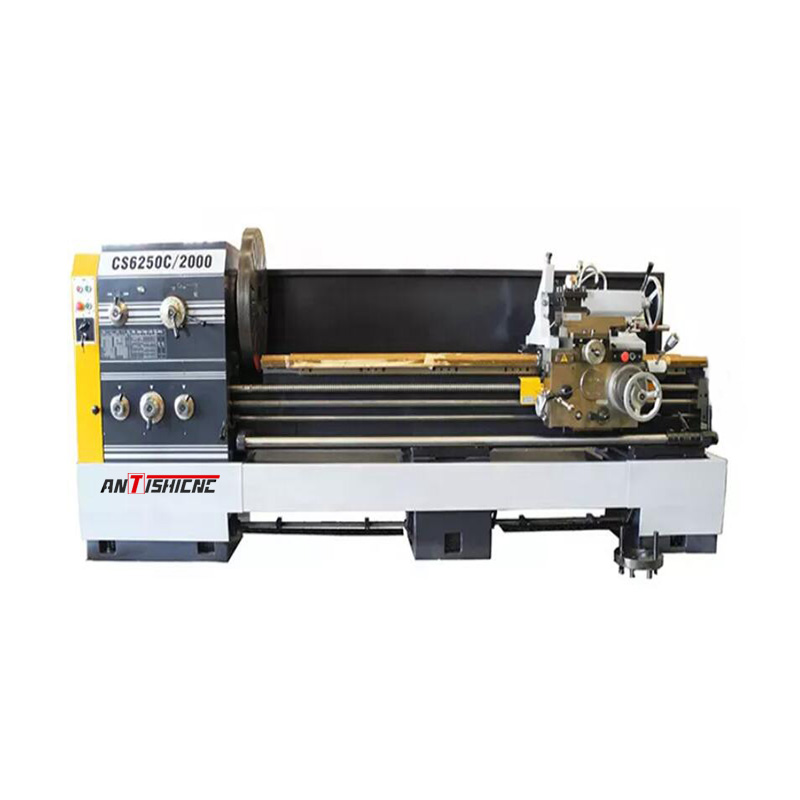

CS6150 Universal Lathe Product Display Picture

Quality Assurance and After-Sales Service

The main functional advantages of ANTISHI Lathe Equipment:

The equipment is a complete, brand-new complete set of equipment, with reasonable structure, high-strength stability, safety, reliability and durability, simple operation and convenient maintenance.
The main parts of the equipment are made of high-quality materials. The selected mechanical, hydraulic, electronic and electrical components are advanced, high-quality and reliable series products, and meet the requirements of standardization and standardization.
The design, manufacture and test of the equipment comply with the latest national standards, international industrial standards (ISO), and international electrotechnical standards (IEC).
Take appropriate safety protection measures for the dangerous parts of the equipment that may cause personal or equipment injury.
The main color of the equipment is: Standard color system: yellow/black or the color specified by the customer. Ensure that the paint coating thickness is uniform and beautiful.

Warranty service:

one year warranty( 12 months since customer receive & use the machine).

The manufacturer guarantees to provide life-long paid maintenance services for the product.
