Top TG560 CNC Tool Grinding Machine Manufacturers and Suppliers in China

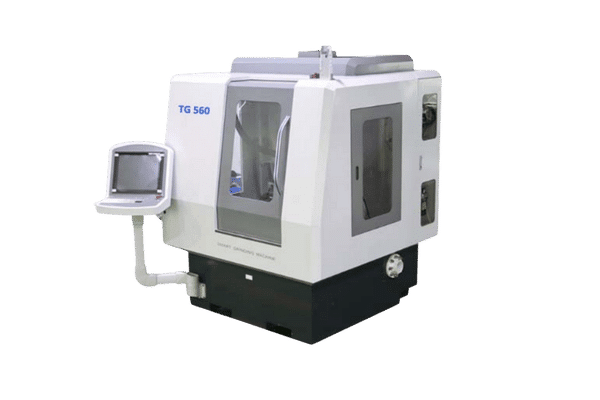

TG560 CNC Tool Grinding Machine

The newly developed 5-axis tool grinding machine, the TG560, developed by ANTISHI Company, is an economical tool grinding centre. It could produce and sharpen all kinds of milling cutters, drilling and forming tools. The CAD design of the machine is aesthetically pleasing, and the GUI is exceptionally easy to use. The machine uses natural stone pieces, which improve stability during operation.

Factory Sale TG560 CNC Tool Grinding Machine

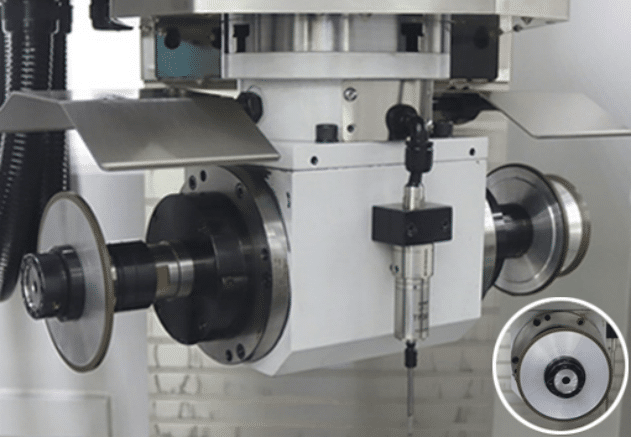

  • The high-precision spindles facilitate rapid positioning of up to 4 grinding wheels for different grinding operations.

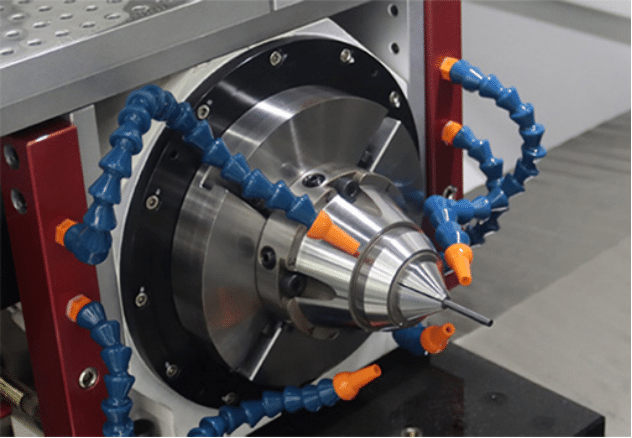

  • The workpiece spindle (A axis) operates with a SCHAUBLIN chuck on direct-drive pneumatic clamping for efficient workflow.

  • Exceptional performance with precision is obtained through a 5-axis SYNTEC CNC with a precision probe, integrated ball screw, and ball screw.

  • Fully enclosed configuration with movable doors, an electronic handwheel, and start/stop buttons, along with a foot switch, enables simple operation.

  • Simple maintenance is achieved through automatic cooling, lubrication, suction interface, an alarm buzzer, and an air-conditioned electrical box.

Factory Sale TG560 CNC Tool Grinding Machine

Technical Specifications of the TG560 CNC Tool Grinding Machine

Model NoTG560
CNC systemSYNTEC 210MA-5E
Grinding tools softwareANTISHI
Processing workpiece diameter200 mm
Max. processing workpiece length170mm
Max. processing workpiece groove depth20mm
Max. Workpiece weight10Kg
Grinding head Max. Power(electric spindle)11KW
Grinding wheels(CBN/diamond)Φ50～Φ200mm
Grinding head spindle rotation speed(frequency regulation)1000-8000rpm
Grinding head vertical travel(Z axis)360(-100-220)mm
Workable travel X axis/Y-axisX：460 / Y：400
Linear axis quick travel speed15m/min
Workpiece spindle rotation speed（A-axis） 500rpm
Rotation range of A-axis∞
A axis spindle hole taperISO50
Pneumatic clamping range3~20mm
SCHUNK collects clamping range(optional)3~32mm
Grinding head swing Max rotation speed(C-axis)30rpm
Rotation range of C-axis325°（+230°~-95°）
Workpiece spindle center height150mm
Workpiece spindle radial runout≤0.005mm
Grinding head spindle radial runout≤0.005mm
Air cylinder clamping force adjusting range500-580kg
Linear-axis resolving power0.00lmm
Rotation axis resolving power0.00l°
Cooling motor power3P
Cooling motor capacity200L
VoltageAC 380V 50HZ 3 phase
Total power15KW
Machine size1700×1520×2100mm
Machine weight4T

Part of the grinding samples shows

Part of the grinding samples shows

Strong power&Stable performance

1. Optional: Automatic loading and unloading device
2. Ultra-Precision Screw: adopts an imported high-precision ball screw, smooth operation, and long life.
3. High precision guide: with high-strength guiding accuracy and smooth motion.
4. Intelligent panel: a self-contained system panel, easy to operate, and improves work efficiency.
