Top TG580 Five Axis CNC Tool Grinding Machine Manufacturers and Suppliers in China

TG580 Five Axis CNC Tool Grinding Machine

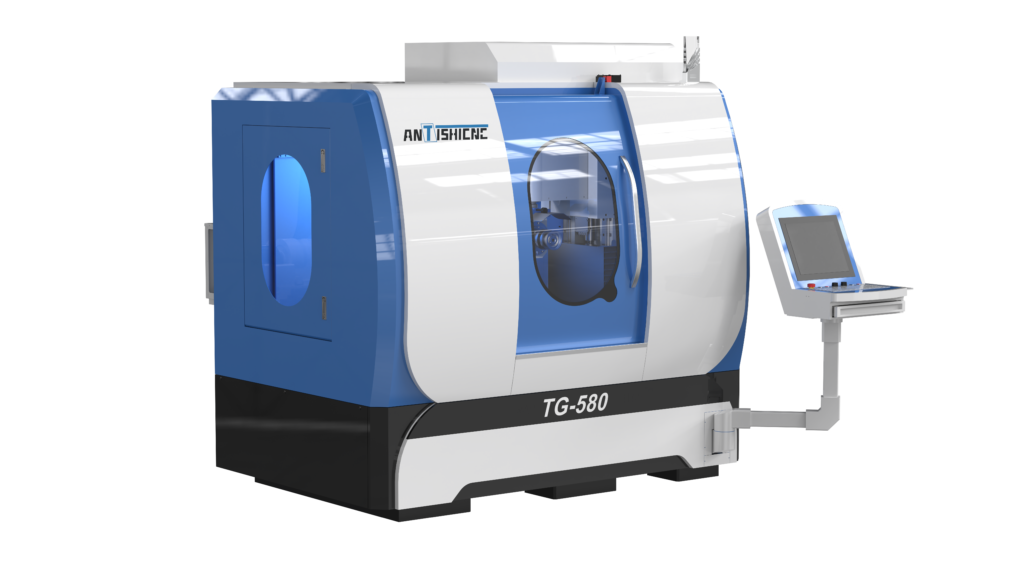

The latest addition to ANTISHI’s equipment line is the TG580, which is a five-axis, five-link CNC tool grinder. Very powerful for grinding, the CNC tool is great for producing or grinding drilling tools, milling tools, micro milling tools, and forming tools.

Factory Sale TG580 Five Axis CNC Tool Grinding Machine

  • The front, back, and end face grinding of tools and grinding of the 2-4 grinding wheels is an EE spindle's output grinding capability enhanced by the 18kW direct-drive spindle.

  • The direct-drive workpiece spindle features pneumatic clamping for precision, unlike the DD direct drive, NSK bearings, or SCHAUBLIN W25 collets.

  • For the rotary axis, prolonged high processing dimensional rotary axis accuracy is enabled with double DD direct drives and full closed-loop control.

  • Manuals, sliding doors, electric handwheels, and easy operation features are encompassed in the fully enclosed design, along with cooling and lubrication mist absorption systems.

Factory Sale TG580 Five Axis CNC Tool Grinding Machine

TG580 Five Axis CNC Tool Grinding Machine Technical Parameter

Model NoTG-580
CNC systemSYNTEC 210MA-5E
Grinding tools softwareANTISHICNC
Processing workpiece diameter200 mm
Max. processing workpiece length200mm
Max. processing workpiece groove depth20mm
Max. Workpiece weight20Kg
Grinding head Max. Power(electric spindle)18 KW
Grinding wheels(CBN/diamond)Φ50～Φ200mm
Grinding head spindle rotation speed(frequency regulation)0-8000rpm
Grinding head vertical travel(Y axis)350(-100-250)mm
Workable travel X axis/Y-axis/Z-axisX：520 / Y：540 / Z：350
Linear axis quick travel speed10m/min
Workpiece spindle rotation speed（A-axis） 200rpm
Rotation range of A-axis360°
A axis spindle hole taperISO50
Pneumatic clamping range3~20mm
SCHUNK collects clamping range3~32mm(Optional)
Grinding head swing Max rotation speed(C-axis)75rpm
Rotation range of C-axis320°（-225°~95°）
Workpiece spindle center height135mm
Workpiece spindle radial runout≤0.005mm
Grinding head spindle radial runout≤0.005mm
Air cylinder clamping force adjusting range440-480kg
Linear-axis resolving power0.001mm
Rotation axis resolving power0.001°
Cooling motor power3P
Cooling motor capacity200L
VoltageAC 380V 50HZ 3 phase
Total power20KW
Machine size2200×1600×2400mm
Machine weight5T

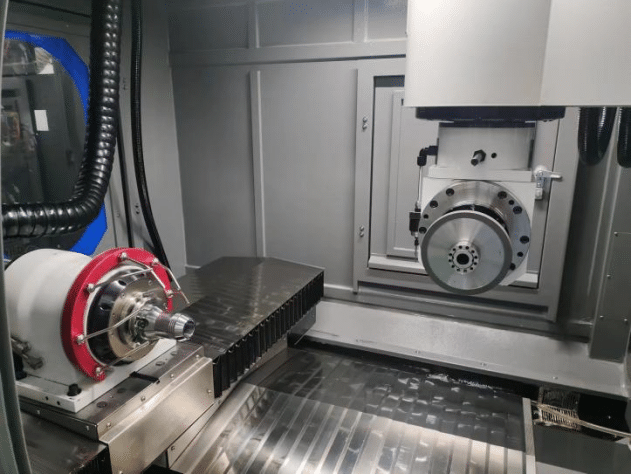

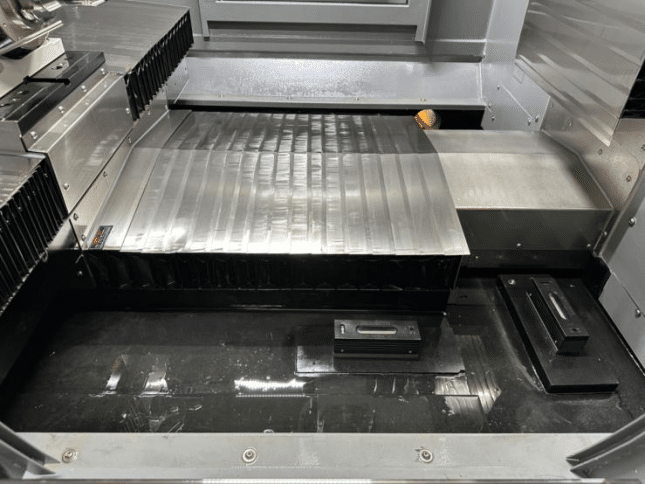

Part of grinding samples show

Part of grinding samples show

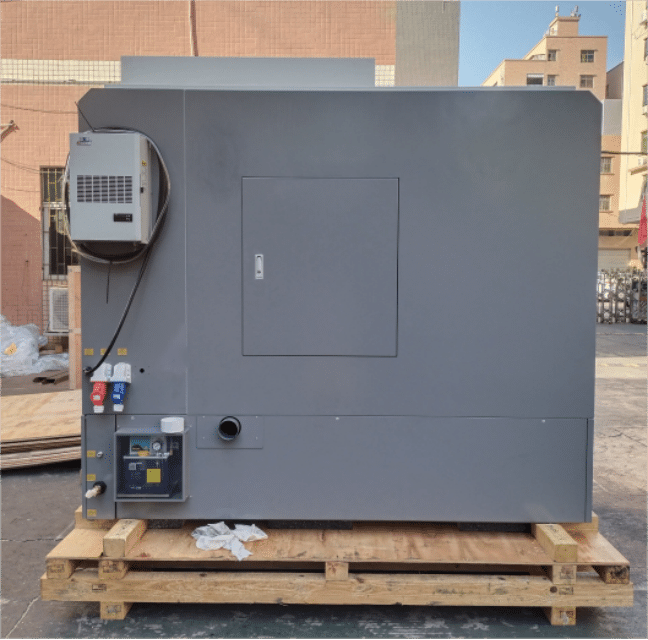

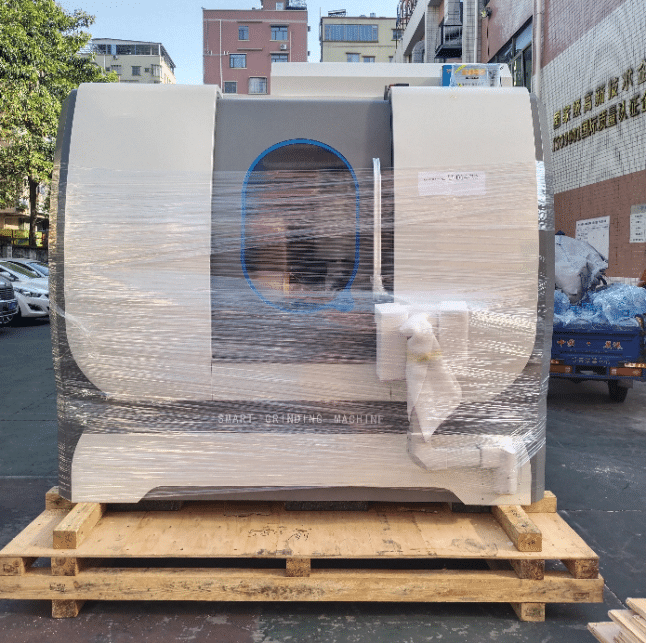

Product reference picture
