Top X3(Manual) Grinding Wheel Dresser Manufacturers and Suppliers in China
X3(Manual) Grinding Wheel Dresser

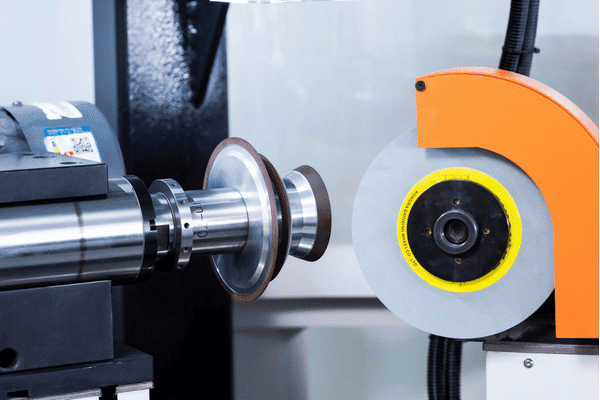

X3 is predicated upon the principle of the difference of the speeds of the dressing wheel and the wheel to obtain the shaping of the dressing wheel contour. The apparatus is capable of automating the dressing of diamond, CBN, and multiple wheels, as well as of advanced, plane, angles, and arc-shaped wheels. The machine is characterized by easy handling and high precision.
Factory Sale X3(Manual) Grinding Wheel Dresser
Technical Parameter
| Diamond Wheel Components (Dressed Wheel Components) | |
|---|---|
| Diamond seconds wheel spindle interface | Optional according to customer requirements |
| diamond grinding wheel diameter | Max: 420mm |
| Standard: 250~300mm | |
| Small diameter diamond grinding wheel | φ20mm |
| Maximum thickness of diamond seconds wheel | 20 mm |
| Dressing wheel aperture | φ31.75mm |
| Spindle speed of diamond grinding wheel | 50-1000rpm (Step-less speed regulation) |
| Diamond grinding wheel spindle cross slide X working stroke | 135 mm |
| Diamond end wheel spindle cross slide X additional manual stroke | 150 mm |
| Diamond grinding wheel spindle cross slide Y working stroke | 135 mm |
| Diamond grinding wheel spindle cross slide Y additional manual stroke | 150 mm |
| X, Y cross slide magnetic scale resolution | 0.001mm |
| Diamond grinding wheel can trim arc radius | R0.1-30mm |
| Silicon Carbide Wheel Components (Dressing Wheel Components) | |
| Dressing wheel (SIC) size | φ180×10×φ31.75 mm |
| Dressing wheel speed | 250-2500 rpm(Stepless speed regulation) |
| Dressing wheel swing times | 0-50/per minute (adjustable speed) |
| Dressing wheel left and right swing distance | 0-45/mm(adjustable） |
| total power | 2.0KW |
| Silicon carbide grinding wheel motor | 0.75KW |
| Dressed diamond wheel motor | 0.75KW |
| Reciprocating swing motor power | 25W |
