Top X6 CNC Grinding Wheel Dresser Manufacturers and Suppliers in China

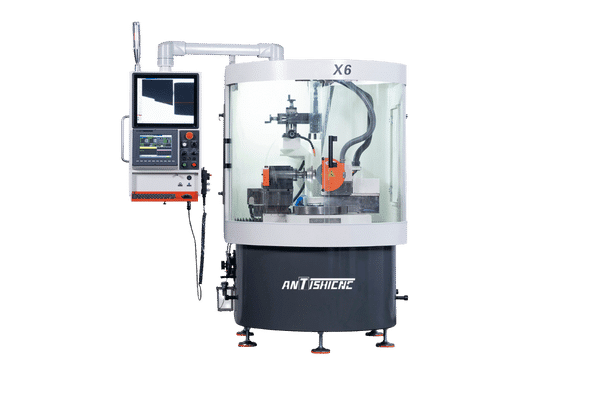

X6 CNC Grinding Wheel Dresser

X6 CNC governs the industrial precision tool grinding wheel dresser as its zenith and focuses on satisfying manufacturers who require surface quality and wheel life longevity. Featuring an intricate design, this model calibrates the wheel while preserving the geometry.

Factory Sale X6 CNC Grinding Wheel Dresser

  • A two-upper-control electronic hand-wheel with two axes + A CNC grinding wheel dressing system with three axes of spatial coordination.

  • It can machine the trimming grinding wheel spindle sides, tops, rims, obtuse angles, and arcs.

  • SIC silicon carbide grinding wheel can rotate, reciprocate crosscut, and tool feed as well as adjust and slice automatically.

  • Optional zoom or fixed high camera and clear measuring lens with perspicuous imaging to achieve precise height measuring.

  • The 10mm acrylic cover on top constitutes better protection as well as being more eco-friendly and tidier.

Factory Sale X6 CNC Grinding Wheel Dresser

X6 CNC Grinding Wheel Dresser Technical Parameter

SpecificationsX6
Spindle of the grinding wheel to be dressedStandard BT40 interface spindle, optional customer interface spindle
Outer diameter of the grinding wheel to be dressed30~300mm
Grinding methodDry repair, water mist repair and wet repair
Dust collection device and grinding fluid filtration systemOptional
Power supply voltageThree-phase 380V/50HZ
Total power3KVA
Maximum diameter of the grinding wheel to be dressedφ300mm (exceeding customizable)
Minimum diameter of the grinding wheel to be dressedφ30mm (exceeding customizable)
Maximum width of the grinding wheel to be dressed40mm (exceeding customizable)
Speed ??of the grinding wheel to be dressed50~1000rpm (stepless speed change)
Left and right movement distance of the grinding wheel to be dressed X-axis135mm (can drag the grinding wheel spindle base, increase the stroke to 300)
Forward and backward movement distance of the grinding wheel to be dressed Y-axis100mm
Diameter of the dressing wheel (silicon carbide)φ200 (or φ250) × 10x 31.75mm
Speed of the dressing wheel (silicon carbide)Max 2800rpm (stepless speed change)
Number of swings of the dressing wheel (silicon carbide)0~50Hz (stepless speed change)
Swing length of the dressing wheel (silicon carbide)0~50mm (adjustable)
Resolution of the grating scale (magnetic scale, angle scale)0.001mm/0.01°
CCD and lensStandard ordinary lens, optional high-resolution camera, variable or fixed magnification high-definition lens
Upper light sourceLED light
Backlight sourceUsing large diameter backlight technology
Computer host, high-definition LCD screen1 set
Computer measurement system1 set
MagnificationOptional
Measurement functionThe real image and CAD drawing can be zoomed in synchronously for pressure line comparison
Data displayThe position of the grinding wheel being dressed can be displayed on the measurement software
