Top 2M9120A Universal Tool Grinding Machine Manufacturers and Suppliers in China

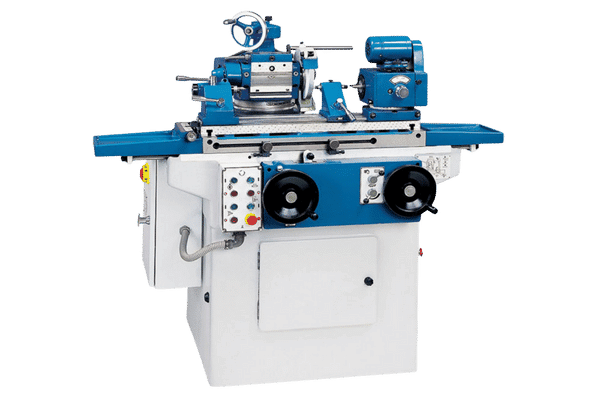

2M9120A Universal Tool Grinding Machine

The 2M912A Universal Tool Grinding Machine is one of a kind and achieves grinding with utmost precision across a range of cutting tools. Built for modern workshop precision grinding requirements, this machine is especially useful for sharpening and tool making as it achieves versatility and accuracy with drills, milling cutters, reamers and other cutters with complex shapes.

Factory Sale 2M9120A Universal Tool Grinding Machine

  • With considerable functions, the Multi-Grind can do external, internal, taper, tool, and light surface grinding.

  • Consistent grinding quality is achieved by a special designed three-point bearing which minimizes temperature change.

  • With hydraulic and manual longitudinal feeds, longitudinal feeds can be achieved up to 7 m/min with automatic direction change.

  • The grinding headstock allows the use of two wheels and possesses transverse and vertical movement, rotation, and three adjustable speeds.

  • These include the central lubrication system, the robust construction to minimize vibration, and the easily accessible electrical components, which are stored in a control cabinet.

Factory Sale 2M9120A Universal Tool Grinding Machine

Technical Parameters for 2M9120A Universal Tool Grinding Machine

Working area
Grinding diameter200 mm
Workpiece length (max.)500 mm
Workpiece weight (max.)10 kg
Workpiece width surface grinding50 mm
Workpiece length surface grinding200 mm
Grinding length200 mm
Inside grinding measures, optimalØ10-50 x 75 mm
Outside grinding measure, maximumØ5-50 x 400 mm
Tool grinding measure200x500 mm
Table swivel range (max.)+45° / -30°
Travels
Travel Z-axis480 mm
Feed
Feed per hand-wheel rotation X-axis, fine1 mm
Feed per hand-wheel rotation X-axis, rough4 mm
Feed per scale division X-axis, fine0,005 mm
Feed per scale division, X-axis, rough0,02 mm
Scale division of height adjustment0,01 mm
Tailstock
Height adjustment per handwheel rotation1 mm
Tailstock taperMT 2
Tailstock quill stroke14 mm
Grinding headstock
Grinding spindle speed2.500 rpm
Inside grinding spindle speed13.500 rpm
Grinding headstock swivel range± 90 °
Headstock
Working headstock swivel range± 90 °
Working spindle taperMT 2
Working spindle speed(3) 110 - 300 rpm
Chuck diameter100 mm
Drive capacity
Machine drive capacity2,525 kW
Motor rating main drive1,1 kW
Measures and weights
Grinding wheels dimensions200x20x75 mm
Grindstone dimensions, inside grinding (min.)10x10x3 mm
Grindstone dimensions, inside grinding (max.)25x20x6 mm
Overall dimensions (length x width x height)1.520x1.350x1.400 mm
Weight1.300 kg
