Top MQ6025A Universal Tool Grinding Machine Manufacturers and Suppliers in China

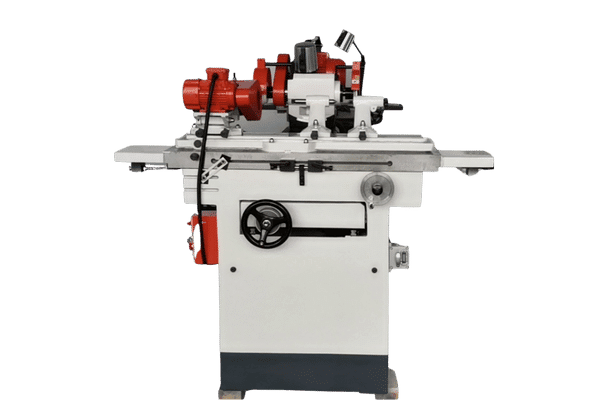

MQ6025A Universal Tool Grinding Machine

The MQ6025A Universal Tool Grinding Machine provides tremendous range and accuracy for the manufacturing and servicing of tools. Robust and rigid cast iron construction provides stability, and the variable speed spindle accommodates varying materials. Tool geometries, capable of supporting different contours, make the machine even more versatile.

MQ6025A:Optional Parts& Equipment

  • 50D Endmill Grinder: Straight shank and MT4 tapered shank end mill front end and helical edge, side milling cutter and other tools with 3-28mm diameter.

  • 50K Universal Multi-Function Tool Grinder : Drills, step drills, thread taps, chamfering knives, front end of end cutting knives, side milling cutter, drawing sticks and other tools with 3-50mm (straight shank and taper)

  • 50S Electric Three-Jaw Grinder: Grinds the inner and outer circles, the round blades, etc.

Factory Sale MQ6025A

MQ6025A Universal Tool Grinding Machine - Technical Specifications

Technical ParameterMQ6025A
Maximum swivel diameter of the work-piece on the center250mm
Maximum distance from centers700mm
Work surface size (LxW)940x135mm
The maximum vertical movement of the table480mm
The maximum rotation angle of the worktable120°(60°)
The maximum movement of the grinding head (or slide) in the horizontal direction225mm
The minimum distance between the center line of the grinding wheel and the center line of the center50mm
The maximum distance between the center line of the grinding wheel and the center line of the center265mm
Maximum vertical movement of grinding head270mm
The center line of the grinding wheel rises to the center line of the center200mm
The center line of the grinding wheel is lowered to the center line of the center65mm
The rotation angle of the grinding head is in the horizontal plane360°
The rotation angle of the grinding head is in the vertical plane30°（±15°）
Spindle end taperMors 3# Taper MT 3#
Grinding head motor (50HZ)Power0.85/1.1KW
Rotating speed1400/2800rpm
Grinding head spindle speed3010/6010rpm
Grinding cylindrical attachment motor (50HZ)Power0.25KW
Rotating speed1400rpm
Machine tool minimum outline size (LxWxH)165X115X150（cm）
Machine weight940kg
