ANTISHICNC proudly engineers CNC lathes that meet the highest standards of precision, ruggedness, and adaptability. As a leading manufacturer based in China, we empower companies worldwide to achieve superior production outcomes, supported by state-of-the-art control systems and customized configurations.

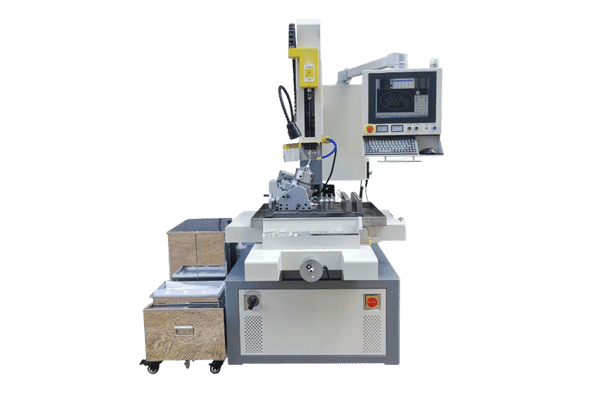

The Z-axis has 380mm of travel and can clamp electrodes of lengths up to 500mm long, which lowers electrode loss to an estimated 100mm. In tandem with super-low consumption circuits, the electrode is used at exceptionally high transfer rates.
To achieve high speeds, the Z-axis is equipped with subdivision drove hybrids — stepper motors. The motors allow for the entire travel to only take 10 seconds, which decreases waiting times and increases efficiency. The machine head is also electrically driven.
The simplifications made to the hardware illustrate how the system is 'humanized' in its software and function.
| NO. | Specifications | MS-DZ430B |
|---|---|---|
| 1 | Electrode diameter(mm) | Φ0.2-Φ3.0 |
| 2 | W axis/ Machine head travel(mm) | 250 |
| 3 | Z axis/ Spindle servo travel(mm) | 380 |
| 4 | Max. speed of spindle(mm) | 1500 |
| 5 | Spindle rotation speed(rpm) | 0-200 adjustable |
| 6 | Worktable size(mm) | 440*320 |
| 7 | X*Y travel(mm) | 400*300 |
| 8 | Max distance from guide to working table(mm) | 300 |
| 9 | Max. Working current (A) | 30 |
| 10 | Max.input power(KW) | 4 |
| 11 | Power supply(V/HZ) | 380/50 |
| 12 | Digital display | 3-axis |
| 13 | Working liquid supply device | Pneumatic pump |
| 14 | Max.working liquid pressure(Mpa) | 8 |
| 15 | Max. worktable load(kg) | 300 |
| 16 | Overall dimension of machine(W*L*H) | 1000*1000*2000 |
| 17 | Overall dimension of machine(W*L*H) | 700 |
| 18 | X、Y、Z configurations | X,Y,Z axis precision ball screw |
| 19 | Z axis Taiwan HIWIN linear guideway | |
| 20 | Z axis stepper motor subdivision drive |
