Top 500GS3 AC Servo Medium Wire Cutting Machine Manufacturers and Suppliers in China

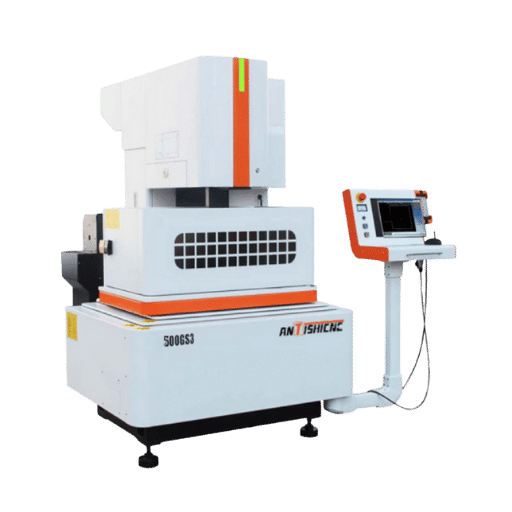

500GS3 AC Servo Medium Wire Cutting Machine

The 500GS3 AC Servo Medium Wire Cutting Machine is tailored to maintain precision and effectiveness in complex machining while guaranteeing dependability.

Factory Sale 500GS3 AC Servo Medium Wire Cutting Machine

Upgraded Model: The enhancement of the 500GS1 with five-axis CNC and four-axis linkage is the 500GS3 model.
The 500GS3 model still retain the former 's advanced features like micron-level "Z" axis Control, linear guide rails, and belt-driven motors which are then classified as 'Precision Design.'
The model is one of the first in China to feature such a design used for stable medium feeding wire-cutting which marks its Innovative Structure.
To achieve and maintain the model's intended purpose, it is equipped with German ZEISS 3D measuring devices for meticulous inspection, which fulfills the model's Quality Assurance.

500GS3CNC AC Servo Medium Wire Cutting Machine Technical Parameter

Specifications		Unit	500GS3
Machine	Occupation size (LWH)	mm	185014002000
	Total weight of equipment	kg	2500
Worktable	Table size (W*L)	mm	720*520
Travel	X-axis travel	mm	500
	Y-axis travel	mm	400
	Z axis travel	mm	260
CNC power supply	Pulse Width	us	1-250
	Output pulse gap to pulse width ratio		4—15
	Number of low pressure pipes	pcs	0-15
	Number of high pressure pipes	pcs	0-3
	servo speed	gears	0-15
	servo tracking	gears	1-199
	Servo speed limit	gears	1-500
	Wire speed	gears	0-3
	Cutting times	time	1-7
	Minimum Mechanical Drive Equivalent	um	1
	Pulse resolution	um	0.4
Processing capacity	Spindle travel (electrically adjustable)	mm	260
	Maximum cutting slope/work-piece thickness		±6°/80
	The maximum load capacity of the workbench	kg	500
Precision	Positioning accuracy X/Y	mm	≤0.01
	Repeat positioning accuracy X/Y	mm	≤0.005
	Best multi-knife cutting accuracy	mm	≤0.005 (diameter 18 square height 25mm, cut one and trim two, material SKD11 or Cr12, HRC58)
	Optimum Surface Roughness	um	Ra≤0.7 (square 10mm10mm25mm, material SKD11 or Cr12, HRC58)
Processing Efficiency	Maximum cutting efficiency	mm2∕min	≥220
	Common cutting efficiency	mm2∕min	≥150
	Maximum processing current	A	≤10
	Processing power no-load voltage	V	100
	Power consumption	KW	≤2.8
Wire System	Wire Diameter	mm	∮0.12-∮0.2
	Wire drum speed		Frequency
	Tight wire method		Two-way automatic wire tightening
	Wire speed	m/s	3-12
Working Fluid Tank	Filtration accuracy	um	＜10
	Filter Method		Slow Wire Filter
	Working Fluid		Special Cutting Fluid
Environment And Electricity	Electricity		380V±10% / 50/60Hz / 2kVA
	Temperature		Temperature 15-30℃ / Humidity 40-80%
	Barometric Pressure	kpa	86-106kpa
