Top AT Series Plate Metal Sheet Cutting Machine Manufacturers and Suppliers in China

AT Series Plate Metal Sheet Cutting Machine

It is designed with a robust steel framework configured with servo motors while accounting for minimal waste. It is capable of executing cuts at a maximum speed of 40 meters/min, which makes it ideal for automotive, precision fabrication, and construction industries while maintaining a tolerance of 0.1 mm. Its touchscreen interface allows for effortless operations while optimizing machine pausing with self-restoring safety systems and a built-in coolant.

Factory Sale AT Series Plate Metal Sheet Cutting Machine

  • Unmatched Excellence: AT Series machines are meticulously engineered with top-tier parts and subjected to stringent quality control assessments.

  • New Technology: To give you innovative, effective, and technologically advanced solutions, we’re dedicated to spending on R&D for integrating new developments in fiber laser technology.

  • Continous Customer Care: Our skilled technicians provide full service training, installation, and ongoing support to facilitate the seamless operation of our client’s processes.

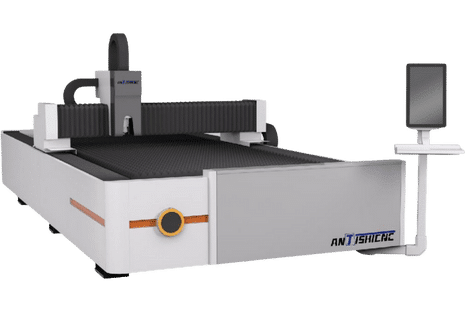

AT-3015 Plate Metal Sheet Laser Cutting Machine

AT-3015 Plate Metal Sheet Laser Cutting Machine

  • High cutting precision: the laser beam can cut through materials with high precision while accomplishing most of the cutting needs.

  • Fast cutting speed: the laser beam cutting keeps a fast speed while having a high degree of numerical control which satisfies mass production.

  • Simple operation: the laser cutting machine can be operated through a numerical control system which makes the operation less complex.

  • Wide range of materials: a laser cutting machine can cut through a wide range of materials.

Technical Parameter for AT-3015

ModelAT-3015 1500w
Working Area3000mm×1500mm
X/Y/Z Travel3000/1500/150mm
Laser Wavelength1080nm
Laser PowerRaycus 1500W~12000W CE
Working Life of Fiber SourceMore than 100000 hours
Laser Beam quality<0.373mrad
Laser Cutting HeadRaytools Automatic Focus Laser
Position TypeRed Dot Pointer
Cutting Thickness0.5-12mm (for Large Quantity Process)
Max. Idle Running Speed150M/min
Geometric Position AccuracyWithin ±0.05mm/M
Reorientation AccuracyWithin ±0.03mm/M
Lubrication SystemElectrical Motored
Min. Line Width±0.02mm
Power Consumption≤160KW
Transmit systemDual Rack & Pinion type
Auxiliary Gas for Cutting/Assist systemOxygen, Nitrogen, Air/Germany SMC
Compatible SoftwareAutoCAD, CorelDraw, etc.
Handle ControlWIFI Wireless Control Handle
Graphic FormatDXF/PLT/AI
Power Supply Voltage380V/3Ph/50Hz
Warranty2 Years

Large Format Gantry Laser Cutting Machine

  • Exchangeable Platform,High Efficiency

  • CE, FDA, and ETL Certified, Compliant with American and European Specifications.

  • Low structural complexity accompanied by effortless operational and mechanical soundness entails economical upkeep.

  • The large field laser cutting machine is two times the size of the traditional CO2 laser cutting machine of equal power.

Large Format Gantry Laser Cutting Machine

Large Format Gantry Laser Cutting Machine Models

ModelAT-13025LMAT-14032LMAT-25032LM
Cutting range13000*2500mm14000*2500mm25000*3200mm
Laser power12000-30000W12000-30000W12000-30000W
Repositioning accuracy0.02mm0.02mm0.02mm
Max.moving speed150m/min150m/min150m/min

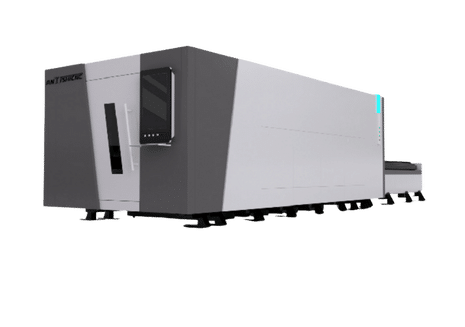

AT-3015HF Full Cover Fiber Laser Cutting Machine

AT-3015HF Full Cover Fiber Laser Cutting Machine

  • Small heat deformation, no contact cutting;

  • High speed, linear cutting;

  • Eliminating carbon emissions, green cutting;

  • Automated cutting is a breeze, so higher effectiveness in machining;

  • Purchasing is much cheaper in comparison to machining, saving up to 50%.

Technical Parameter AT-3015HF

ModelAT-3015HF
Working Area3000mm×1500mm
X/Y/Z Travel3000/1500/150mm
Laser Wavelength1080nm
Laser PowerRaycus 1500W to 6000W CE
Working Life of Fiber SourceMore than 100000 hours
Laser Beam quality<0.373mrad
Laser Cutting HeadRaytools Automatic Focus Laser
Position TypeRed Dot Pointer
Cutting Thickness0.5-22mm (for Large Quantity Process)
Max. Idle Running Speed150M/min
Geometric Position AccuracyWithin ±0.05mm/M
Reorientation AccuracyWithin ±0.03mm/M
Lubrication SystemElectrical Motored
Min. Line Width±0.02mm
Power Consumption≤160KW
Transmit systemDual Rack & Pinion type
Auxiliary Gas for Cutting/Assist systemOxygen, Nitrogen, Air/Germany SMC
Compatible SoftwareAutoCAD, CorelDraw, etc.
Handle ControlWIFI Wireless Control Handle
Graphic FormatDXF/PLT/AI
Power Supply Voltage380V/3Ph/50Hz
Warranty2 Years

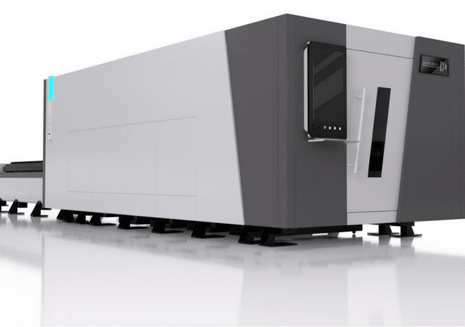

AT-6020HF Full Cover 12kw Fiber Laser Cutting Machine

  • The AT-6020HF Fiber Laser Enclosed Cutting Machine has on offer protective cover structure, wide format, sound and thick plate processing stability.

  • Fully enclosed protective design, robust and large format cutting under high power, high speed with lofty enclosure discretion provides the system with an enhanced equipment standard positioning.

  • The Original design features smokeless cutting, time-sharing partition subsection dust pumping and heat, thus more ecology protective system.

AT-6020HF Full Cover 12kw Fiber Laser Cutting Machine

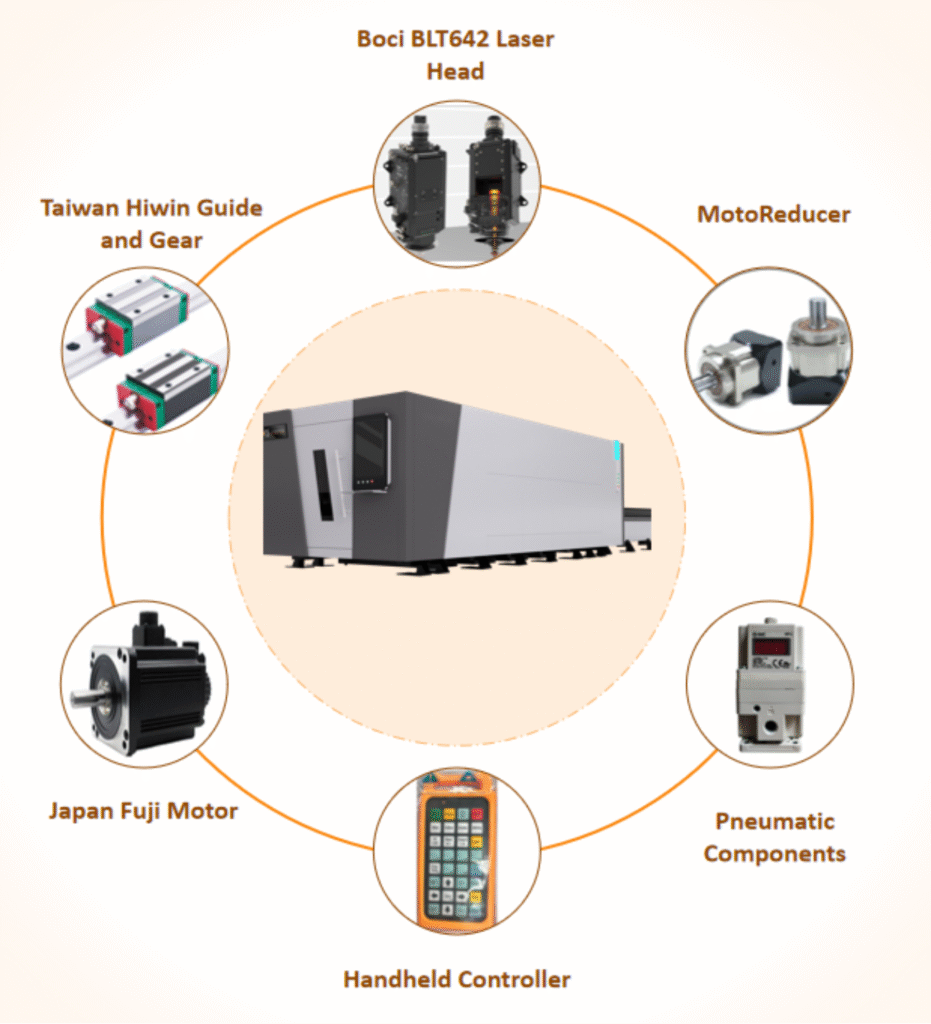

Components of AT-6020HF Fiber Laser Enclosed Cutting Machine

Components of AT-6020HF Fiber Laser Enclosed Cutting Machine

Sheet Metal Cutting Machines: Exploring Laser Cutters and More

Sheet metal cutting is a high-precision craft supporting multiple industries, including vehicle manufacturing, aerospace, construction, and manufacturing. Several tools are available for the process, but mainly, sheet metal cutting machines are instrumental in converting raw materials into accurate finished parts.
