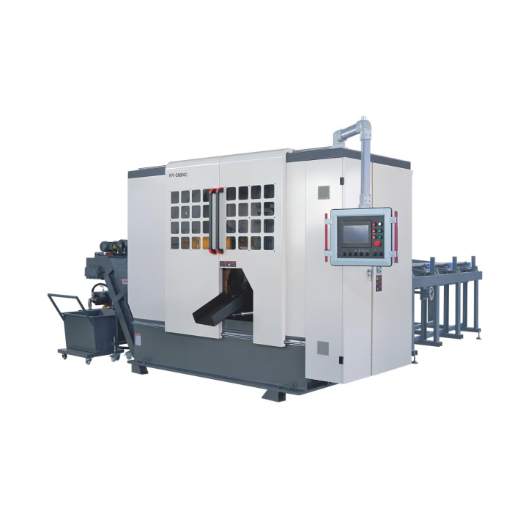

HY-230NC Automatic PLC control Circular Sawing Cutting Machine

Quality Assurance and After-Sales Service

1. This equipment is a general-purpose high-speed metal circular saw, especially suitable for high-speed precision cutting of various non-ferrous metal bars.
2. Parameters such as cutting length and residual material length are input through the man-machine interface.
3. It can meet the cutting of various non-ferrous metals with a maximum diameter of 180mm.
4. It adopts Japan Mitsubishi servo motor and high-precision grinding grade ball screw to feed, the feeding length is accurate, the single feeding length can reach 650mm, and the cutting length of multiple feeding can be set without limitation.
5. Use TCT toothed saw blade with outer diameter of 560mm and thickness of 3.0mm as cutting tool.
6. The spindle speed has the function of step-less speed regulation, which can adapt to different materials.
7. The cutting feed mode of the spindle box is 30-degree oblique cutting, driven by a servo motor, and the feed speed can be adjusted arbitrarily.
8. The feeding system is designed with slow positioning function.

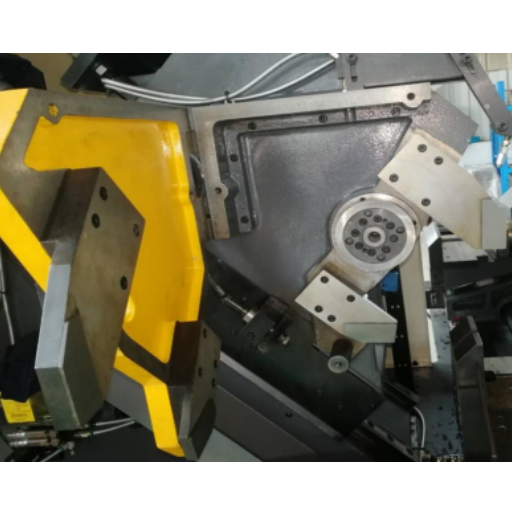

9. The cutting clamp adopts a three-point universal clamping method, and there is no need to replace the clamping device for different material shapes.
10. With no material shutdown function and automatic calculation shutdown function, it is convenient to manage.
11. Equipped with a quasi-dry saw blade lubrication and cooling device to improve the service life of the saw blade.
12. The equipment is equipped with an automatic lubrication device, which can regularly and quantitatively inject oil into parts such as lead screw guides.
13. With manual and automatic functions.
14. The entire working cycle: feeding, clamping, cutting, and discharging are all carried out automatically by CNC, and the manual is responsible for feeding and completing material collection.

Warranty service:

one year warranty.

The manufacturer guarantees to provide life-long paid maintenance services for the product.
