FX Series Centerless Grinding Machines

The FX Series Centerless Grinding Machines ensure unrivaled precision with high volume output through remarkable efficiency. Automated loading paired with CNC controls that deliver accuracy to within ±0.0001” alongside minimal labor requirements makes these machines productivity powerhouses.

Factory Sale FX Series Centerless Grinding Machines

  • The body is entirely made of cast iron FC-30 and receives advanced heat treatment along with high grade precision machining with world class equipment which ensures durability along with micron-level definition.

  • The spindle is made up of SNCM-21H alloy steel and is fully heat treated to HRC-62⸸ with a 1.5mm hardening layer which provides exceptional spindle performance.

  • The Taiwan Delta/YASKAWA servo motor connected to the adjusting wheel provides a motor able to control precise speeds of 0-350rpm which enhances the overall grinding effectiveness and precision of the machine.

  • Includes a two-axis servo sand-repair system for taper and arc grinding with dovetail groove spade structure for stability and accuracy during the operation.

Model FX-12CNC-3/Model FX-12CNC-4 Technical Parameters

ModelUnitMKZW1350TA*80ITEMUnitFX-12CNC-4
General capacityStandard machine processing range (diameter)mm 0.5-40
Distance between centersmm8000Grinding wheel size (OD* width *ID)mmΦ305*150*Φ120
Adjusting wheel size (OD* width * ID)mmΦ205*150*Φ90
Dia. Ground(O.D)mm40~500(without steady rest)Grinding wheel speedRPM1950
40~200(with steady rest)Maximum linear speed of grinding wheelm/s35
Max. length ground(O.D)mm8000Feed ratemm/min8000
Adjust wheel speedRPM0-350 Electrodeless
Max. weight between centersKg1500Grinding wheel drive motorKW5.5
Max. weight with support restKg3000Adjustment wheel servo motorKW2
Range of rest supportingmmAutomatic sand repairing servo motorKW1.5
Work HeadHydraulic pump drive motorKW0.75
Center taper(MT)MTMetric 140#/MT6Cooling pump drive motorKW0.125
Spindle speedr/min6~60Adjusting wheel feed accuracymm0.001
Wheel HeadAdjustment wheel fine adjustment handwheelmm0.1/RPM 0.001/Scale
MPG feed per.GrammMinimum feed accuracymm0.001
Hand feed per. revpositioning accuracymm≤0.003
Max wheel size(OD*W*ID)mm750*75*305Repeatabilitymm≤0.002
Max. dimension of wheel(OD¡ÁW¡ÁID)Spindle runout accuracymm≤0.002
Wheel peripheral velocity speedm/s35RoughnessumRa0.2
Wheel peripheral velocityPrecisionmm0.002
Cross SaddleAdjust wheel tilt angleDegree+6°～-5°
MPG feed per. revmmAdjust wheel rotation angleDegree±5°
Longitudinal speedm/min0.050-4Mechanical Dimensionsmm1800×1400×1450
Longitudinal traverse speed of tablePacking sizemm2350×1650×1770
Tail StockMachine weightKG2000
Center taperMTMT6Packing weightKG2300
Quill travelmm70mm
Cooling System
FlowL/Min50

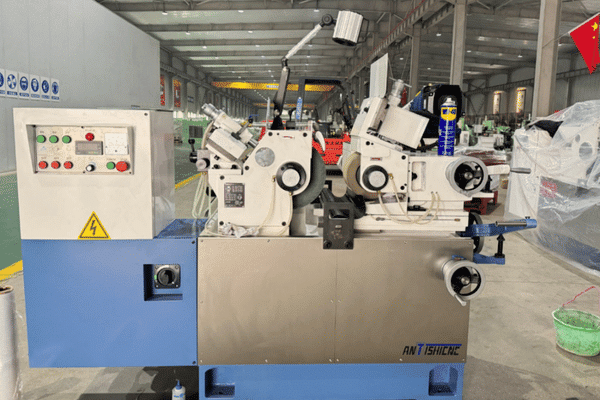

Manual High Precision Centerless Grinding Machine

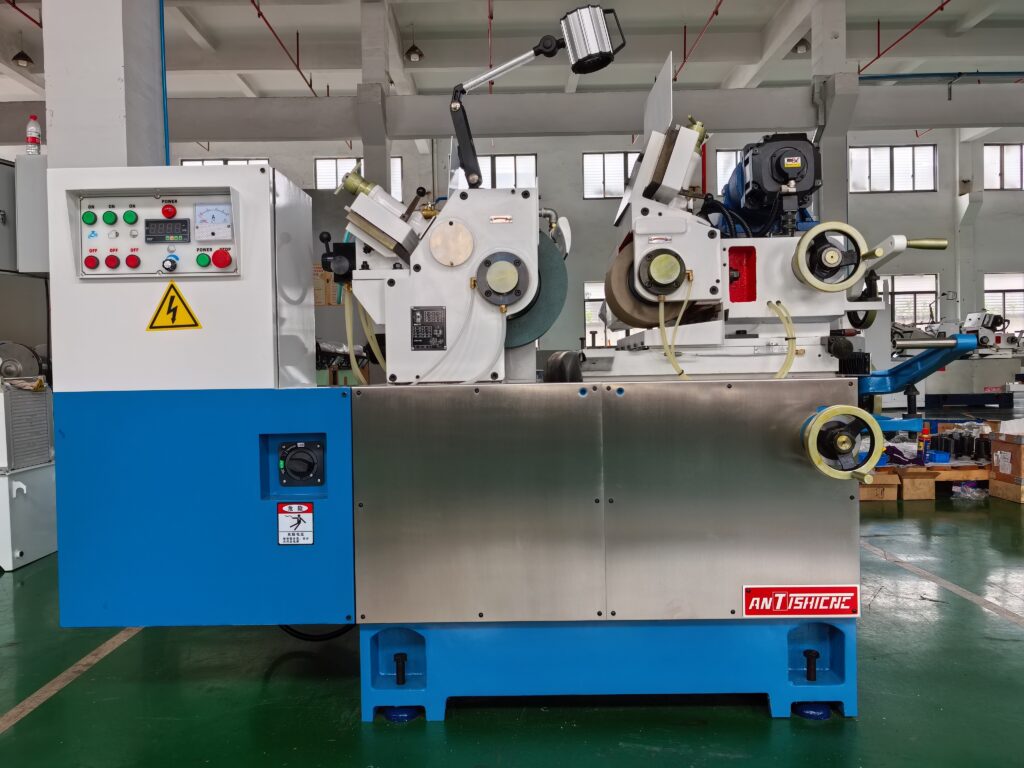

Manual High Precision Centerless Grinding Machine-FX-12S Product Details

  • The spindle is constructed from SNCM-21H alloy steel and subjected to sophisticated, consecutive heat treatments to achieve HRC-62° casting hardness conditions and a 1.5 mm dynamic pressure oil film designed hardening layer.

  • The timing belt driven servo motors are positioned within the wheel endlessly tilted together with the adjustment wheel to keep the pulleys parallel ensuring optimum grinding efficacy.

  • The unique configuration is designed to remove inertia loss and chain problems which greatly reduces maintenance requirements such like frequent changes of chain and spring zipper replacements.

Manual High Precision Centerless Grinding Machine Technical Parameter

SpecificationsUnitMachine Model: FX-12S
Processing range (diameter)mm0.5-40
(can be customized to 0.4-40mm)
Grinding wheel size (OD* width * ID)mmΦ305*150*Φ120
Adjusting wheel size (OD * width *ID)mmΦ205*150*Φ90
Grinding wheel speedRPM1950
Adjust wheel speed (infinitely variable)RPM0-320
Wheel drive motorKW5.5
Adjusting wheel motor (servo motor)KW2
Hydraulic pump drive motorKW0.75
Cooling pump drive motorKW0.125
Adjustment wheel feed hand wheelmm3.5/Turn 0.02/Scale
Adjustment wheel fine adjustment handwheelmm0.1/Turn 0.001/Scale
Table feed handwheelmm7/Turn 0.05/Scale
Worktable fine adjustment handwheelmm0.2/Turn 0.001/Scale
Trimming feed wheelmm1.5/Turn 0.01/Scale
Adjust wheel tilt angleDeg+5°～-3°
Adjust wheel rotation angleDeg±6°
Mechanical Dimensionsmm1800×1400×1450mm
Packing sizemm2350×1650×1770mm
Machine weightKg1800
Packing weightKg2000

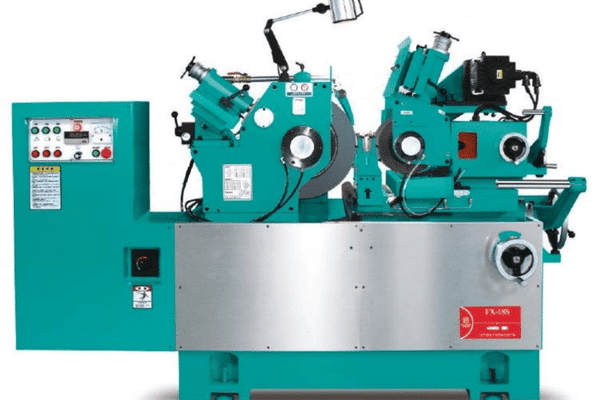

Factory Sale High Precision CNC Centerless Grinder

  • The spindle is made of SNCM-21H alloy steel with dynamic pressure oil film lubrication and advanced heat treatments which achieves high precision runout under 0.001mm.

  • The Adjusting wheel drive system employs a Taiwan Delta servo motor with 0-250rpm digital control which achieves optimal linear speed for the best grinding quality.

  • The body of the unit is made of high grade cast iron FC-30 which is subject to advanced treatments and precision machining via advanced equipment with micron level accuracy and durability.

Factory Sale High Precision CNC Centerless Grinder

Model: FX-18CNC-1/3/4/FX-18S Technical Specification

ITEMUnitFX-18CNC-1 FX-18CNC-3FX-18CNC-4ITEMUNITFX-18S
Standard working table diametermmΦ1～60Φ0.05～10Φ1～60Standard machine processing range (diameter)mmΦ 1-60(100 as customized)
Grinding wheel size (OD X width X ID)mmΦ455x205xΦ228.6Φ455x205xΦ228.6Φ455x205xΦ228.6Grinding wheel size (OD * width * ID)mmΦ455*205*Φ228.6
Adjusting wheel size (ODX width X ID)mmΦ255x205xΦ111.2Φ255x205xΦ111.2Φ255x205xΦ111.2㎜Adjusting wheel size (OD* width *ID)mmΦ255*205*Φ111.2
Grinding wheel speedR.P.M152015201520Grinding wheel speedRPM1500
Adjust wheel speedR.P.M0～2500～2500～250Adjust wheel speedRPM0-250
Wheel drive motorKW11.511.511.5Grinding wheel drive motorKW11.5
Adjust the wheel drive motorKW333Adjustment wheel servo motorKW3
Feed servo motor powerKW333Hydraulic pump drive motorKW0.75
Servo motor power for sand repairKW1.51.51.5Cooling pump drive motorKW0.25
Hydraulic pump drive motorKW0.750.750.75Adjustment wheel feed hand wheelmm3.5/Turn 0.05/Scale
Cooling pump drive motorKW0.250.250.25Adjustment wheel fine adjustment hand wheelmm0.1/Turn 0.001/Scale
Minimum scale of adjustment wheelmm0.0010.0010.001Table feed hand wheelmm9.0/Turn 0.10/Scale
Adjust wheel tilt angleDEG +6°～﹣5° +6°～﹣5° +6°～﹣5°Worktable fine adjustment hand wheelmm0.2/Turn 0.001/Scale
Adjust wheel rotation angleDEG±6°±6°±6°Trimming feed wheelmm2.0/Turn 0.01/Scale
Mechanical Dimensionsmm2350x1960x1550 2350x1960x1550 mm2350x1960x1550©LAdjust wheel tilt angleDegree+6°～-5°
Packing weightKG330035003500Adjust wheel rotation angleDegree±6°
Mechanical Dimensionsmm2350×1960×1550
Packing sizemm2900×2400×1850
Machine weightKG2850
Packing weightKG3000

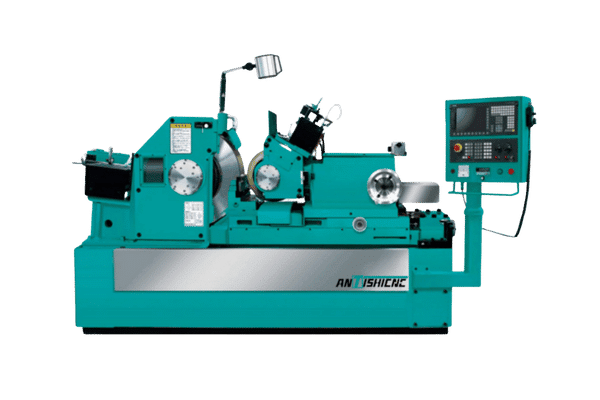

High Precision CNC Centerless Grinder-FX-20CNC-3 Product Details

High Precision CNC Centerless Grinder-FX-20CNC-3 Product Details

  • The SNCM-21H alloy steel spindle has been undergone advanced treatments achieving HRC-62º hardness, double-supported bearing construction, and 1.5mm thick hardening layers emphasizing rigidity and spindle speed.

  • The adjusting wheel drive system employs a Taiwan Delta servo motor which, ranging from 0-250rpm, achieves optimized linear speed enhancing your grinding precision.

  • The double V-shaped guide rails, still hand-scooped and automatically lubricated, assure long-term feed accuracy and stabilized precision.

FX-20CNC-3 Technical Parameter

ITEMUNIT FX-20CNC-3
Standard working table diametermmΦ1～60
Grinding wheel size (outer diameter X width X inner diameter)mmΦ510x205xΦ254
Adjusting wheel size (outer diameter X width X inner diameter)mmΦ305x205xΦ127
Maximum speed of grinding wheelR.P.M1350（Linear Speed： 45m/s）
Adjust wheel speedR.P.M0～250
Wheel drive motorkw18kw
Adjustment wheel drive motorKW3
Lower feed servo motor powerKW3.7
Servo power of roller sand repairingKW0.75
Cooling pump drive motorKW0.5
Servo minimum feedmm0.001
operating system/SIEMENS 828D
Areamm3050*2500
Packing weightKG5500

Factory Sale FX-24CNC-3

  • The servo motor in the adjusting wheel drive system employs Delta motors with 0-250rpm digital control. This ensures perfect linear speeds and quality of grinding.

  • The unique design of the servo motor with the timing belt guarantees no loss of inertia at the pulleys and belt and chains and springs do not have to be replaced frequently.

  • Manual double V-shaped guide rail in a line and with precision scraping which is lubricated for life ensures the precision of the feed and also guarantees long life of the system.

Factory Sale FX-24CNC-3

Model: FX-24CNC-3 Technical Specification

ITEMUNITMachine Model FX-24CNC-3
Standard machine processing range (diameter)mmΦ 1-80
Grinding wheel size (OD * width * ID)mmΦ610*205*Φ304.8
Adjusting wheel size (OD * width * ID)mmΦ330*205*Φ203.2
Grinding wheel speedRPM1100
Adjust wheel speedRPM0-250
Grinding wheel motorKW30
Adjust wheel servo motorKW3
Feed servo motorKW3.75
Sand repairing servo motorKW0.75*2
Oil pump driving motorKW0.75
Cooing pump motorKW0.75
Adjustment wheel feed hand wheelmm3.5/Turn 0.05/scale
Adjustment wheel fine adjustment handwheelmm0.1/Turn 0.001/Scale
Table feed handwheelmmThe minimum setting amount of servo feed is 0.0005mm
Worktable fine adjustment handwheelmm0.2/Turn 0.001/Scale
Trimming feed wheelmm2mm/Turn 0.01mm/Scale
Adjust wheel tilt angleDegree+5°～-3°
Adjust wheel rotation angleDegree±5°
Mechanical dimensionsmm2550×2050×1650
Mechanical weightKGAbout 6500
Packing weightKGAbout 7000

FX-18S High Precision Centerless Grinding Machine: An In-Depth Overview

The FX-18S Centerless Grinder is a high-performance machine designed to increase production efficiency and precision in grinding operations.
