FX-18S High Precision Centerless Grinding Machine: An In-Depth Overview
Grinding machines have been considered of utmost importance in the production of special components with extremely high degrees of accuracy and efficiency. Among all types of grinding machines, centerless grinding machines are capable of performing high-volume operations with exceptional accuracy. This comprehensive guide explores the FX-18S High Precision Centerless Grinding Machine, an advanced tool designed to meet the needs of modern industrial enterprises.
Introduction to the FX-18S Centerless Grinding Machine
The FX-18S Centerless Grinder is a high-performance machine designed to increase production efficiency and precision in grinding operations. Utilizing the most advanced technology, this machine automates the grinding of cylindrical parts without a fixed center, enabling faster operations with reduced periods of manual intervention. Large productions are maintained in accuracy, and finishing to the best can be ensured.
Key Advantage: Considered utmost in precision machining for its ease of operation and reliability, the FX-18S thus finds its place in almost all types of manufacturing industries.
Understanding Centerless Grinding Technology
Centerless grinding is a material-removal process for cylindrical workpieces through an unusual method. Contrary to standard grinding practices, it doesn’t require holding the workpiece in a fixture or between centers. Instead:
- The workpiece rests upon and is oriented by means of the regulating wheel and the fixed blade.
- Grinding happens via the high-precision CNC centerless grinding wheel.
- The process provides excellent tolerances and surface finishing.
- Production rates are higher compared with traditional methods.
- Setup time is drastically reduced since centers don’t have to be created.
For this reason, the technology is most applicable to motor vehicle, aeronautics, and manufacturing industries, where precision and efficiency rule supreme.
What Sets the FX-18S Apart
The FX-18S stands out in the market due to several distinctive characteristics:
Superior Performance Features
- Precision: Maintains uniform handling of widely varying materials and applications
- Speed: Delivers reliable and repeatable results with high-speed operation
- Versatility: Accommodates diverse grinding requirements across industries
- Automation: High levels of automation minimize operator interaction
- Durability: Ruggedly built to ensure stability for stringent industrial operations
Technical Specifications of the FX-18S
| Specification | Value |
|---|---|
| Grinding Capacity | Up to 250 mm diameter workpieces with 500 mm length |
| Spindle Speed Range | 100 to 3,000 RPM (adjustable) |
| Motor Power | 5 HP main spindle motor |
| Control System | CNC interface design |
| Accuracy Level | ±0.001 mm tolerances |
| Cooling System | Integrated lubrication and coolant system |
| Dimensions | 1,200 mm x 1,800 mm (compact footprint) |
Innovative Design Elements
Advanced Technology Features
The FX-18S employs the very latest in technology to maximize efficiency and ensure the best durability:
- Adaptive Feed Control System: Adjusts a feed rate, dependent on material properties and actual grinding conditions, to enhance precision and efficiency
- Ceramic Composite Grinding Wheels: Dramatically increase wear resistance to minimize downtime incurred in tool replacement
- Vibration-Dampening Base: Comprised of high-density polymer concrete, the foundation dampens vibrations to maintain constant accuracy
- IoT-Enabled Health Tracking: Tracks operational parameters in real time for tool wear and potential anomalies in performance
Grinding Wheel Compatibility
The FX-18S supports various grinding wheel types for maximum adaptability:
| Wheel Type | Best Application | Key Benefits |
|---|---|---|
| Vitrified Bonded | High-speed precision operations | Enhanced heat resistance and stability |
| Resin Bonded | Fine finishing operations | Flexible nature and shock absorption |
| Metal Bonded | Ultra-hard materials (ceramics, tungsten carbide) | Solid performance and extended service life |
| Electroplated | Intricate precision operations | Razor-sharp quality and precision |
Industry Applications and Benefits
Manufacturing Applications
In manufacturing environments, the FX-18S serves multiple critical functions:
Automotive Manufacturing
- Production of camshafts, crankshafts, and gear components
- Tight tolerance and fine finish requirements
- Processing of materials with wide hardness disparity
- Support for lightweight and durable vehicle components
Aerospace Sector
- Manufacturing of turbines, engine casings, and structural components
- Meeting stringent quality requirements
- Eliminating irregularities that require secondary operations
- 30% improvement in production accuracy (statistical reports)
Precision Tooling
- Manufacturing cutting tools like end mills, drill bits, and reamers
- Specific geometry and sharpness requirements
- Increased tool life and consistency
- Improved operational efficiencies
Advantages of Precision Centerless Grinding
Key Performance Benefits
- High Accuracy: Components with extremely high accuracy and surface finish capabilities
- Reduced Setup Time: No workpiece centering required, facilitating faster production
- Tight Tolerances: Capability to produce dimensions within ±0.001 inches
- High-Volume Production: Continuous feeding enables grinding of hundreds of parts per hour
- Material Efficiency: Less material waste compared to alternative machining processes
- Superior Surface Finish: Ra values less than 0.2 micrometers for critical applications

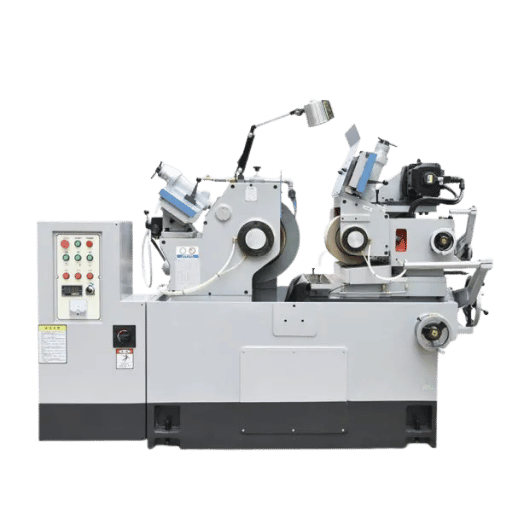

Market Comparison Analysis
| Parameter | FX-18S | Other Grinders |
|---|---|---|
| Grinding Range | 1-60 mm | Varies (e.g., 0.5-40 mm) |
| Wheel Size | 455x205x228.6 mm | Varies (e.g., 305x150x120 mm) |
| Wheel Speed | 1500 RPM | 1400-3000 RPM |
| Motor Power | 11.5 KW | 2-15 KW |
| Adjust Speed | 0-250 RPM | Varies |
| Weight | 2850 KG | Varies |
| Precision | Micron-level | Varies |
| Features | Taiwan spindle, servo motor, dual cooling | Varies (e.g., air cooling, oil system) |
| Price | ~$46,990 | Varies ($6,500-$100,000) |
Price Point Analysis
Market Pricing Structure:
- Entry-level models: $6,500 – $15,000 (manual adjustments, basic reliability)
- Medium-level grinders: $15,000 – $40,000 (automated controls, better consistency)
- High-end grinders: $40,000 – $100,000+ (AI-assisted, advanced servo motor technologies)
Optimization Tips for Maximum Efficiency
Best Practices for Operation
- Proper Installation: Ensure device placement on a stable, level surface to avoid vibrations
- Temperature Management: Maintain optimum operating temperatures to prevent efficiency loss
- Real-time Monitoring: Utilize monitoring mechanisms for temperature, power consumption, and output rates
- Regular Maintenance: Clean and inspect components like filters, fans, and sensors regularly
- Operator Training: Implement comprehensive staff training for troubleshooting and operation
Maintenance Tips for Longevity
- Cleaning: Clean the unit after each use with approved cleaning agents
- Lubrication: Follow manufacturer recommendations for lubrication schedules
- Component Monitoring: Check the wear state of consumables and replace when necessary
- Calibration: Ensure sensors and components remain properly calibrated
- Electrical Inspection: Check electrical connections for wear, corrosion, or looseness
Optimizing Settings for Accuracy
For maximum accuracy with the FX-18S:
- Adjust sensitivity levels based on task-specific requirements
- Use operational log data to identify patterns requiring parameter adjustments
- Maintain operating temperature within ±1°C of the recommended range
- Utilize automatic error correction and self-diagnostic tools
- Keep firmware updated for the latest performance improvements
Frequently Asked Questions
Conclusion
The FX-18S High Precision Centerless Grinding Machine represents a significant advancement in industrial grinding technology. With its combination of precision, efficiency, and versatility, it serves as an invaluable asset for manufacturers acrossthe automotive, aerospace, and precision tooling industries. The machine’s advanced features, including adaptive feed control, IoT-enabled monitoring, and comprehensive wheel compatibility, make it a competitive choice in today’s demanding manufacturing environment.
Investment in the FX-18S translates to improved production accuracy, reduced operational costs, and enhanced manufacturing capabilities. For organizations seeking to optimize their grinding operations while maintaining the highest quality standards, the FX-18S offers a compelling solution that balances performance, reliability, and cost-effectiveness.
