Top Column Moving Surface Grinder Manufacturers and Suppliers in China

Column Moving Surface Grinder

We design our Column Moving Surface Grinders for precise grinding of large, heavy workpieces for aerospace, automotive, and die mold industries. These machines offer remarkable surface finishes and precise tolerances, as well as productivity for increasingly intricate industrial tasks.

Column Moving Surface Grinder Product Details

  • Foundation: high-strength cast iron.

  • Moves longitudinally with speed varying hydraulics.

  • Moves transverse and vertical with a servo motor and PLC controller for auto-feed.

  • Designed for heavy-duty grinding with high efficiency.

  • Guideway forced lubrication extends machine life.

  • 2-3-axis CNC machine configured with a CNC system.

Column Moving Surface Grinder Technical Parameter

Technical DescriptionUnitSG60160SDSG60220SDSG60600SD
(SGL60160PC2)(SGL60220PC2)(SGL60600PC2)
Table size(L*W)mm1600*6102200*6106000*610
Max.grinding size of work-piece(L*W)mm1600*6102200*6106000*610
Distance from spindle center to tablemm820/1050820/1050800/1050
Magnetic chuck sizemm600*800*2600*1000*2600*1000*6
Table longitudinal speedmm5~255~255~25
Max. table load (include magnetic chuck)kg123016906000
Wheel head Transverse movingAuto intermittent feed ratem/t1~301~301~30
Rapid speed feedm/min0.05-20.05-20.05-2
Hand-wheel feed per gra.mm/gra.0.05(0.02)0.05(0.02)0.05(0.02)
Wheel vertical movingAuto intermittent speedmm/t0.005-0.050.005-0.050.005-0.05
Rapid speed feedm/min.0.05-20.05-20.05-2
Hand-wheel feed per gra.mm/gra.0.005(0.001)0.005(0.001)0.005(0.001)
Grinding Wheel SpeedRPM960960960
Wheel size(OD*Width*ID)mm500*75*305500*75*305500*100*305
Total rated powerKW28.528.538.5
Surface roughnessμmRa0.63Ra0.63Ra0.63
Gross weightkg8500950025000
Package dimension(L*W*H)cm480*220*172600*220*172600*300*172
260*227*255260*227*255260*350*255

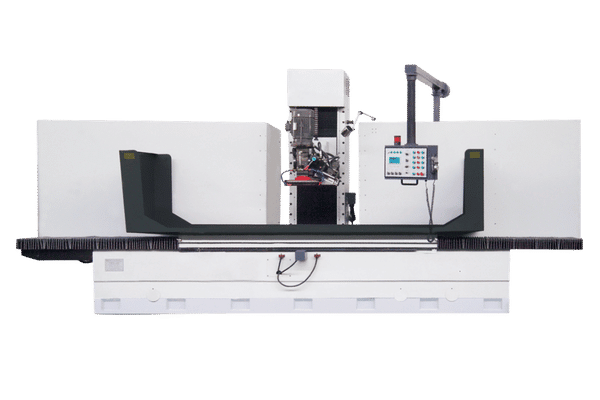

Column Moving Surface Grinder Model: SGT60160SD/SGT60220SD

Column Moving Surface Grinder Model: SGT60160SD/SGT60220SD

  • Longitudinal moves hydraulically with variable speed.

  • Transverse and Vertical moves are Servo with auto feed by PLC controller.

  • Spindle equipped with bearings with high precision rolling of importance and directly linked with the motor through an elastic coupling.

  • The table guide adopts a flat V guide and is affixed with a Teflon wear belt.

  • The Angle dresser fitted onto the grinding head dresses the upper plane of the Angle grinding wheel.

SGT60160SD/SGT60220SD Technical Description

Technical DescriptionUnitSGT60160SDSGT60220SD
Table size(L*W)mm1600*6102200*610
Max.grinding size of Work-piece(L*W*H)mm1600*610*6002200*610*600
Magnetic chuck sizemm600*800*2600*1000*2
Table longitudinal speedmm7~237~23
Max. loading of table(including magnetic chuck)kg12301690
Wheel head Transverse MovingAuto intermittent feed ratem/t1~301~30
Rapid speed feedm/min0.05-20.05-2
Hand-wheel feed per gra.mm/gra.0.005/0.050.005/0.05
Vertical Wheel MovingWheel head rotationmm/t±30°, ±5°±30°, ±5°
Rapid speed feedm/min.0.05-20.05-2
Hand-wheel feed per gra.mm/gra.0.005/0.050.005/0.05
Wheel size(OD*Width*ID)mmAccording to processAccording to process
Total rated powerKW1717
Gross weightkg85009500
Package dimension(L*W*H)cm480*220*172600*220*172
260*227*255260*227*255

A Comprehensive Guide to Precision Grinding Machines

The Surface Grinding Machine is built in a manner that ensures high accuracy on workpiece polished surfaces. Its notable point is the vertical column structure, having a grinding head support, offering ensured continuous and accurate working.
