Top Boring and Milling Machine Manufacturers and Suppliers in China

TPX6113 Universal Horizontal Boring & Milling Machine Center

ANTISHICNC boring and milling machines produce excellent engineering results with precision, every time. The design of these machines requires harsh industry standards during their manufacture and constant performance on the most demanding projects.

Factory Sale TPX6113 Universal Horizontal Boring & Milling Machine Center

  • The spindle has a very robust three-layer structure, giving it superior rigidity, stable cutting performance, and a wide range of speeds.

  • Speed and feed could be adjusted with the hydraulic pre-selection system, which makes for easy operation, reduces labor, and enhances efficiency, raising the level of automation.

  • Most of the central operations like distribution and clamping of spindle box, lifting of the spindle boxes, vertical as well as horizontal movement of the worktable, and rotary motion are taken care of from the button station.

Technical Proposal for TPX6113 Universal Horizontal Boring & Milling Machine Center

Main technical parameters
Boring shaft diameter130mm
Spindle taper holeMetric No. 8
Spindle Max Torque1960
Spindle Max Torque3136N.m
Maximum torque of flat turntable4900N.m
The maximum axial resistance of the main shaft31360N
Maximum travel of spindle900mm
Progression of the spindleLevel 24
Spindle speed range4-800r/min
Flat plate slider stroke250mm
Workbench area1400*1600mm
Workbench can hold maximum weight8000KG
Distance from spindle center line to worktable
Max.1400Max.0
Min.
Workbench travel
Vertical1500mm(with rear columns)
horizontal1600mm
Spindle, head stock, workbench vertical and horizontal speed2500mm/min
Spindle, head stock, workbench vertical and horizontal speed0.05-8/0.01-2
Spindle, head stock, table slider feed range
Main motor power15kw
Machine tool dimensions (length*width*height)6995*3647*3442
Machine Weight25000kg

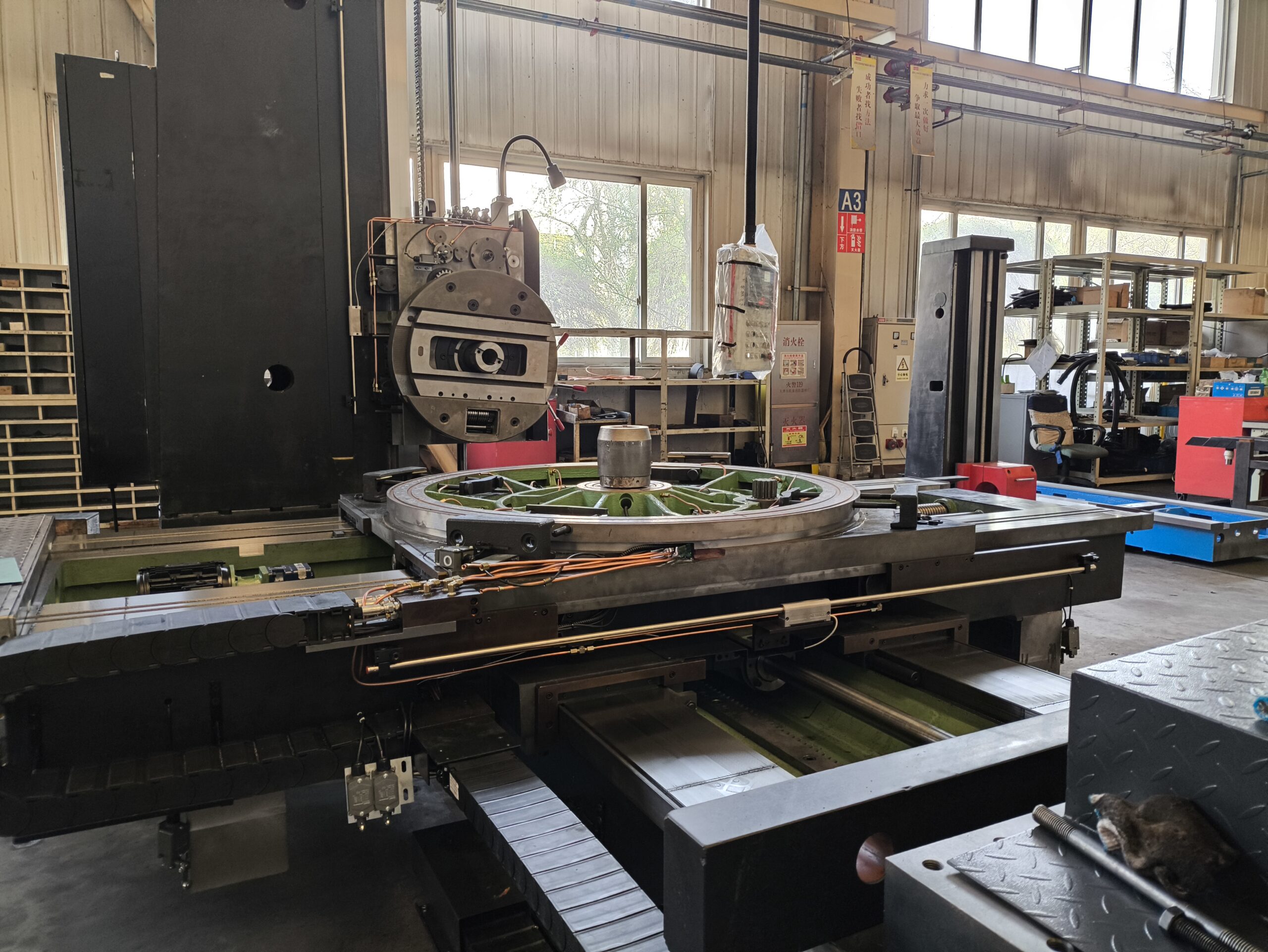

TPX6113 Universal Horizontal Boring & Milling Machine Center Product Display Picture

Quality Assurance and After-Sales Service

  1. Since the final acceptance of the machine tool, all failures caused by quality problems will be guaranteed for one year free of charge.
  2. Since the final acceptance of the machine tool, the failure of other parts caused by quality problems will be guaranteed for one year free of charge.
  3. Since the final acceptance of the machine tool, we also guarantee active cooperation with the user to repair any failures caused by the machine tool’s quality, and cover free labor costs within one year.
  4. Lifetime guarantee to provide spare parts supply at preferential prices.

Warranty service:

one year warranty( 12 months since customer receive & use the machine).

The manufacturer guarantees to provide life-long paid maintenance services for the product.

Universal Horizontal Boring Mill: Features, Applications, and Advancements

The Universal Horizontal Boring Mill is one of the crown jewels of the precision industry, a fusion of versatility, power, and innovation that meets the demands of modern industries. This blog reveals the fascinating traits that define these machines, tells a story of their diverse applications across various industries, and highlights the latest developments shaping their evolution. For the machining expert or the hobbyist with a thirst for money’s worth of knowledge, this article paves the cement road upon which one can comprehend how the Universal Horizontal Boring Mill remains an indispensable instrument in present manufacturing.
