Top Universal Milling Machine Manufacturers and Suppliers in China

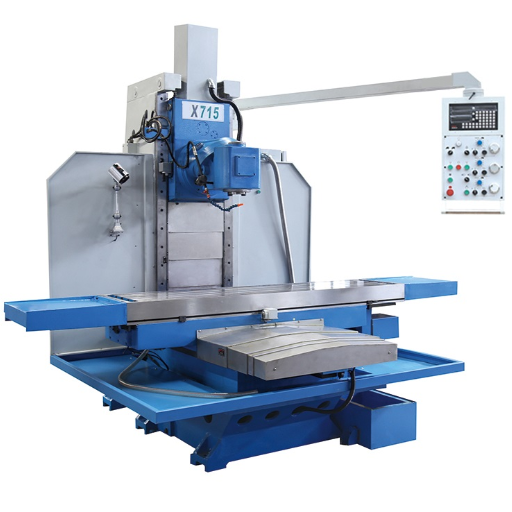

Bed Type Milling Machine X715 / X716

There is no denying that ANTISHICNC universal milling machines are versatile! If you are machining components for the automotive, aerospace, or medical equipment industries, ANTISHICNC has got you covered.

Factory Sale Bed Type Milling Machine X715 / X716

  • For a wide range of tasks, this machine is versatile, finding utility in drilling, hole enlargement, reaming, beveling, tapping, surface milling, creating step planes, slopes, and groove milling.

  • The machine features a stepless speed control with an automatic speed setting, providing high torque for low-speed operations, which is most suitable for deeper cuts and larger-diameter holes.

  • Being made of high-strength cast iron, the body and main components are made to last. The refined microstructure offers a superior degree of stability, even in long-term use.

Technical Proposal for Universal Milling Machine

ItemsX715X716
Working area
Table size2100x500mm2500x600mm
T-slot (width x No. x pitch)20mmx4x100mm20mmx5x100mm
Max. load of table2000kg
Distance from spindle nose to table surface0-650mm0-700mm
Distance from spindle axis and table surface8-660mm
Distance between spindle axis and column guideway610mm8-660mm
Travel
Longitudinal travel of X axis1500mm1800mm
Cross travel of Y axis650mm700mm
Spindle
Spindle taper7:24 ISO50
Spindle speed(2steps) 6-300r/min, 30-1500r/min
Main motor power11kW
Feed
Table feed-X/Y2.5-3000mm/min
Table feed-Z2.5-2500mm/min
Table rapid feed X/Y/Z6000/6000/3000mm/min
Others
Coolant motor90W
Overall dimension3220x2420x2800mm4380x2520x2800mm
Net weight7300kg9000kg

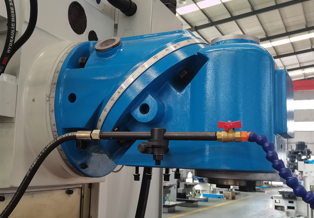

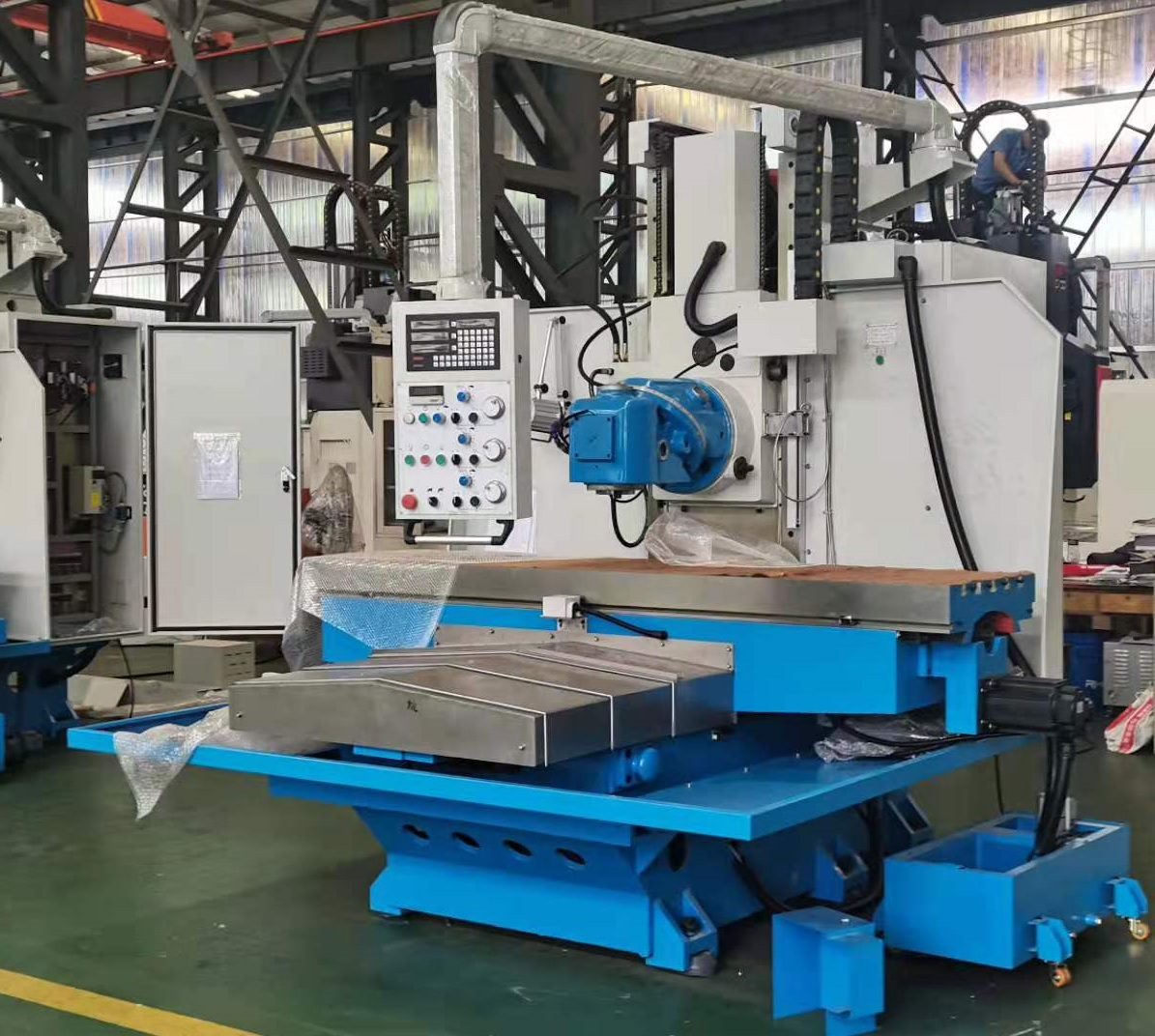

Bed Type Milling Machine X715 / X716 Product Display Picture

Quality Assurance and After-Sales Service

  1. The equipment is a complete, brand-new set of equipment, with reasonable structure, high-strength stability, safety, reliability, and durability, simple operation, and convenient maintenance.
  2. The main parts of the equipment are made of high-quality materials. The selected mechanical, hydraulic, electronic, and electrical components are advanced, high-quality, and reliable series products that meet the requirements of standardization and conformity.
  3. The design, manufacture and test of the equipment comply with the latest national standards, international industrial standards (ISO), and international electrotechnical standards (IEC).
  4. Take appropriate safety protection measures for the dangerous parts of the equipment that may cause personal or equipment injury.
  5. The main color of the equipment is: Standard color system: blue/green or the color specified by the customer. Ensure that the paint coating thickness is uniform and consistent in appearance.

Warranty service:

one year warranty( 12 months since customer receive & use the machine).

The manufacturer guarantees to provide life-long paid maintenance services for the product.

Bed Type Milling Machine: Definition, Applications, and Maintenance

Bed-type milling machines are highly essential tools in machining, providing accurate working options for modern manufacturing, being versatile and hard-working. Their wide range of applications greatly improves any manufacturing industry where they operate-from automotive to aerospace to heavy engineering. This article serves as a guide, providing information on bed-type milling machines, including their main features and functions, as well as some real-life applications from various industries, and necessary maintenance measures.
