Top Universal Milling Machine Manufacturers and Suppliers in China

X6436 Series Heavy Duty Universal Swivel Head Milling Machine

There is no denying that ANTISHICNC universal milling machines are versatile! If you are machining components for the automotive, aerospace, or medical equipment industries, ANTISHICNC has got you covered.

Factory Sale X6436 Series Heavy Duty Universal Swivel Head Milling Machine

  • Performing operations such as surface milling, step planing, slope milling, and groove cutting, as well as complex jobs like curve cutting, surface milling, and cam processing, are areas where it excels.

  • Speed control is provided steplessly, and speed adjustment is automatic; these features ensure that the machine develops high torque at low speeds for taking deep cuts and large-diameter holes without difficulty.

  • The machine is constructed from highly resistant cast iron, which, combined with the machine's design, ensures long-term durability and reliability.

Technical Proposal for X6436 Series Heavy Duty Universal Swivel Head Milling Machine

ItemsX6436X6436CX6436CLW
Working area
Worktable size (L×W)1325x360mm1325x360mm1600x360mm
T slot (Width x No. x pitch)18x3x80mm
Max. load of table350kg

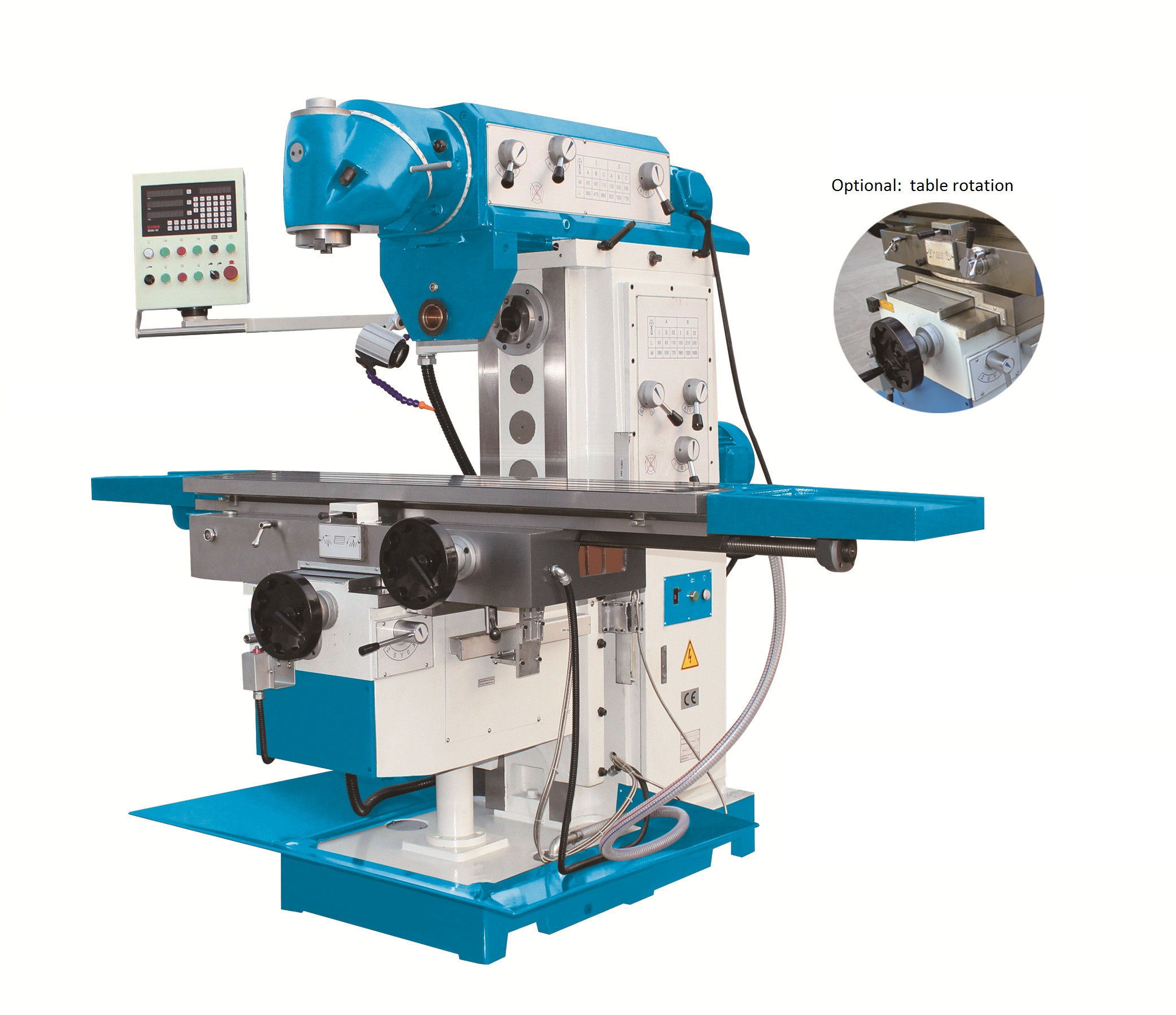

±45°table rotationoptional
Distance from horizontal spindle center to worktable surface0-450mm
Distance from spindle nose to table surface175-625mm
Travels
Worktable longitudinal travel (X)750mm1100mm1300mm
Worktable cross travel (Y)320mm
Worktable vertical travel (Z)450mm
Ram travel550mm
Spindle
Horizontal spindle speed12 steps;
60-1800rpm
Spindle taper(Horizontal)7:24, ISO50
Motor power(Horizontal)5.5kW
Universal milling head spindle speed12 steps;
60-1750rpm
Spindle taper(Universal milling head)7:24, ISO50
Universal milling head swivel angel±360°
Motor power (Universal milling head)4kW
Feed
Rapid feed (X/Y/Z)1200/800/600mm/min
Feed range (X)30-750mm/min
Feed range (Y)20-500mm/min
Feed range (Z)15-375mm/min
Servo motor torque15Nm
Others
Machine size (L×W×H)1800x2100x2000mm2245x2100x2000mm2520x2100x2000mm
Net weight2685kg2750kg2800kg

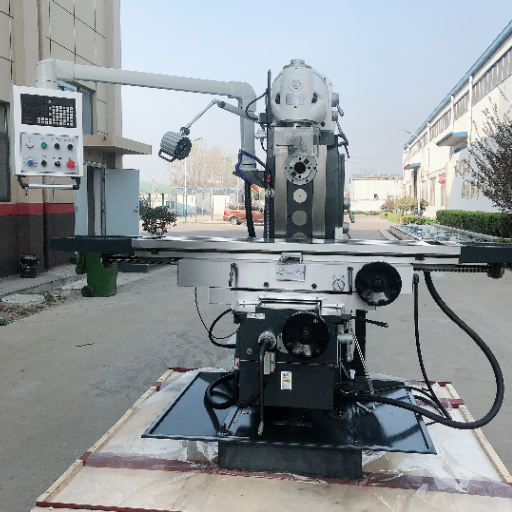

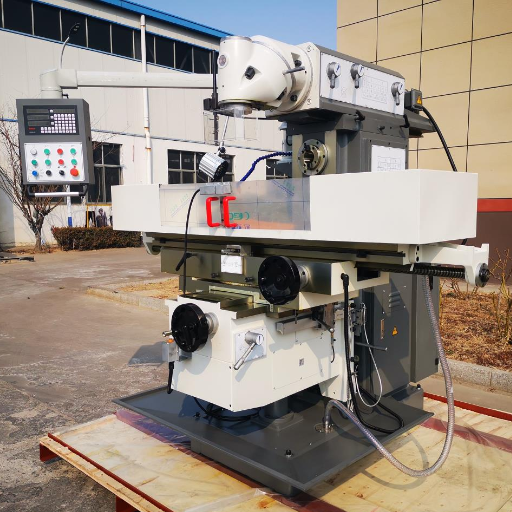

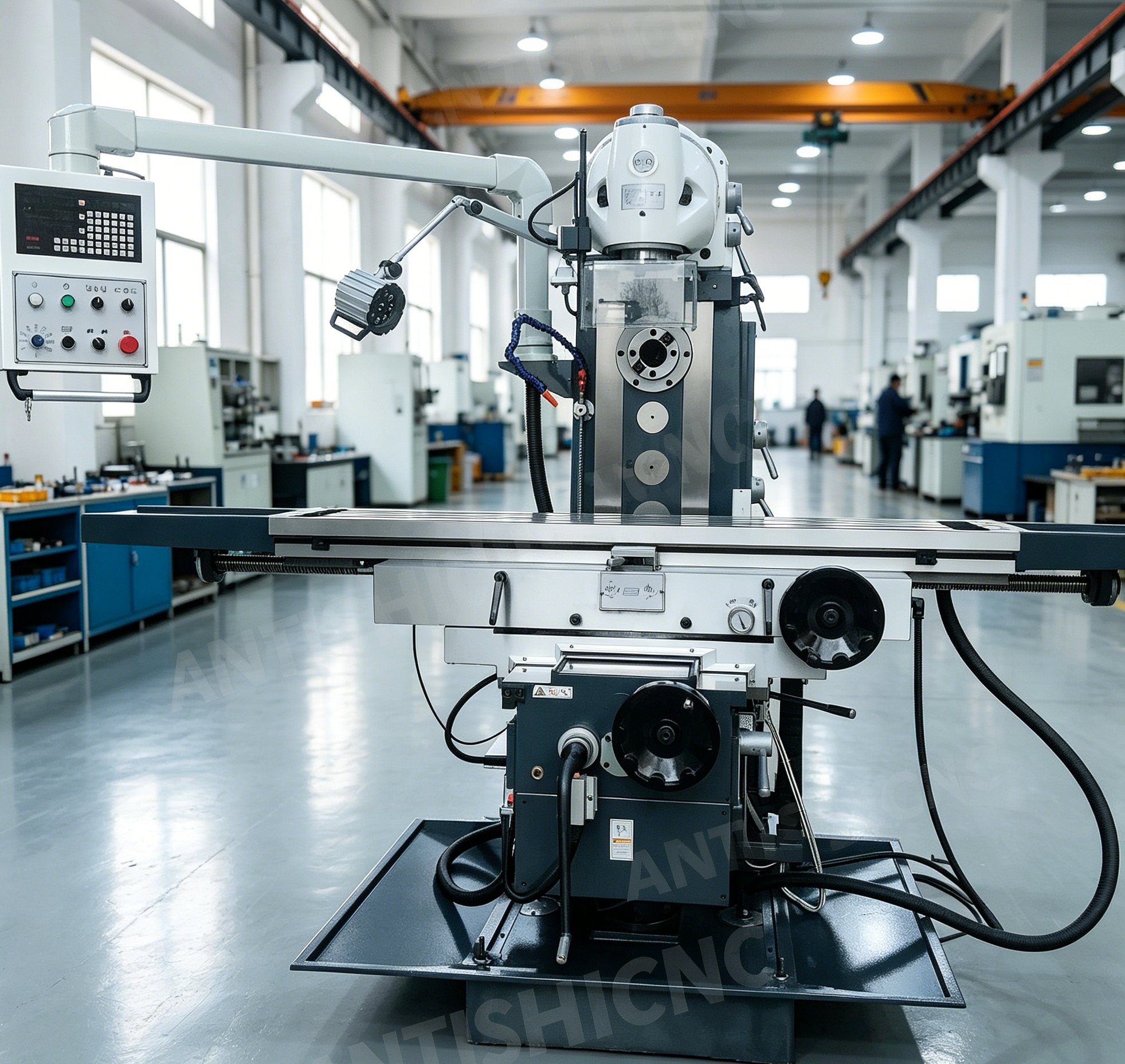

X6436 Series Heavy Duty Universal Swivel Head Milling Machine Product Display Picture

Quality Assurance and After-Sales Service

  1. The equipment is a complete, brand-new set of equipment, with reasonable structure, high-strength stability, safety, reliability, and durability, simple operation, and convenient maintenance.
  2. The main parts of the equipment are made of high-quality materials. The selected mechanical, hydraulic, electronic, and electrical components are advanced, high-quality, and reliable series products that meet the requirements of standardization and conformity.
  3. The design, manufacture and test of the equipment comply with the latest national standards, international industrial standards (ISO), and international electrotechnical standards (IEC).
  4. Take appropriate safety protection measures for the dangerous parts of the equipment that may cause personal or equipment injury.
  5. The main color of the equipment is: Standard color system: blue/green or the color specified by the customer. Ensure that the paint coating thickness is uniform and consistent in appearance.

Warranty service:

one year warranty( 12 months since customer receive & use the machine).

The manufacturer guarantees to provide life-long paid maintenance services for the product.

Heavy Duty Swivel: Exploring Steel and Stainless Steel Options for Various Applications

Heavy duty swivels are a critical component in ensuring reliability and durability in hostile situations across a wide variety of industries. Selecting the correct type of swivel can significantly impact both performance and safety, whether you engage in machinery synthesis, industrial lifting, or marine design. This blog post focuses on heavy-duty swivels and examines two standard material options—steel and stainless steel.
