Top Universal Milling Machine Manufacturers and Suppliers in China

XL6436CLW Universal Swivel Head Milling Machine

There is no denying that ANTISHICNC universal milling machines are versatile! If you are machining components for the automotive, aerospace, or medical equipment industries, ANTISHICNC has got you covered.

Factory Sale XL6436CLW Universal Swivel Head Milling Machine

  • The machine is exact for surface milling, step planing, slope milling, and groove cutting, as well as for curved surfaces, contour milling, and cam milling.

  • Equipped with a wide range of stepless speed control and automatic speed regulation, this device provides a high torque at low speeds, making deep cutting and drilling larger diameter holes easier.

  • Constructed from high-strength cast iron with a stable microstructure, the body, as well as other major components, ensures long life of service and reliable functioning even under extreme working conditions.

Technical Proposal for XL6436CLW Universal Swivel Head Milling Machine

SpecificationsXL6436CLW
Working area
T slot (Width x No. x pitch)18x3x80mm
Worktable size (L×W)1600x360mm
Max. load of table350kg
±45°table rotationYes
Distance from horizontal spindle center to worktable surface0-450mm
Distance from spindle nose to table surface175-625mm
Travels
Worktable longitudinal travel (X)1300mm
Worktable cross travel (Y)320mm
Worktable vertical travel (Z)450mm
Ram travel550mm
Spindle
Horizontal spindle speed12 steps;
60-1800rpm
Spindle taper(Horizontal)7:24, ISO50
Motor power(Horizontal)5.5kW
Universal milling head spindle speed12 steps;
60-1750rpm
Spindle taper(Universal milling head)7:24, ISO50
Motor power (Universal milling head)4kW
Feed
Rapid feed (X/Y/Z)1200/800/600mm/min
Feed range (X)30-750mm/min
Feed range (Y)20-500mm/min
Feed range (Z)15-375mm/min
Servo motor torque15Nm
Others
Machine size (L×W×H)2520x2100x2000mm
Net weight2800kg

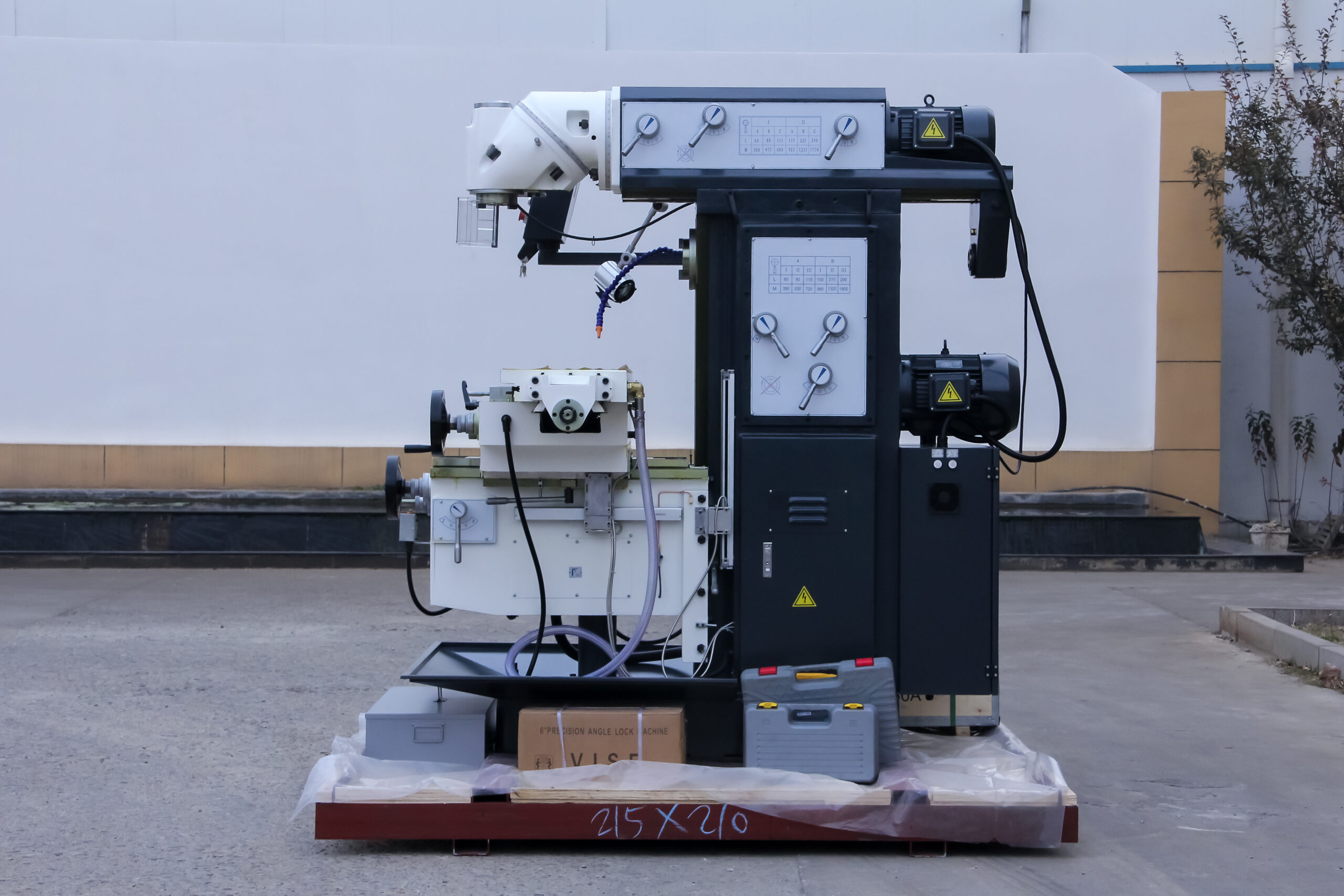

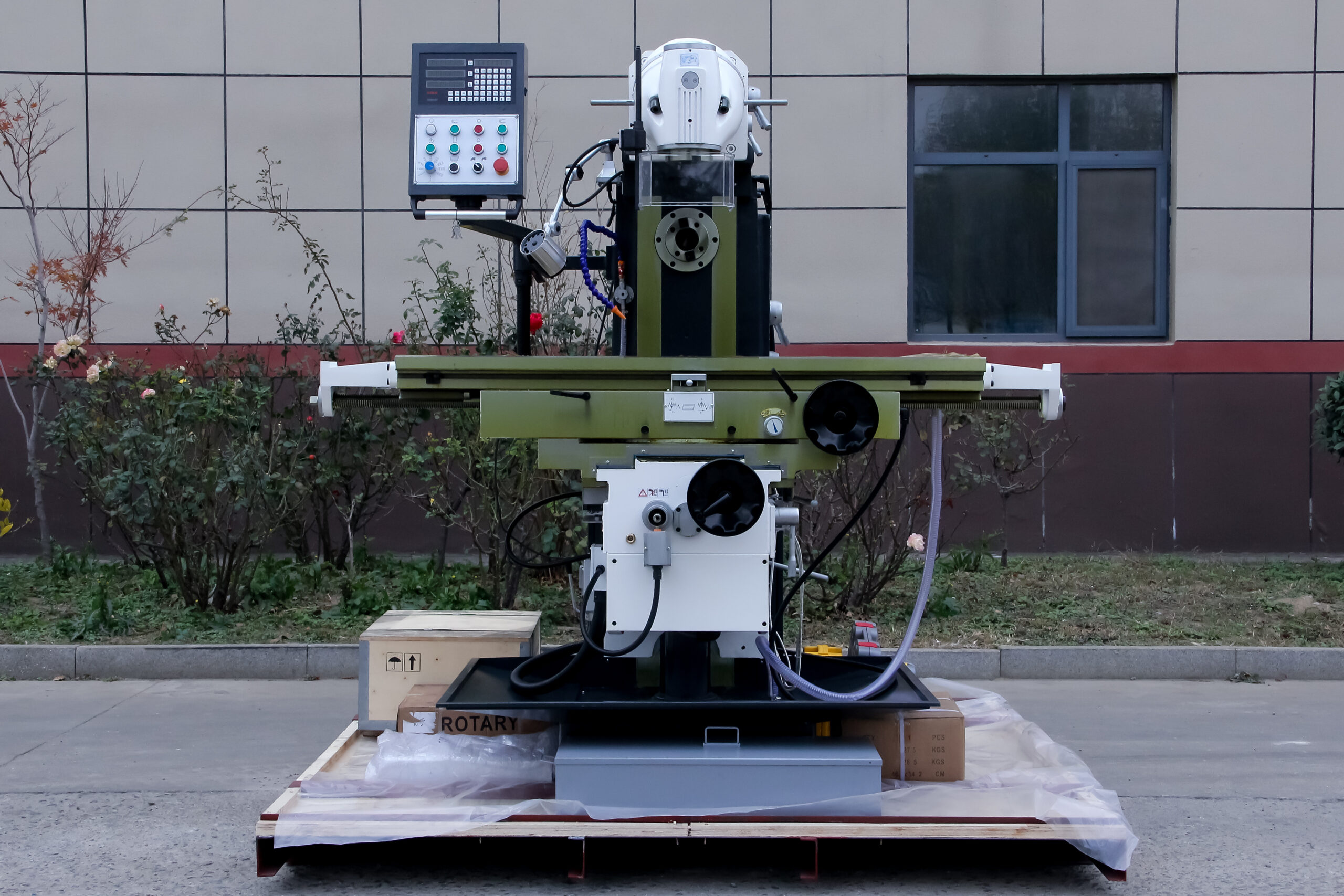

XL6436CLW Universal Swivel Head Milling Machine Product Display Picture

Quality Assurance and After-Sales Service

  1. Since the final acceptance of the machine tool, all failures caused by quality problems will be guaranteed for one year free of charge.
  2. Since the final acceptance of the machine tool, the failure of other parts caused by quality problems will be guaranteed for one year free of charge.
  3. Since the final acceptance of the machine tool, we also guarantee active cooperation with the user to repair any failures caused by the machine tool’s quality, and cover free labor costs within one year.
  4. Lifetime guarantee to provide spare parts supply at preferential prices.

Warranty service:

one year warranty( 12 months since customer receive & use the machine).

The manufacturer guarantees to provide life-long paid maintenance services for the product.

Universal Milling Head: Enhancing Precision in Universal Milling Machines

The universal milling head is a game-changer in precision engineering and machining process versatility. It is an integral part of universal milling machines, offering manufacturers an unusually high degree of accuracy and flexibility. But what constitutes the importance of the universal milling head, and how does it propel machining capabilities to greater heights? This article outlines the exact complexities involved with the universal milling head, examining its influences on productivity, precision, and adaptability across various industries.
