Top Vertical Milling Machine Center Manufacturers and Suppliers in China

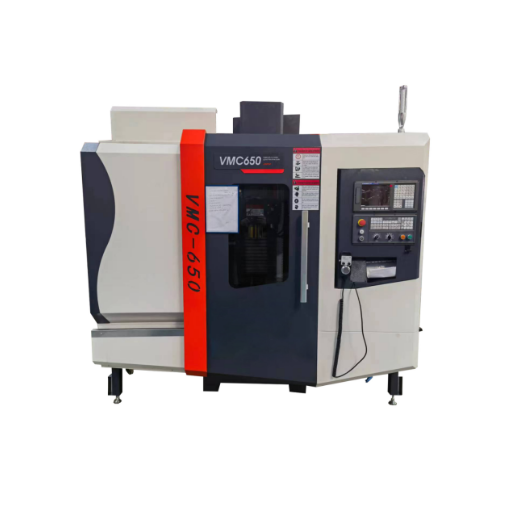

vmc650 Vertical Milling Machine Center

Achieve higher precision and superior performance through unprecedented development of these vertical milling machine centers by the primary ANTISHICNC manufacturer in China.

Factory Sale vmc650 Vertical Milling Machine Center

  • Excellent machine rigidity ensures smooth, and flexible operation for a variety of tasks. It is capable of carrying out end milling, drilling, enlarging, boring, tapping, and other procedures with precision and efficiency.

  • Given its versatility, this machine can handle with ease complicated two-dimensional and three-dimensional concave and convex models, as well as complex cavities and surfaces.

  • Some truly key components, such as the base, column, spindle box, and workbench, are built with high-strength lost foam casting technology to ensure durability and reliable performance.

Technical Proposal for Vertical Milling Machine Center

ModelUnitVMC650
workbenchWorkbench size mm900*400
Workbench T-slot3-18*125
Maximum load of workbench (kg)450
journeyLeft and right stroke (X)mm650
Front and rear travel (Y) mm400
Up and down stroke (Z) mm500
SpindleDistance from spindle center to column guide rail mm476
Distance from spindle end face to work table mm100-600
Spindle tool holderBT40
Spindle speed (rpm)8000
Spindle motor power (Kw)5.5
servo motorX.Y.Z axis servo motor (Kw)2.6
X.Y.Z motor connection methodDirect
X.Y.Z guide rail methodthird line
ToolsTool magazine capacity (tools)16 disc type tool magazine
Maximum tool weight Kg7
Maximum tool length mm250
Tool holder modelBT40
Fast-movingXYZ rapid traverse speed m/min24-24-20
Cutting feed speed m/min10
Total machine weight(t)4.5
systemKND-2100M
Electrical capacityKVA13/(10)

Components of Vertical Milling Machine Center

Spindle
Spindle

The spindle can achieve stepless speed regulation within its speed range. The spindle is controlled by a built-in encoder in the motor, enabling spindle orientation and rigid tapping functions.

Tool magazine
Tool magazine

It has been tested for millions of operations and meets the reliability requirements; it can be configured with bucket hat type or The disc-type tool magazine and hat-type tool magazine have a damping structure, which can reduce the impact during movement and ensure the service life of the tool magazine.

Transmission
Transmission

The screws and nuts are processed, ground, assembled and quality controlled in a constant temperature workshop to ensure their high-precision stability.

Cutting cooling system
Cutting cooling system

The end face of the spindle box is equipped with a cooling nozzle, which can be water-cooled or air-cooled, and can be switched at will. The cooling process can be controlled through M code or control panel.

Pneumatic system
Pneumatic system

The pneumatic triplex can filter impurities and moisture in the air source to prevent impure gas from damaging and corroding machine tool components. The solenoid valve group is controlled by PLC program to ensure that spindle tool unclamping, spindle tool clamping, spindle air cooling and other actions can be completed quickly and accurately.

Lubrication system
Lubrication system

The guide rails, ball screw pairs and support bearings all use centralized automatic thin oil lubrication. Each node is equipped with a quantitative oil separator, which regularly and quantitatively injects oil into each lubrication part to ensure that each sliding surface is evenly lubricated, effectively reducing friction resistance.

vmc650 Vertical Milling Machine Center Product Display Picture

Quality Assurance and After-Sales Service

  1. Since the final acceptance of the machine tool, all failures caused by quality problems will be guaranteed for one year free of charge.
  2. Since the final acceptance of the machine tool, the failure of other parts caused by quality problems will be guaranteed for one year free of charge.
  3. Since the final acceptance of the machine tool, we also guarantee to actively cooperate with the user to repair the failure caused by the quality of the machine tool, and free labor costs within one year.
  4. Lifetime guarantee to provide spare parts supply at preferential prices.

Warranty service:

One year warranty( 12 months since customer receive & use the machine).

The manufacturer guarantees to provide life-long paid maintenance services for the product.

VMC 650 CNC Machine: A Comprehensive Guide to Vertical Machining Centers

Precision, efficiency, and versatility: These are the new virtues in the world of modern manufacturing ability. Enter the VMC 650 CNC Machine- a giant among the vertical machining centers that have been changing the way machining has been approached across the industries. The style of this book is adapted for professionals in the field of machining, manufacturing engineers, and technical enthusiasts in general who are keen to know the nuts and bolts of CNC machinery. We shall discuss the prospective applications for the VMC 650 CNC Machine and what makes it a preferred solution for complicated machining tasks in terms of productivity. Let’s unlock the potential of this wonderful machinery together.
