Top Slant Bed CNC lathe Manufacturers and Suppliers in China

235 LANCEN Slant Bed CNC lathe

ANTISHICNC proudly engineers CNC lathes that meet the highest standards of precision, ruggedness, and adaptability. As a leading manufacturer based in China, we empower companies worldwide to achieve superior production outcomes, supported by state-of-the-art control systems and customized configurations.

Factory Sale 235 LANCEN Slant Bed CNC lathe

  • The inclined guide rail helps offset gravitational forces, which boosts the tool’s overall steadiness and sharpens machining accuracy.

  • By positioning machine tools at a slant, the design trims the overall footprint on the shop floor, making it easier to fit more equipment into tighter areas.

  • The same incline also aids chip handling: metal filings roll neatly toward the integrated conveyor, allowing for straightforward, automated cleanup.

Technical Proposal for Slant Bed CNC Lathe

SpecificationsUnits235 LANCEN
Max. Swing over bedmmΦ460
Swing over cross slidemmΦ260
Distance between centermm570
Max. disc machining diameterΦ320
Maximum turning lengthmm550
Spindle end typeA2-6
Spindle through hole diametermmΦ66
Bar diametermmΦ50
Hydraulic chuckmm8inch
Hydraulic chuck tie rod through holemmΦ50
Guide rail formLinear Guides
Spindle taper hole taperNoMetric 70#
Spindle limit speedrpm3500rpm
Tailstock sleeve diametermm65
Tailstock sleeve inner hole taperNoMohs 4#
Tailstock sleeve travelmm80
Tailstock formHydraulic
Dota-12
Tool sizemm25X25/Æ40
Lead screw modelX direction2810
Z direction3210
Guide rail modelX directionMSA30E2SSR559
Z directionMSA35S2SS1000
X/Z motor torqueN.M12月12日
X/Z rapid movement speedm/min18/18
X-direction travelmm200
Z-direction travelmm580
Minimum setting unitmm0.001
main motor powerKW11
Total powerKW15
Machine tool net weightKgAbout 2600
Overall dimensions (length × width × height)mm2600*1750*1750

Standard Equipment&Optional Equipment

NameSpecificationsQuantitySupplier
Control SystemFANUC oi tf1setFANUC
Spindle motor11KW1setFANUC
Spindle unitTAC201setChina-Taiwan
GuideX directionMSA30E2SSR5591setHIWIN/PMI
Z directionMSA35S2SS10001setHIWIN/PMI
Ball screwX direction28101setHIWIN
Z direction32101setHIWIN
ToolTCS-100-PD1setChina-Taiwan
Automatic lubrication deviceRBCLB-2ZK1setChina
cooling pump370W1setChina
hydraulic station2.2kw1setChina
Hydraulic chuckKT08-3/A2-61setChina
Chip conveyorChain plate type1setChina

Acceptance Test

Test itemsStandard tolerance (mm)
Periodic axial play of the main shaft0.005
Radial run-out of spindle chuck positioning cone0.005
Position accuracy Repeat positioning accuracy A±0.005
Diameter uniformity0.01/150
Flatness0.025/φ300
Thread pitch product error0.010/100
Surface roughnessRa1.6μm

Components of Slant Bed CNC lathe

Spindle
Spindle

The spindle features a premium bearing assembly, precision-assembled and dynamically balanced, to ensure superior accuracy, minimal acoustic emission, and exceptional rigidity throughout its entire operational range.

Tool holder
Tool holder

The system supports a modular turret configuration, delivering rapid tool change times and high indexing fidelity. Both hydraulic and servo-driven turret variants are readily available; drill and power turrets can also be integrated where necessary.

Chuck
Chuck

The wedge-type, through-hole chuck offers rapid hydraulic actuation for workpiece loading and unloading, providing high repeatability and swift response times to maintain productivity.

Machine transmission
Machine transmission

All screws and nuts are subjected to grinding, assembly, and extensive life-testing within a climate-controlled facility to prevent thermal-induced errors. The hardened linear guides have a low friction coefficient and are designed for high-speed, high-precision travel.

Tailstock
Tailstock

The hydraulic tailstock assembly can be actuated manually or by hydraulic means; the hydraulic piston system provides uniform and consistent clamping force for workpiece stabilization.

Machine tool lubrication
Machine tool lubrication

 The RBCLB-3ZK volumetric lubrication unit ensures automatic and uninterrupted lubrication to the dovetail bearing surfaces, the carriage, and the interfaces between the ball screws and their respective nuts, preserving optimal thermal and friction characteristics in continuous operation.



235 LANCEN Slant Bed CNC lathe Structure Diagram

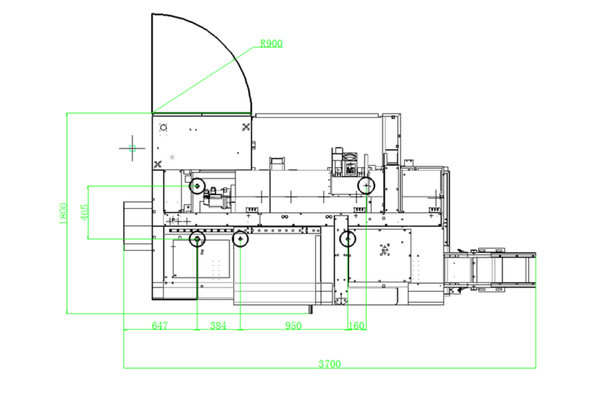

235 LANCEN Slant Bed CNC lathe Structure Diagram -1

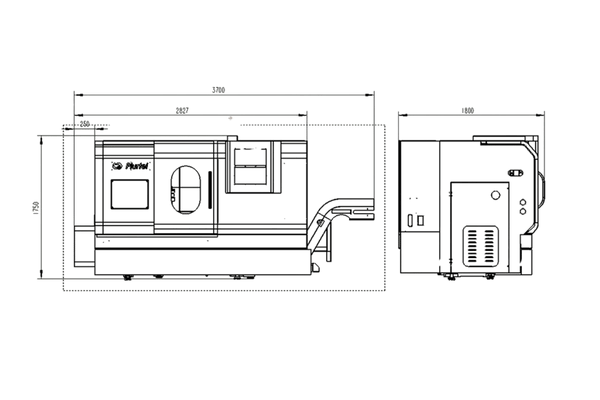

235 LANCEN Slant Bed CNC lathe Structure Diagram -2

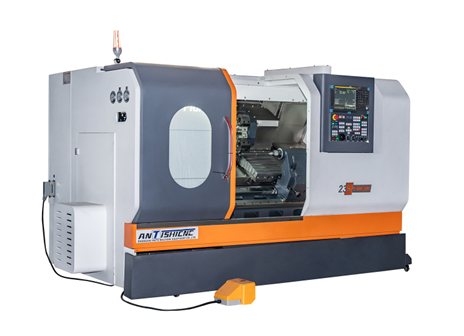

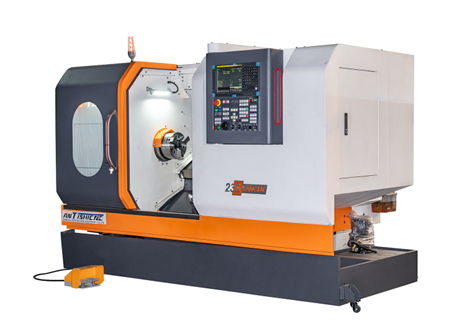

235 LANCEN Slant Bed CNC latheProduct Display Picture

Quality Assurance and After-Sales Service

At Shanghai ANTS Machine Equipment Co., Ltd., our primary objective is to deliver exceptional machine tool technical services and to uphold our service commitments to every customer consistently.

Starting from the day you formally accept the machine, any breakdowns linked to quality will be covered by a no-cost, one-year warranty. If any other parts fail due to quality problems, we will also replace those parts at no cost during that same year.

Throughout that one-year term, whenever you encounter a machine-related quality issue, our team will be there to assist you in its repair, and we will waive all labor charges. After that, we commit to supplying spare parts at preferred prices for the life of your machine so that you can keep it running smoothly for many more years.

Warranty Terms:

Our warranty lasts for one full year (12 months) from the day you start using the machine. After the warranty ends, we offer lifetime maintenance service at a fair price so your equipment always has our support.

When you choose Shanghai ANTS, you choose dependable service, ongoing support, and complete peace of mind for your investment.

Understanding the Slant Bed CNC Lathe: Features, Benefits, and Applications
