Top pipe threading machine Manufacturers and Suppliers in China

When it comes to pipe threading machines for ANTISHICNC, there really is no question of precision and performance. We, therefore, provide machines carefully handcrafted to meet the most exacting needs of the industry. From utmost precision threading to the utmost durability, our products have been carefully configured to elevate your operation to a higher level.

Q1325 Coventional Pipe Threading Lathe machine

Factory Sale Q1325 Coventional Pipe Threading Lathe machine

Fitted with high-precision large spindle bore and double chuck system, this machine is ideal to be used for the clamping and processing of large-diameter pipes.
With high-strength cast iron bed, rigidity and accuracy are assured that it will live up to even the most stringent demands of a job.
Such guideways have ultrasonic frequency-hardening treatment to provide high durability and resistance to wear to that it can satisfactorily perform in the long run.

Technical Proposal for Slant Bed CNC Lathe

SPECIFICATIONS	Units	Q1325*3000
Swing over bed	mm	800
Swing over cross slide	mm	480
Distance between centers	mm	3000
Pipe threading range	mm	120-250
Guideway width	mm	600
Max. load capacity	kg	4000
Spindle bore	mm	255
Spindle speed steps	-	VF. 4 steps
Spindle speed range	rpm	20-420
Turret/tool post	-	/Manual 4 position
Tool shank size	mm	32 x 32
X axis travel	mm	420
Z axis travel	mm	1350/2850
X axis feed steps/range	mm/r	22/0.02-0.45
Z axis feed steps/range	mm/r	26/0.07-1.33
X axis rapid traverse	mm/min	2300
Z axis rapid traverse	mm/min	4000
Tailstock quill diameter	mm	120
Tailstock quill taper	-	MT6
Tailstock quill travel	mm	250
Main spindle motor	kw	15
Rapid traverse motor	kw	1.1
Coolant pump motor	kw	0.125
Weight for 3000	kg	9000
Dimension for 3000	mm	5600x1700x1600

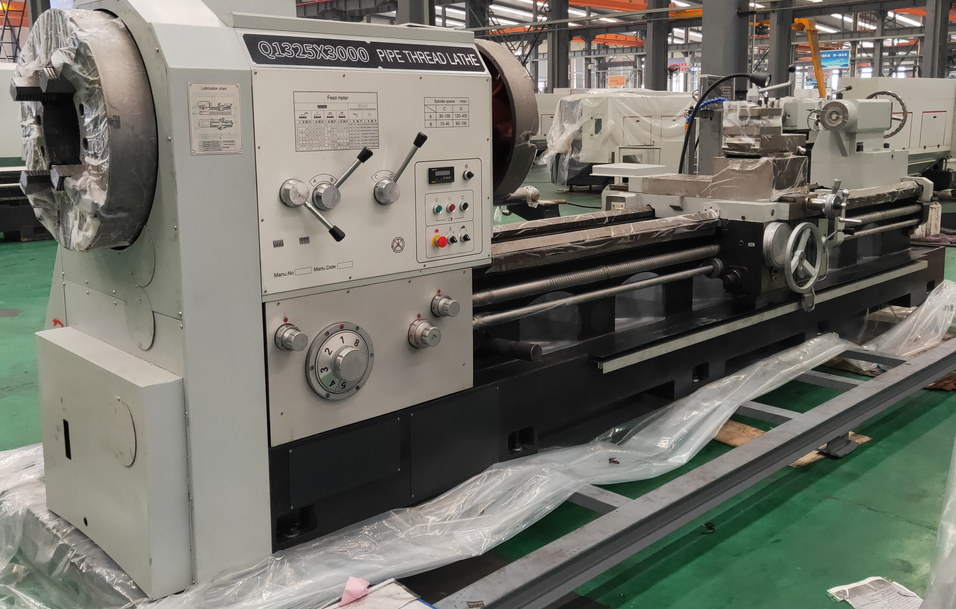

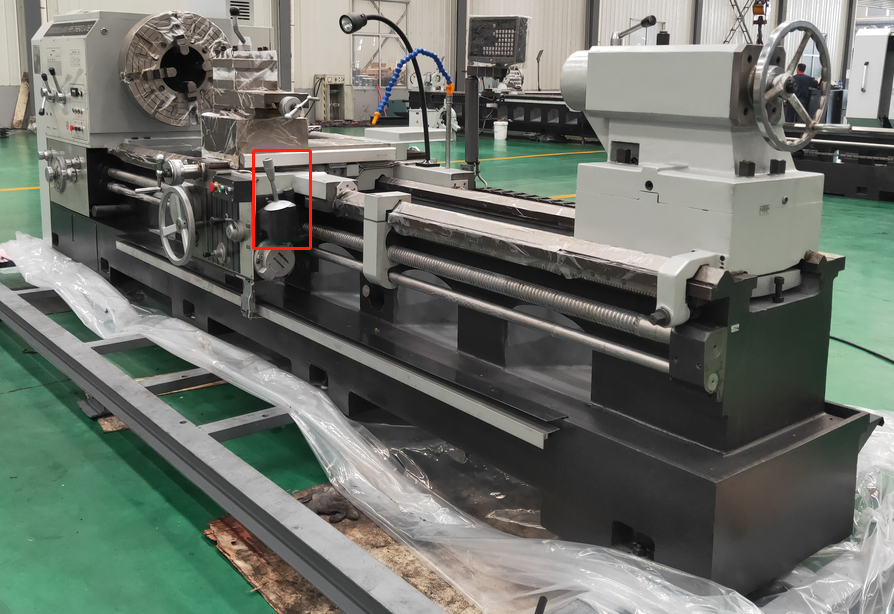

Q1325 Coventional Pipe Threading Lathe machine Product Display Picture

Quality Assurance and After-Sales Service

At Shanghai ANTS Machine Equipment Co., Ltd., our primary objective is to deliver exceptional machine tool technical services and to uphold our service commitments to every customer consistently.

Starting from the day you formally accept the machine, any breakdowns linked to quality will be covered by a no-cost, one-year warranty. If any other parts fail due to quality problems, we will also replace those parts at no cost during that same year.

Throughout that one-year term, whenever you encounter a machine-related quality issue, our team will be there to assist you in its repair, and we will waive all labor charges. After that, we commit to supplying spare parts at preferred prices for the life of your machine so that you can keep it running smoothly for many more years.

Warranty Terms:

Our warranty lasts for one full year (12 months) from the day you start using the machine. After the warranty ends, we offer lifetime maintenance service at a fair price so your equipment always has our support.

When you choose Shanghai ANTS, you choose dependable service, ongoing support, and complete peace of mind for your investment.

Featured Blog Topics

Insights, Tips & Trends

CNC Workholding: Types, Fixtures & How to Choose

CNC Workholding Explained: Types, Fixtures, and How to Choose the Right Setup

June 30, 2026

Updated June 2026 · Reviewed by the ANTISHICNC technical team CNC workholding is the set of

Machining Surface Finish: What Each Process Can Achieve

Machining Surface Finish: What Each Process Can Achieve

June 23, 2026

Machining surface finish is the texture a cutting process leave on a part, the fine pattern

CNC Machining for Aerospace: Materials, Tolerances & Machines

CNC Machining for Aerospace: Materials, Tolerances & Machines

June 22, 2026

Aerospace CNC machining is computer-controlled subtractive manufacturing of flight-critical parts — turbine blades, structural bulkheads, landing-gear

Q1325 Pipe Thread Lathe Machine: Precision Equipment for Pipe Threading

For pipe threading jobs requiring utmost precision and efficiency, the Q1325 pipe thread lathe machine is a significant game-changer. This state-of-the-art equipment has been designed to fulfill the requirements of industrial applications where precise threading solutions have to be offered, thereby ensuring durability, precision, and versatility. Whether oil and gas, construction, manufacturing, or mediums in between, Q1325 guarantees unwavering results while making optimal use of the operational flow charts. This article goes through the important aspects, advantages, and applications of the Q1325 Pipe Thread Lathe Machine and gives you enough knowledge on how to take your threading processes up a notch. So, let us delve into why this cutting-edge machine is a serious consideration for any professional aspiring excellence in the work he or she executes.

×
