Top CNC Pipe threading lathe Manufacturers and Suppliers in China

Qk1327x1500 Cnc Pipe Threading Lathe

ANTISHICNC is a Chinese CNC pipe threading lathe manufacturer concerned with the making of durable and high-performance machines for industrial precision and the realization of efficiency.

Factory Sale QK1327X1500 CNC Pipe threading lathe

  • The QK horizontal lathe is a multifaceted machine that undertakes various turning operations on outer surfaces, inner holes, end faces, and more.

  • Designed for precision machining, the machine offers higher power and speed ratings, lower noise levels, and utmost rigidity and durability.

  •  With tool holding and longitudinal feed, the long tapers are turned by the motor, in addition to drilling, boring, and nesting, among other operations.

  • It is suitable for high-performance turning on carbide tools and works well on both ferrous and non-ferrous metals.

Technical Proposal for CNC Pipe threading lathe

The maximum turning diameter on the bed800mm
Servo motor15NM,10NM
The maximum turning diameter on the tool post470mm
Middle pallet width (X axis)330mm
Bed upper rail width600mm
Spindle through hole diameter275mm
Spindle speed25-84/85-342
SpindleManual two-range
Chuck distance1500mm
The smallest moving unit in the Z direction of the carriage0.001mm/min
The smallest moving unit in the X direction of the carriage0.0005mm/min
Carriage Z travel1500mm
Carrier X travel420mm
X-phase positioning accuracy0.015mm
Z phase positioning accuracy0.02mm
X-phase repeat positioning accuracy0.01mm
Z phase repeat positioning accuracy0.01mm
Maximum processing length1350
Carrier X/Z direction rapid movement speed6000mm/min
Tailstock sleeve diameter130mm
Tailstock sleeve tapered holeMT6
Maximum stroke of tailstock sleeve250 mm
main motor power 15kw
Electric tool post repeat positioning accuracy0.002mm
Total Weight5.5T
Appearance size (mm)2200*2200*4100(H*W*L)

Standard Equipment&Optional Equipment

NameSpecificationsQuantitySupplier
Control SystemFANUC oi tf1setFANUC
Spindle motor11KW1setFANUC
Spindle unitTAC201setChina-Taiwan
GuideX directionMSA30E2SSR5591setHIWIN/PMI
Z directionMSA35S2SS10001setHIWIN/PMI
Ball screwX direction28101setHIWIN
Z direction32101setHIWIN
ToolTCS-100-PD1setChina-Taiwan
Automatic lubrication deviceRBCLB-2ZK1setChina
cooling pump370W1setChina
hydraulic station2.2kw1setChina
Hydraulic chuckKT08-3/A2-61setChina
Chip conveyorChain plate type1setChina

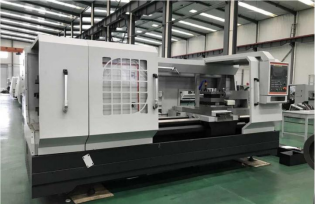

QK1327X1500 CNC Pipe threading lathe Product Display Picture

Quality Assurance and After-Sales Service

Shanghai ANTS Machine Equipment Co., Ltd. fully fulfills the terms of machine tool technical services promised to users.

  1. Since the final acceptance of the machine tool, all failures caused by quality problems will be guaranteed for one year free of charge.
  2. Since the final acceptance of the machine tool, the failure of other parts caused by quality problems will be guaranteed for one year free of charge.
  3. Since the final acceptance of the machine tool, we also guarantee to actively cooperate with the user to repair the failure caused by the quality of the machine tool, and free labor costs within one year.
  4. Lifetime guarantee to provide spare parts supply at preferential prices.

Warranty service:

one year warranty( 12 months since customer receive & use the machine).

The manufacturer guarantees to provide life-long paid maintenance services for the product.

qk1327x1500 CNC Pipe Threading Lathe: Precision and Performance in Pipe Threading

In threading pipes, never fail and never rush! The qk1327x1500 CNC Pipe Threading Lathe is undoubtedly the latest in machining technology, set to meet the ever-increasing expectations of industries requiring precise pipe threading. It represents CNC technology at its best when combined with the toughness of a lathe to achieve the highest level of precision, repeatability, and productivity. This article highlights some key features, benefits, and uses of the qk1327x1500, and demonstrates how versatile it is in applying toward transforming your operations. Discover why this is a game-changer as the qk1327x1500 increases the performance of professionals in manufacturing, oil and gas, and construction.
