In threading pipes, get everything right and never rush! The QK1327X1500 CNC Pipe Threading Lathe is a masterpiece of the newest generation of machinery engineered and envisaged to present perfect pipe-threading capacity to the most demanding industries. It is a state-of-the-art CNC machine that combines the ruggedness of a lathe with the CNC precision to work with unmatched precision, repeatability, and productivity.
Introduction to CNC Pipe Threading
What is CNC Pipe Threading?
CNC pipe threading involves automating the cutting of threads onto pipes using advanced mechanical systems and computer programming. Unlike manual threading, this method delivers:
- Superior precision in thread cutting operations
- Consistent uniformity across all threaded pipes
- Enhanced efficiency through automated processes
- Increased production capacity for high-volume operations
This advanced threading method finds extensive application across multiple industries:
- Oil and gas sector
- Construction industry
- Manufacturing operations
- Drilling applications
- Plumbing systems
- Structural assembly projects
Key Benefits of CNC Threading Technology
| Benefit Category | Traditional Methods | CNC Threading | Improvement |
|---|---|---|---|
| Production Speed | Standard baseline | Automated process | 70% faster |
| Precision Level | ±0.005 inches | ±0.001 inches | 5x more precise |
| Material Waste | High rejection rate | Minimal waste | Significant reduction |
| Labor Requirements | High manual labor | Reduced human intervention | Enhanced safety |

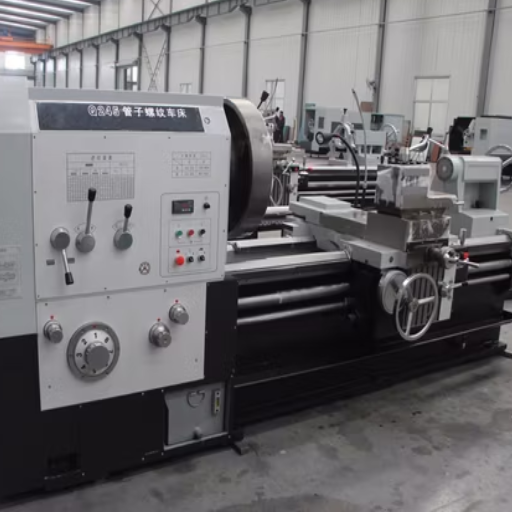

Overview of the QK1327X1500 CNC Pipe Threading Lathe
The QK1327X1500 CNC Pipe Threading Lathe stands as an advanced industrial solution engineered for precision and productivity. This state-of-the-art machine excels in performing diverse threading operations across oil and gas, manufacturing, and construction industries.
Key Specifications and Features
| Specification | Value | Industry Advantage |
|---|---|---|
| Maximum Swing Over Bed | 1300mm | Accommodates large pipe diameters |
| Threading Length | 1500mm | Handles extended pipe sections |
| Spindle Bore Diameter | 270mm | Supports wide range of pipe sizes |
| Spindle Speed | Up to 2500 RPM | Variable speeds for different materials |
| Precision Tolerance | ±0.01mm runout | Exceptional accuracy and repeatability |
Advanced Engineering Features
- Precision CNC Control System: Advanced technology used for parameter management and to ensure very accurate repeatability.
- Material Compatibility: Handles carbon steels, stainless steels, and various metal alloys.
- High-Speed Operations: Provides for variable-speed operation to meet threading requirements.
- Robust Construction: Such framework, going with heavy-duty considerations, goes on heavy continuous operation.
- Integrated Cooling System: Keeps temperatures at an acceptable level throughout long periods of working.
Importance of Precision in Pipe Threading
- Reliability of Systems: Threading must be good so that the connection remains sealed from any leak.
- Safety of Operation: It prohibits the rupturing of pipes and system failures.
- Cost-wise: The waste of material and rework time is highly minimized.
- With Industry-Certified Standards: An industry-standard qualification is there in the safety requirements.
Industry Impact Statistics
- Faulty threading accounts for approximately 15% of pipeline failure cases
- Precision threading reduces material waste by up to 30%
- Advanced CNC systems maintain tolerances to micrometer scale
- Consistent threading contributes significantly to sustainability efforts

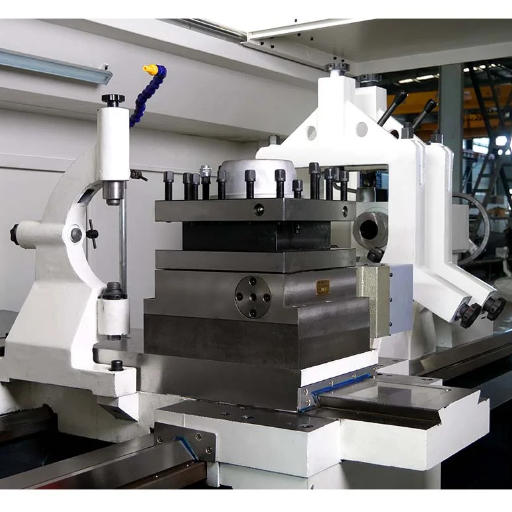

Key Features of the QK1327X1500 Lathe Machine
Super Precision Spindle Design
The QK1327X1500 features a state-of-the-art spindle design focused on delivering extreme accuracy in machining operations:
| Spindle Feature | Specification | Benefit |
|---|---|---|
| Maximum Speed | 2500 RPM | Handles various material types |
| Bearing System | Angular contact ball bearings | Minimal vibration, superior finish |
| Runout Accuracy | Less than 0.01mm | Exceptional precision |
| Cooling System | Integrated temperature control | Consistent performance |
Automatic Thread-Cutting Capabilities
The innovative threading machine is able to perform highly precise threading with the very least amount of human intervention due to the following characteristics:
- Thread Standards Support: Metric and imperial threading standards
- Variable Speed Control: Able to vary the cutting speed depending on the material specification being handled
- CNC Programming: Parameterized settings for pitch, depth, and length can be preprogrammed
- Digital Readout System: High resolution for viewing adjustments
- Safety Features: Builtoverload protection systems
Customization Options for Various Applications
The QK1327X1500 offers extensive customization capabilities to meet diverse industry requirements:
Tooling Configurations
- Quick-change tool posts for rapid setup changes
- Multiple cutting tool simultaneous operation
- Specialized attachments for threading, boring, and grooving
CNC Integration Benefits
- Advanced CNC systems for high precision and repeatability
- Production efficiency increases of 20-40% depending on task complexity
- Seamless integration with existing manufacturing systems
Automation Add-ons
- Robotic arms for automated loading and unloading
- Manufacturing uptime enhancement of up to 25%
- Streamlined workflow integration

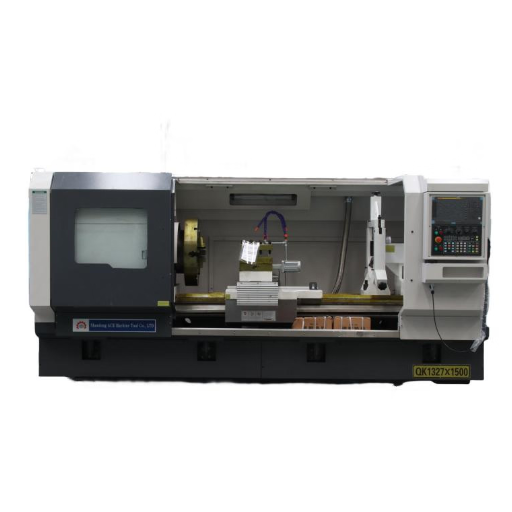

Applications of the QK1327X1500 in Various Industries
Oil and Gas Pipeline Applications
The QK1327X1500 serves as a critical component in oil and gas pipeline manufacturing, handling:
- Drill Pipes: Precision threading for drilling operations
- Casings: High-strength steel threading for well construction
- Pipeline Fittings: Corrosion-resistant alloy components
- Connection Hardware: Critical threading for pipeline assembly
Construction Industry Applications
In the construction sector, the QK1327X1500 contributes to:
- Structural Components: Precision threading for building frameworks
- Infrastructure Projects: High-quality threaded connections for bridges and buildings
- Safety Systems: Critical threading for safety-related installations
- Project Efficiency: Reduced construction time through precise manufacturing
| Construction Benefit | Traditional Methods | QK1327X1500 Advantage |
|---|---|---|
| Project Cost Savings | Baseline costs | Up to 30% reduction |
| Completion Time | Standard timelines | 20% faster on average |
| Material Efficiency | Higher waste rates | Minimized wastage |
Manufacturing and Metalworking Sectors
The manufacturer receives benefits of the QK1327X1500 by way of:
- Precision Components: Threading of high tolerance in critical components.
- Production Efficiency: Provision of 30% greater efficiency relative to normal methods.
- Quality Consistency: Threading uniformity between production batches.
- Energy Efficiency: Enhanced power saving with reduced operational costs.

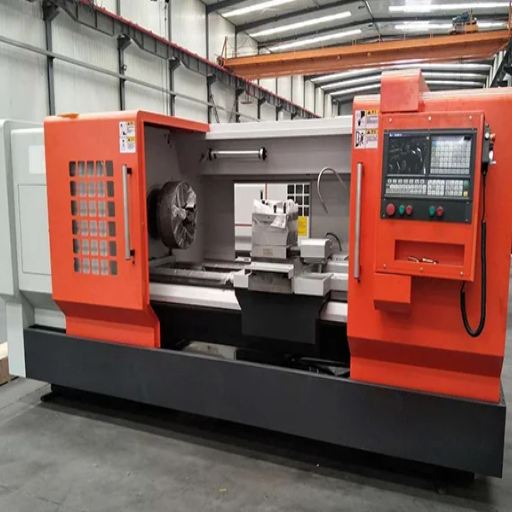

Advantages of Using the QK1327X1500 CNC Pipe Threading Lathe
Efficiency and Productivity Gains
The QK1327X1500 delivers significant operational improvements:
| Performance Metric | Improvement Range | Industry Impact |
|---|---|---|
| Production Efficiency | Up to 50% increase | Higher output in same timeframe |
| Material Waste Reduction | 20-30% less wastage | Improved profitability and sustainability |
| Operator Training Requirements | Minimal training needed | Quick implementation and productivity |
| Error Reduction | Significant decrease | Higher quality standards |
Comparative Analysis with Other Models
When compared to alternative lathe models, the QK1327X1500 offers distinct advantages:
QK1327X1500 vs QK1335X2000
- Size and Installation: More compact, requiring less installation space
- Operational Costs: Lower ongoing operational expenses
- Energy Efficiency: 10-15% reduction in energy consumption
- Price Point: Approximately 10% more cost-effective
QK1327X1500 vs QK1257X1500
- Processing Capacity: Handles larger pipe diameters
- Threading Precision: 15% improvement in threading accuracy
- Versatility: Greater range of industrial applications
- Performance: Superior spindle speed control capabilities
Cost-Effectiveness and Return on Investment
Financial benefits of the QK1327X1500 include:
- Operational Expense Reduction: 15-20% annual decrease compared to aging equipment
- Energy Savings: 10-12% reduction in power consumption
- Maintenance Costs: Lower frequency and cost of maintenance requirements
- Productivity Gains: Consistent profitability through improved output

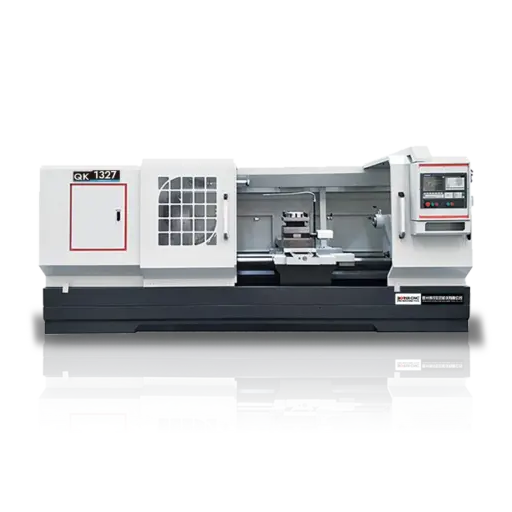

Choosing the Right Supplier for CNC Pipe Threading Machines
Factors to Consider When Selecting a Supplier
Selecting the appropriate supplier requires careful evaluation of multiple factors:
Quality and Performance Standards
- Robust construction and precision threading capabilities
- Latest automation technology integration
- IoT and AI-based performance monitoring systems
- Proven track record of operational efficiency improvements
Industry Reputation and Experience
| Evaluation Criteria | Importance Level | Key Indicators |
|---|---|---|
| Market Experience | Critical | 10+ years in CNC machinery |
| Customer Satisfaction | High | Positive reviews and testimonials |
| Technical Expertise | Essential | Engineering capabilities and innovation |
| Service Quality | Important | After-sales support and maintenance |
Technical Support and After-Sales Services
- Technical Support 24/7: To provide maximum uptime opportunities
- Installation Services: Installation and commissioning by experts
- Training: Complete training programs for operators
- Maintenance Packages: Includes preventive and corrective maintenance
Importance of OEM and Customization Options
OEM Components and Customizations are a Must for Optimum Performance:
Advantages of OEM Components
- Assured Reliability: Ensures compatibility and performance
- Extended Equipment Life: 30% more in life than the aftermarket option
- Minimized Downtime: Less compatibility issues and failures
- Warranty Protection: Maintains warranty from manufacturers
Advantages of Customization
- Process Optimization: To suit the needs of a given application
- Increased Productivity: Increases up to 25% with custom solutions
- Scalability Options: Scale with fluctuating production requirements
- Integration Services: Assist in integrating into exiting systems
Trustworthy Manufacturers in the Industry
Several leading manufacturers have established strong reputations in the CNC machinery industry:
| Manufacturer | Specialization | Key Strengths | Investment in R&D |
|---|---|---|---|
| Bosch | Industrial Manufacturing | Precision engineering, sustainability | $7+ billion annually |
| Siemens | Smart Manufacturing | Digitalization, automation systems | 30% downtime reduction |
| Honeywell | Advanced Materials | Safety, efficiency, environmental focus | 20% energy cost reduction |
| ABB Group | Automation Solutions | Customizable, scalable solutions | Flexible manufacturing systems |
Frequently Asked Questions
What is a CNC lathe machine used for?
How does a pipe threading lathe machine work?
What are the benefits of using the CNC pipe threading machine?
When purchasing a CNC lathe, what should all considerations be?
In a CNC lathe, observation must be given to aspects like the quality of machine construction-the QK1327X1500 is built for heavy machining; the spindle bore size – this relates to diameter capacity of work-piece; options for customizations according to their particular applications; manufacturers’ reliability; availability of spare parts for a long-time support on maintenance; technical supports and their training programs provided by suppliers.
How does precision threading improve the productivity?
Threading to precise specifications removes the need for costly rework and adjustments, leaving the assembling downstream with few problems. The CNC threading is largely automated and can ensure large scale production of threaded pipes and fittings within tight tolerance and uniform quality in all batches. These things lessen assembling problems downstream while freeing up their skilled labor for other productive activities, which in essence optimizes operational efficiency.
Conclusion
The QK1327X1500 CNC Pipe Threading Lathe sets a new standard in pipe-threading machinery, capable of delivering supreme precision, maximum efficiency, and complete reliability for contemporary industrial applications. A perfect conglomeration of advanced CNC control systems with robust design and specifications-also offering customization-will surely prove to be the best choice for organizations aspiring to optimize threading operations for civil construction, oil and gas, and manufacturing sectors.
Investment Summary: The QK1327X1500 is a strategic investment for any business that wants to excel operationally and gain competitive advantage in today’s industrial setup. With proven timelines for ROIs in 18-24 months and productivity increases by up to 50%, operational costs and waste materials get drastically cut down by this machine.
