Top Universal Lathe Manufacturers and Suppliers in China
CS6250C(Spindle aperture diameter φ105 mm)
Need a precision-engineered universal lathe that marries maintenance free durability with the latest technology at an affordable price? Collaborate with China’s leading manufacturers and suppliers of ANTISHICNC to uplift your machining competency without an extravagant expense.
Factory Sale CS6250C(Spindle aperture diameter φ105 mm) Universal Horizontal Lathe
Technical Proposal for Universal Lathe
| Item | Unit | Parameter | |
|---|---|---|---|
| CS6250C | |||
| Capacity | Max swing over bed | mm | Φ500 |
| Max swing in gap | mm | Φ710 | |
| Effective length in gap | mm | 240 | |
| Max swing over slide | mm | Φ300 | |
| Max workpiece length | mm | 1000/1500/2000/3000 | |
| Spindle | Spindle Aperture Diameter | mm | Φ105 |
| Spindle speed | r/min | 12 step 32-1600 | |
| Spindle motor | kW | 7.5 | |
| Tailstock | Quill dia./travel | mm | φ75/150 |
| Taper of center | MT | 5 | |
| Tool post | Number of station/Tool ?section | 4/25X25 | |
| Feed | Max X-axis travel | mm | 145 |
| Max Z-axis travel | m/min | 320 | |
| X-axis feed | mm/r | 65 sorts 0.063-2.52 | |
| Z-axis feed Z-axis feed | mm/r | 65 sorts 0.027-1.07 | |
| Metric thread | mm | 22 sorts 1-14 | |
| Inch thread | t.p.i | 25 sorts 28-2 | |
| Module thread | πmm | 18 sorts 0.5-7 | |
| DP thread | t.p.i. π | 24 sorts 56-4 | |
| Others | Coolant pump motor | kW | 0.06 |
| Machine length | mm | 2632/3132/3632/4632 | |
| Machine width | mm | 975 | |
| Machine height | mm | 1270 | |
| Machine weight | kg | 2200/2400/2600/2900 |
Standard Equipment&Optional Equipment
| NO. | Name | Unit price in USD |
|---|---|---|
| 1 | Living center | 70/pcs |
| 2 | Faceplate | 250/pcs |
| 3 | Chuck protection | 50/pcs |
| 4 | Tool post protection | 90/pcs |
| 5 | Mounting pad and foot blot | 40/pcs |
| 6 | Curtain three bar protection | 250/pcs |
| 7 | Taper turning attachment | 450/pcs |
| 8 | Thread chasing dial | 120/pcs |
| 9 | Quick change tool post Italy type | 800 |
| 10 | Digital readout(2 AXIS) | 1 M：470 |
| 1.5 M：540 | ||
| 2 M：800 | ||
| 3M：1220 | ||
| 11 | Digital readout(3 AXIS) | 1 M：640 |
| 1.5 M：690 | ||
| 2 M：1000 | ||
| 3M：1500 |

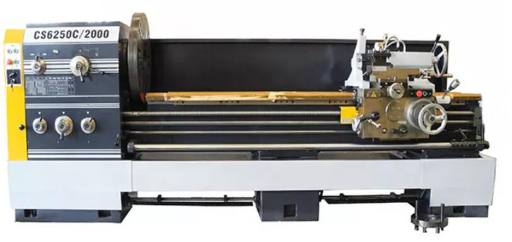

CS6250C Universal Lathe Product Display Picture
Quality Assurance and After-Sales Service
- The equipment is a complete, brand-new complete set of equipment, with reasonable structure, high-strength stability, safety, reliability and durability, simple operation and convenient maintenance.
- The main parts of the equipment are made of high-quality materials. The selected mechanical, hydraulic, electronic and electrical components are advanced, high-quality and reliable series products, and meet the requirements of standardization and standardization.
- The design, manufacture and test of the equipment comply with the latest national standards, international industrial standards (ISO), and international electro technical standards (IEC).
- Take appropriate safety protection measures for the dangerous parts of the equipment that may cause personal or equipment injury.
- The main color of the equipment is: Standard color system: yellow/black or the color specified by the customer. Ensure that the paint coating thickness is uniform and beautiful.
Warranty service:
one year warranty( 12 months since customer receive & use the machine).
The manufacturer guarantees to provide life-long paid maintenance services for the product.
