Top Vertical Lathe For Sale Manufacturers and Suppliers in China

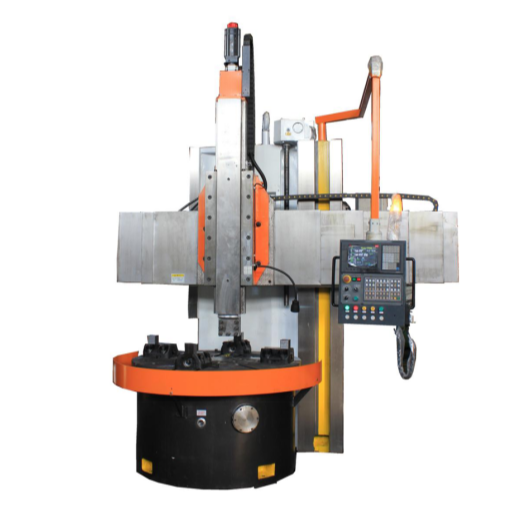

CNC Vertical Lathe

ANTISHICNC produces fine movement vertical lathes with high-precision design for extraordinary performance, reliability, and customization needs to counter present machining challenges across various industries.

Factory Sale CK5120 CNC Vertical Lathe

  • The high-precision worktable spindle is mounted on biserial short cylindrical roller bearings for lateral centering. Hydrostatic guideways are used in the axial direction for high running accuracy, load capacity, and minimum thermal deformation, matching the needs of highly demanding applications.

  • AC servo motor drive coupled with ball screw-drive produces smooth and accurate movements in the lathe feed system. For added safety and convenience, the crossbeam rail head is provided with a closed shield to protect the operator while maintaining a friendly user interface.

  • This vertical CNC lathe is equipped with advanced technology, very reliable, and very efficient, therefore, the first choice in any industry that needs accurate and high-quality machining solutions.

Technical Proposal for CK5120 CNC Vertical Lathe

SpecificationUnitCK5120
Table diametermm1800
Max. turning diametermm2000
Max. height of work-piecemm1250
Max. weight of work-pieceT8
Tool section sizemm30x40
Max. Cutting force of vertical tool postN25000
Table speed steps4 steps stepless
Table speed ranger/min3.2-100
Max.travel of vertical tool post(horizontal)mm1115
Max.travel of vertical tool post(vertical)mm800
Vertical tool post feed rangemm/min0.5-2000
Vertical tool post feed stepsstepless
Tool post rapid traversemm/min2000
Max.travel of cross beammm850
Cross beam lifting speedmm/min440
Main motor powerKw30
Cross beam lifting motor powerKw2.2
CNC coordinate axisXZ
CNC systemGSK 980TDI
Positioning accuracymm0.03
Repeat positioning accuracyMm0.015
Machine weightT17
Overall dimensionsmm3200*2800*3250

Standard Equipment&Optional Equipment

NO.DescriptionSpecificationQTY
1ManualIncluding electrical principle hydraulic system, lubrication system, equipment installation foundation plan, certificate and manual1
2Chuck JawsCK51204 Set
3Tool holderCK51201 Set
5Machine mattress ironCK51208 pcs
11Allen key6;S91-71 pcs
8;S91-71 pcs
10;AS91-71 pcs
12;S91-71 pcs
16;S91-71 pcs

Factory Sale CK5112D/CK5116D/CK5120D CNC Vertical Lathe

  • The vertical CNC lathe is a high-performance machine designed for advanced precision machining in various industries. Regarded as a highly flexible and efficient machining tool, it is suited for both rough and finish machining of internal and external cylindrical surfaces, conical surfaces, end faces, grooves, arcs, various types of curved surfaces, and threading.

  • The telescope-type worktable spindle employs a very precise short cylindrical roller bearing of adjustable radial clearance in order to assure perfect centering.

  • The feed-motion system of the lathe employs AC servo-motors and ball screw drives for precision realization of desired motions. To enhance the safety aspect and ease of operation, the cross beam rail head is also enclosed.

Technical Proposal for CK5112D/CK5116D/CK5120D CNC Vertical Lathe

SpecificationUnitCK5112DCK5116DCK5120D
Table diametermm100014001800
Max. turning diametermm125016002000
Max. height of work-piecemm100010001250
Max. weight of work-pieceT3.258
Tool section sizemm30x4030x4030x40
Max. Cutting force of vertical tool postN250002500025000
Table speed steps4 steps stepless4 steps stepless4 steps stepless
Table speed ranger/min6.3-2005-1603.2-100
Max.travel of vertical tool post(horizontal)mm7009151115
Max.travel of vertical tool post(vertical)mm650800800
Vertical tool post feed rangemm/min0.5-20000.5-20000.5-2000
Vertical tool post feed stepssteplesssteplessstepless
Tool post rapid traversemm/min200020002000
Max.travel of cross beammm650650850
Cross beam lifting speedmm/min440440440
Main motor powerKw223030
Cross beam lifting motor powerKw2.22.22.2
CNC coordinate axisXZXZXZ
CNC systemFanuc 0i (5)Fanuc 0i (5)Fanuc 0i (5)
Positioning accuracymm0.030.030.03
Repeat positioning accuracymm0.0150.0150.015
Machine weightTon8.51317
Overall dimensionsmm2360*2277*34033200*2570*31503200*2800*3250

Factory Sale CK5123D CNC Vertical Lathe

  • It serves high precision, efficiency, and versatility, consequently a high-performance vertical CNC turning machine. Ideal for various industries, the vertical turning machine is used for roughing and finishing internal and external cylindrical surfaces, conical surfaces, end faces, grooves, arcs, complex curves, threading, and other operations.

  • The worktable's main spindle utilizes a high-precision, adjustable radial clearance biserial short cylindrical roller bearing to ensure accurate centering. In the axial direction, the worktable utilizes a CC hydrostatic guideway, which provides high running accuracy, high load capacity, and minimal thermal deformation.

  • An AC servo motor and a ball screw drive operate the feed system of the machine, giving increased precision and reliability. On the other hand, a protective shield is located on the railhead of the crossbeam for increased safety and simplicity of operation.

Technical Proposal for CK5123D CNC Vertical Lathe

SpecificationUnitCK5123D
Table diametermm2000
Max. turning diametermm2300
Max. height of workpiecemm1350
Max. weight of workpieceT8
Tool section sizemm30x40
Max. Cutting force of vertical tool postN25000
Table speed steps4 steps stepless
Table speed ranger/min3.2-100
Max.travel of vertical tool post(horizontal)mm1300
Max.travel of vertical tool post(verticall)mm800
Vertical tool post feed rangemm/min0.5-2000
Vertical tool post feed stepsstepless
Tool post rapid traversemm/min2000
Max.travel of cross beammm850
Cross beam lifting speedmm/min440
Main motor powerKw30
Cross beam lifting motor powerKw2.2
CNC coordinate axisXZ
CNC systemGSK 980TDC
Positioning accuracymm0.03
Repeat positioning accuracyMm0.015
Machine weightT18
Overall dimensionsmm3200*2850*3350

Technical Proposal for CK5240D CNC Vertical Lathe

SpecificationUnitCK5240D
Table diametermm3200
Max. turning diametermm4000
Max. height of workpiecemm1600
Max. weight of workpieceT16
Table speed steps4 steps stepless
Table speed rangerpm2~63
Max.cutting force of right vertical tool postKN35
Horizontal travel of right vertical tool postmm-50~2150
Vertical travel of right rammm1000
Right vertical tool post feed rangemm/min0.1--500
Max.cutting force of left vertical tool postKN30
Horizontal travel of left vertical tool postmm/min-50~2150
Vertical travel of left rammm1000
Max.travel of cross beammm1250
Cross beam lifting speedmm/min350
Cross beam lifting motor powerkw11
Main motor powerkw55
Overall dimensiontmm5180*4700*5300
Machine weighT43

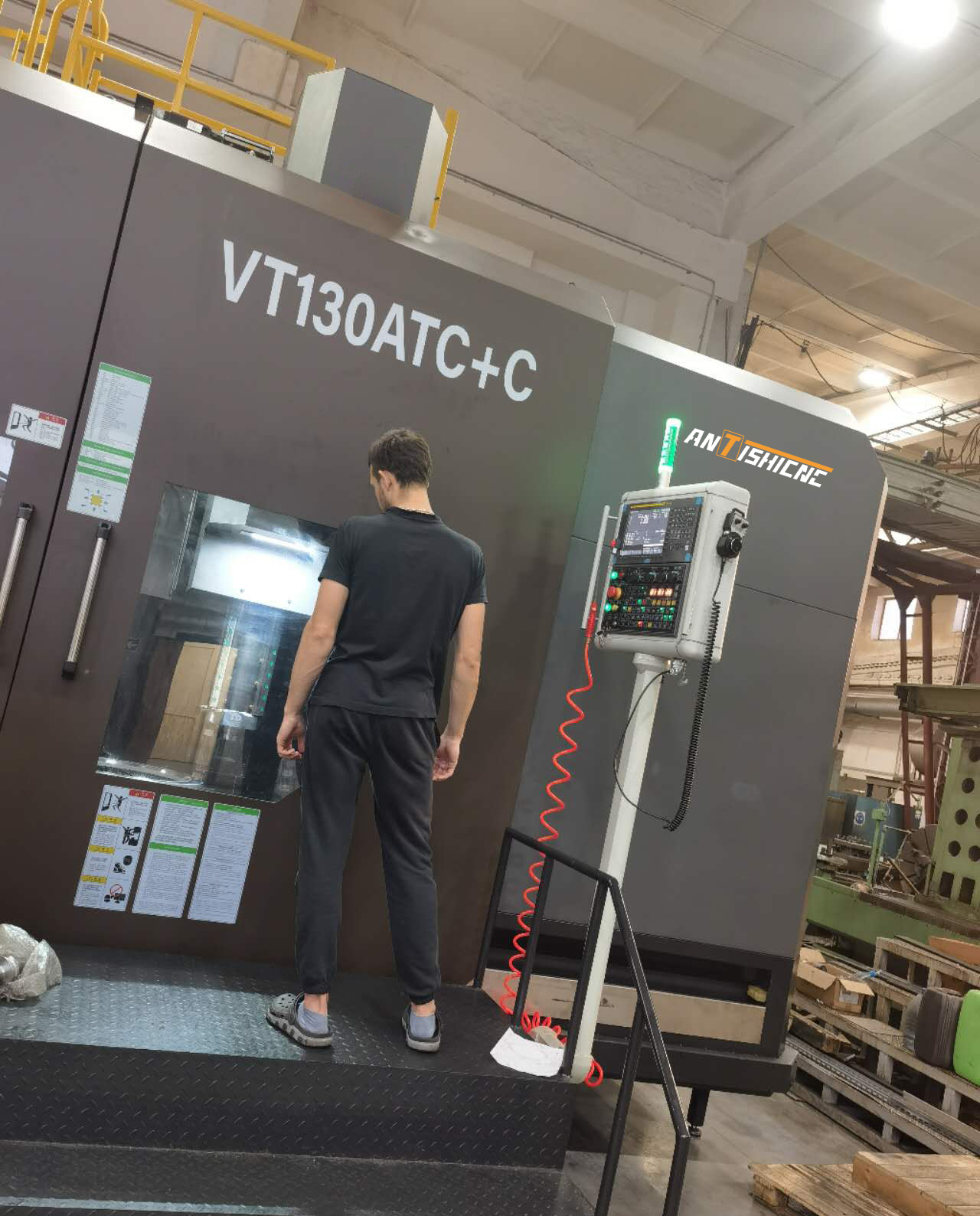

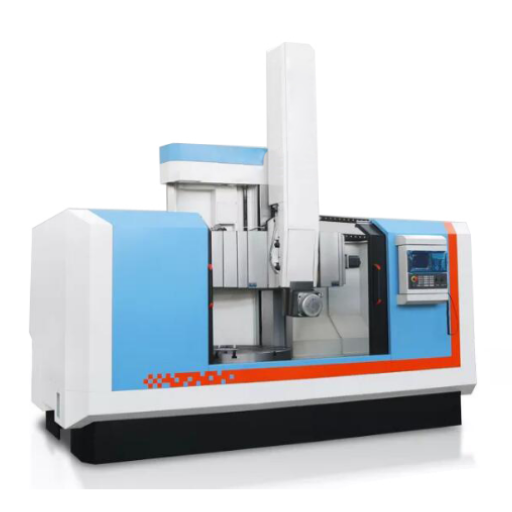

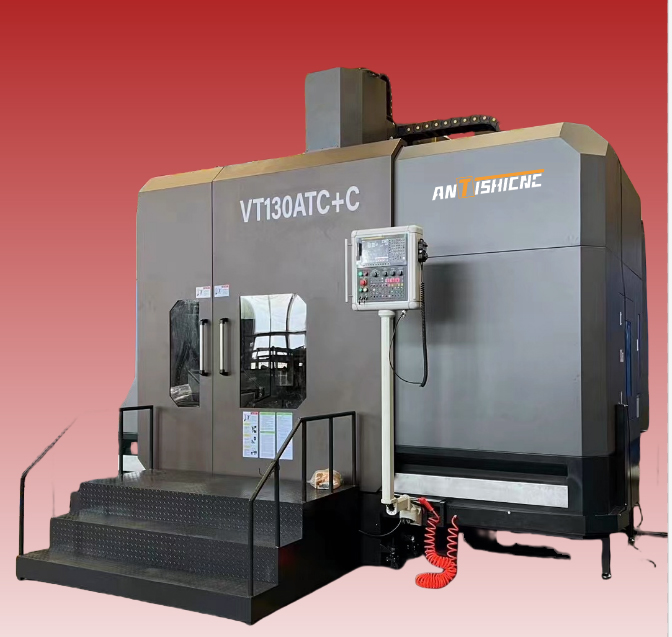

CNC Vertical Lathe Product Display Picture

Quality Assurance and After-Sales Service

  1. The equipment is a complete, brand-new complete set of equipment, with reasonable structure, high-strength stability, safety, reliability and durability, simple operation and convenient maintenance.
  2. The main parts of the equipment are made of high-quality materials. The selected mechanical, hydraulic, electronic and electrical components are advanced, high-quality and reliable series products, and meet the requirements of standardization and standardization.
  3. The design, manufacture and test of the equipment comply with the latest national standards, international industrial standards (ISO), and international electrotechnical standards (IEC).
  4. Take appropriate safety protection measures for the dangerous parts of the equipment that may cause personal or equipment injury.
  5. The main color of the equipment is: Standard color system: blue/green or the color specified by the customer. Ensure that the paint coating thickness is uniform and beautiful.

Warranty Terms:

one year warranty( 12 months since customer receive & use the machine).

The manufacturer guarantees to provide life-long paid maintenance services for the product.

CNC Vertical Lathe Machine: Understanding Vertical Turning Centers

CNC vertical lathe machines are one of the most important machines for modern manufacturing. With their complex turning operations, these machines are both efficient and accurate. But what distinguishes these from horizontal lathes? How do they operate, and why do industries like aerospace and automotive prefer them? Here is a brief explanation of the main features, benefits, and applications of CNC vertical lathe machines so that anyone wishing to learn more will have a clear picture. This post aims to shed light on the topic for machinists, manufacturing managers, and anyone curious about advances in machining.
