Top EDM Die Sinker Manufacturers and Suppliers in China

G45 CNC Mirror Discharge Die Sinker EDM Machine EDM Die Sinker

ANIMINANTISCO has established itself as one of a few global leaders for EDM Die Sinker.Making unique solutions that combine precision with affordability and efficiency is what it offers.We have looked at the foremost manufacturers in the field and the unique benefits of choosing Chinese EDM Die Sinker machines.

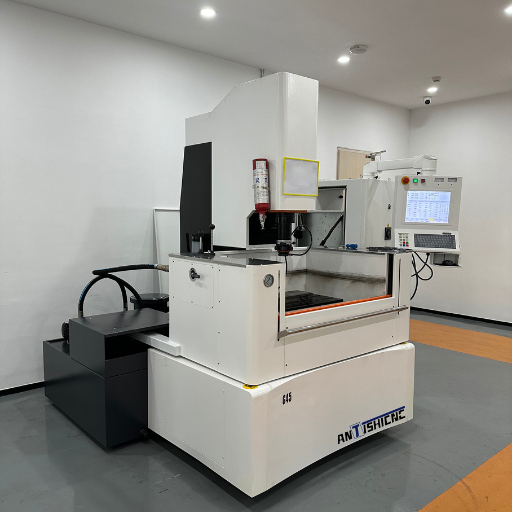

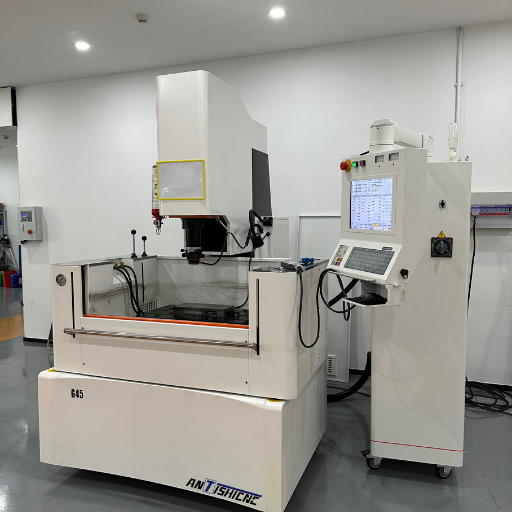

Factory Sale G45 CNC Mirror Discharge Die Sinker EDM Machine

High-precision machining: These techniques allow control accuracies well below 0.1 μm, making it cling to an order of magnitude higher than that from normal CNC processes.It features the bus system and a closed-loop system for consistent accuracy results.
Innovative System Design:Power-off memory resumes processing, without having to go back to mechanical zero. Stabilizing voltage circuit protects machining from disturbance of external voltage change.
Quality Mechanical Structure:Made of high-quality resin sand material coupled with stress-treated castings for long-term accuracy and durability.Each axis is driven by AC servo motor and precision ball screw, inspected by RENISHAW laser interferometers.
Power Supply & Automation Panel:The A3-50 CNC power supply features low electrode loss and high stability. Remote control, automation, and strong CNC shaking improve machining efficiency.

Technical Proposal for EDM Die Sinker

Specifications	G45 CNC Mirror Discharge Die Sinker EDM Machine(A3-50)
Machine tool
machine tool structure	Workbench sports style
overall dimension	200024302300mm
Machine weight	2600kg
X axis/Y axis/Z axis
Control accuracy of each axis	0.0001mm
X,Y,Z Axis resolution	0.01m
X,Y,Z Axis travel	450350300mm
Three axis positioning accuracy	0.008mm(GB/T17421.1)
Three axis repeated positioning accuracy	0.002mm(GB/T17421.1)
Working area
Size of working fluid tank (lengthwidthdepth)	850700270mm
Workbench dimensions (length*width)	700*400mm
Attachment installation board to workbench distance	(300-600)mm
lubricating system	Manual centralized lubrication
Workpiece and electrode
Maximum electrode weight	50kg
Electrode installation	manual adjustment
maximum workpiece weight	400kg
Working fluid system
Filter	Paper core filtration
Pulse power supply
Maximum processing current	50A
Maximum processing efficiency	500mm³/min
Optimal surface roughness	0.07m
Minimum electrode loss	0.1%
Minimum current control	0.1A
Communication mode	Ethercat BUS
Servo type	Ethercat BUS
Operating system
operating system	LINUX
Data input	LCD display screen, mouse or touch screen, keyboard or manual control box
Driving method	Absolute AC servo drive
Interpolation function	Straight lines, arcs, ellipses, any curve according to software
Processing discharge conditions	unlimited
Input range	+9999.999~-9999.999

Main Parts& Standard Equipment

Machine	G45 Fully Automatic CNC EDM Machine
CNC pulse power supply model	A3-50(LINUX operating system)
Working fluid tank	Precision Filtration System
Infrared touch screen input system
Standard keyboard input, auxiliary keyboard
Mouse Input
TFT-LCD 17 Inch LCD display
Standard toolbox and fixture
Adjust the host level with bolts and adjust the host level with shims
Operation instructions
X,Y,Z Axis AC servo machine, encoder
Hand controlled box
Multi function keyboard
Precision machining voltage stabilization circuit
Special processing circuit for hard alloy (explosion-proof circuit)
AUTO(Automatic Processing) Unit
Paper core filter
Manual card head
Machine tool working lamp
