U60 CNC Mirror Discharge Die Sinker EDM Machine EDM Die Sinker

Antishicknikoncil Company (ANTISHICNC) is a global pioneer in manufacturing high-quality die-sinking electrical discharge machines by blending high-level craftmanship and state-of-the-art technology.

Factory Sale U60 CNC Mirror Discharge Die Sinker EDM Machine

  • Advanced Technology and Precision:Combines Swiss advanced technology with innovative domestic designs.Achieves three-axis linkage machining with micron-level precision and ultra-low electrode loss.

  • High-Performance Mechanical Design:Features high-quality resin sand casting, precision ball screws, and AC servo motors for exceptional accuracy and durability.CNC servo-controlled lifting tank allows precise height adjustments for workpieces.

  • Integrated and Compact Structure:Integrated design of body, fuel tank, and electric cabinet to save space.Fully automated and capable of unmanned operation, with compatibility for machining centers and high-speed machines.

  • Strict Quality Standards:Assembled and tested to standards of Swiss AGIE CHARMILES. Verification of precision is done by use of German Zeiss measuring instruments and British Renishaw laser interferometers.

Technical Proposal for EDM Die Sinker

SpecificationsG45 CNC Mirror Discharge Die Sinker EDM Machine(A3-50)
Machine tool
machine tool structureWorkbench sports style
overall dimension2000*2430*2300mm
Machine weight2600kg
X axis/Y axis/Z axis
Control accuracy of each axis0.0001mm
X,Y,Z Axis resolution0.01m
X,Y,Z Axis travel450*350*300mm
Three axis positioning accuracy0.008mm(GB/T17421.1)
Three axis repeated positioning accuracy0.002mm(GB/T17421.1)
Working area
Size of working fluid tank (length*width*depth)850*700*270mm
Workbench dimensions (length*width)700*400mm
Attachment installation board to workbench distance(300-600)mm
lubricating systemManual centralized lubrication
Workpiece and electrode
Maximum electrode weight50kg
Electrode installationmanual adjustment
maximum workpiece weight400kg
Working fluid system
FilterPaper core filtration
Pulse power supply
Maximum processing current50A
Maximum processing efficiency500mm³/min
Optimal surface roughness0.07m
Minimum electrode loss0.1%
Minimum current control0.1A
Communication modeEthercat BUS
Servo typeEthercat BUS
Operating system
operating systemLINUX

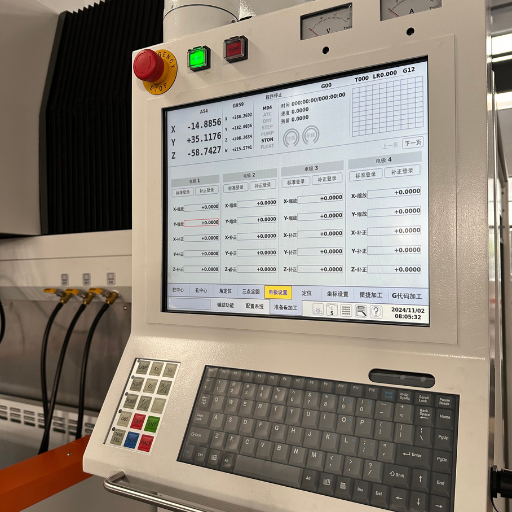

Data inputLCD display screen, mouse or touch screen, keyboard or manual control box
Driving methodAbsolute AC servo drive
Interpolation functionStraight lines, arcs, ellipses, any curve according to software
Processing discharge conditionsunlimited
Input range+9999.999~-9999.999

Main Parts& Standard Equipment

Key components of machineBrandPlace of origin
Machine castingHigh quality resin sand in SwissChina
X, y, z three axis guide railRoller linear guide railHIWIN/THK
Three-axis AC servo motorPanasonicJapan
Three-axis AC servo drivePanasonicJapan
LCD screen17-inch industrial gradeTaiwan,China
Switch power level, brandIndustrial Grade, MINGWEITaiwan,China
Brand of contactorHigh Standard SchneiderFrance
Air SwitchSchneiderFrance
Communication wire and cableIndustrial grade double shielded network cableChina
Integrated circuit chip brandNXP/ATMEL/ALTERA, etc.Abroad
Middle Relay brand and emergency stopIDECJapan
Brand name of optocoupler deviceToshibaJapan

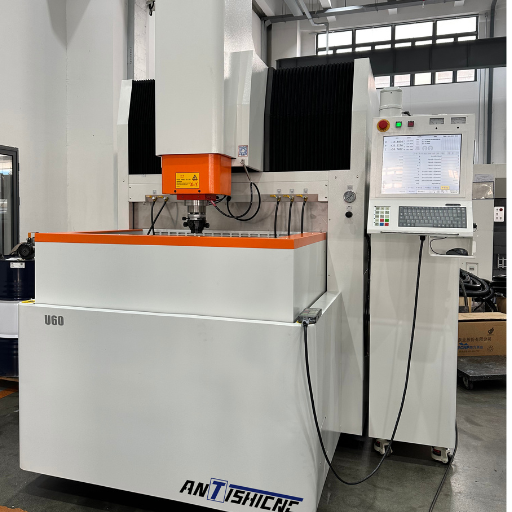

U60 CNC Mirror Discharge Die Sinker EDM Machine EDM Die Sinker Product Display Picture
