Our integrated CNC shaper machines provide unparalleled precision for intricate metalworking, used by top automotive, aerospace, and precision manufacturing companies.
Get in touch with ANTISHICNC company
Shaper Machine
Top Shaper Machine Manufacturer and Supplier in China
- Universal Shaper Machine
- Gear Shaper and Slotting
- CNC Gear Shaper Machine
Precision Shaper Machines for Next-Generation Manufacturing
- CNC Integration: Sophisticated computer numerical control systems for enhanced precision and automation.
- AI & IoT Integration: Smart technologies for real-time optimization and predictive maintenance.
- Sustainability Focus: Eco-friendly manufacturing processes and energy-efficient designs.
ANTISHICNC Shaper Machine: Market Analysis
ANTISHICNC Is Recognized by the Industry

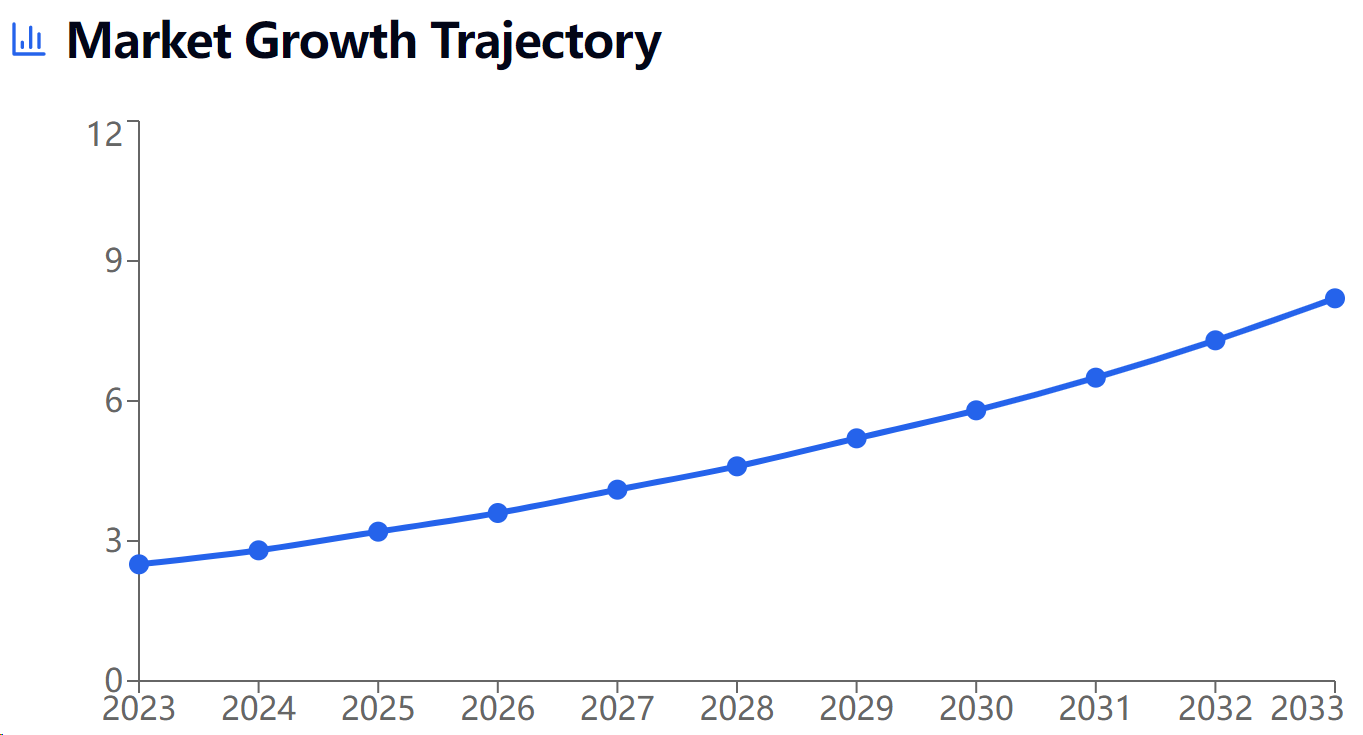

- Market valued at $2.5B in 2023, projected to reach $8.2B by 2033

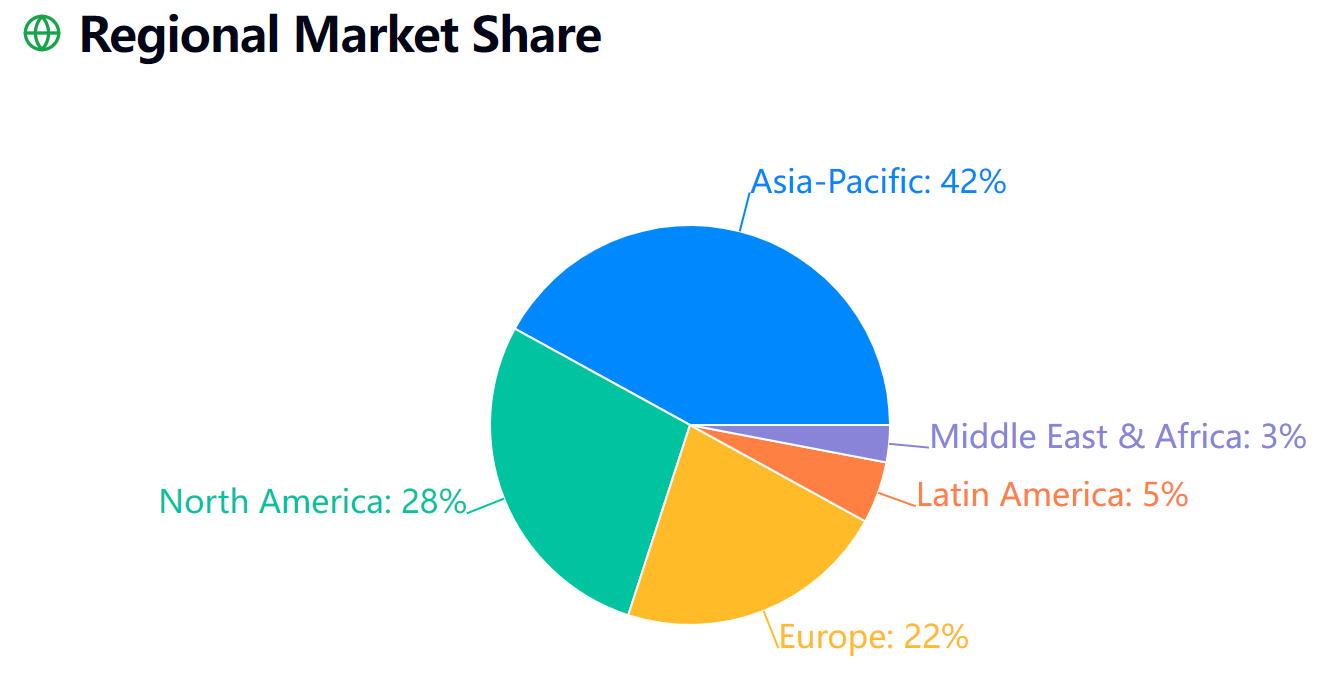

- The Asia-Pacific region is at the forefront, holding 42% market share.
Satisfied Customers Worldwide
0
K+
Months Avg ROI
0
h
Uptime Rate Industry Leading
0
%
Average Rating
0
/5
Solving Critical Manufacturing Challenges
Advanced engineering meets precision manufacturing.
Slow Production
Our rapid response approach lowers cycle time by 40% .
Poor Accuracy
Precision engineering ensures tolerance of ±0.001”
Complex Setup
Swift tool change due to purposeful design.
High Tooling Costs
Economical single-point tools are easily manufactured.
Machine Downtime
Robust construction reduces maintenance and servicing.
Limited Versatility
Universal table movement handles diverse operations.
Advantages of Shaper Machine
Examine the major attributes of our machine shaping, tailored towards precision, productivity, and unwavering constant dependability to serve your manufacturing requirements.
Quick Return Mechanism
Boosts productivity and reduces cycle time by providing efficient reciprocating motion with a quicker return stroke.
Robust Construction
Offers impressive stability and resistance to vibration due to the heavy-duty cast iron base and column.
Versatile Operations
Handles horizontal, vertical, and angular surfaces with ease; ideal for complex shaping operations.
Easy Setup & Operation
Workpiece and tool change clamping requires minimal time to complete, thereby maximizing efficiency.
Best Shaper Machine for Sale
Custom, flexible options for any budget, achieving ROI in 6 to 18 months.

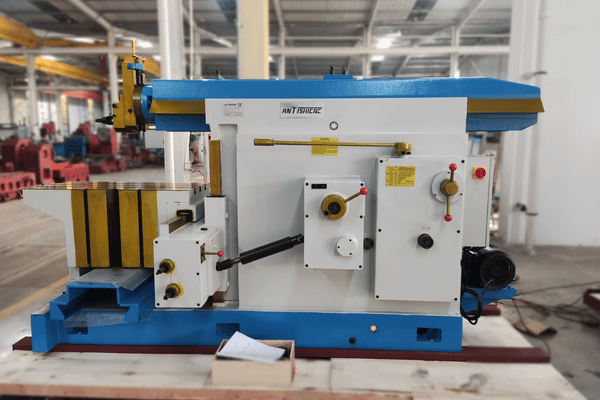

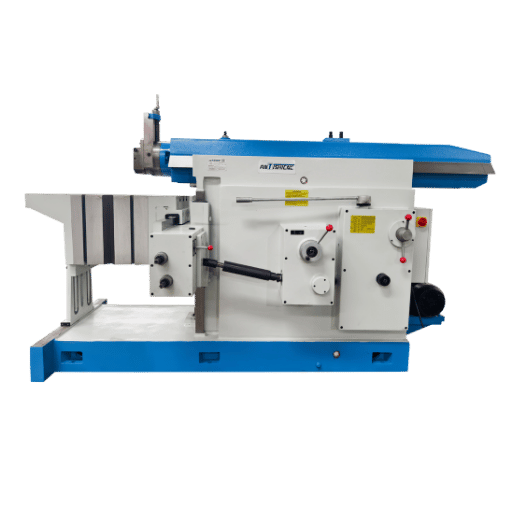

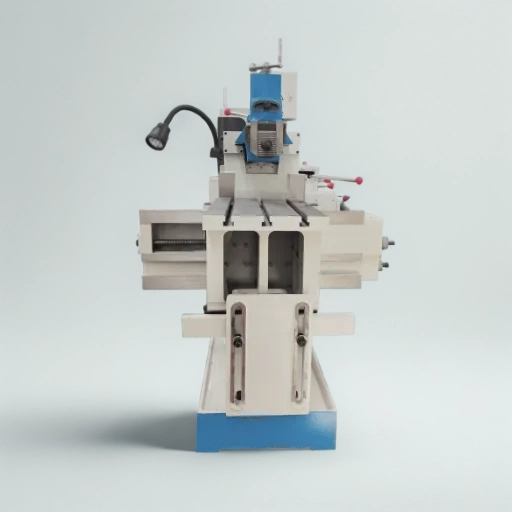

Universal Shaper Machine
Engineered for both industrial and workshop applications, the Universal Shaper Machine performs with high accuracy, ensuring optimum cutting, material removal, and surface finishing. Designed with a robust frame, the machine is provides ease of use, sustained accuracy, and unmatched long-term reliability.
$4600 - $6900/ Per Piece

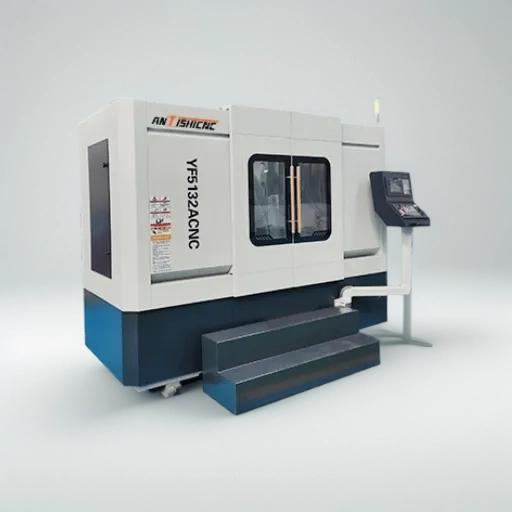

Gear Shaper and Slotting
The Gear Shaper and Slotting Compound Machine performs keyway and slotting with high precision, offering gear shaping and slotting functionalities. It is an essential piece of equipment in the automotive and machine tool manufacturing industries.
$46000 - $50000/ Per Piece

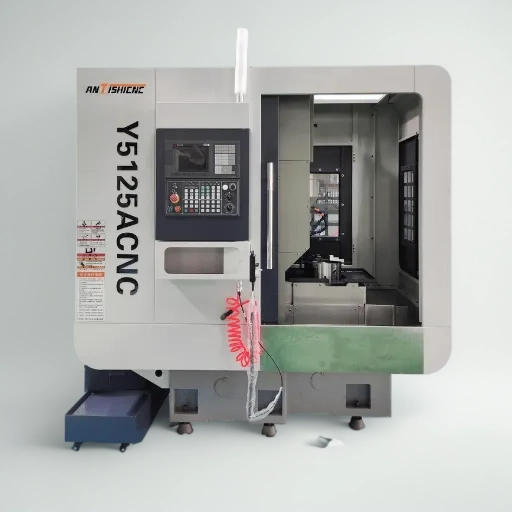

CNC Gear Shaper Machine
The CNC Gear Shaper Machine is a sophisticated multi-axis precision tool used for the shaping of internal and external gears, helical gears, and various complex gear profiles. This tool provides enhanced automation and consistent dependability for streamlined production of gears.
$125000 - $155000/ Per Piece
Understanding the Working Principle and Components

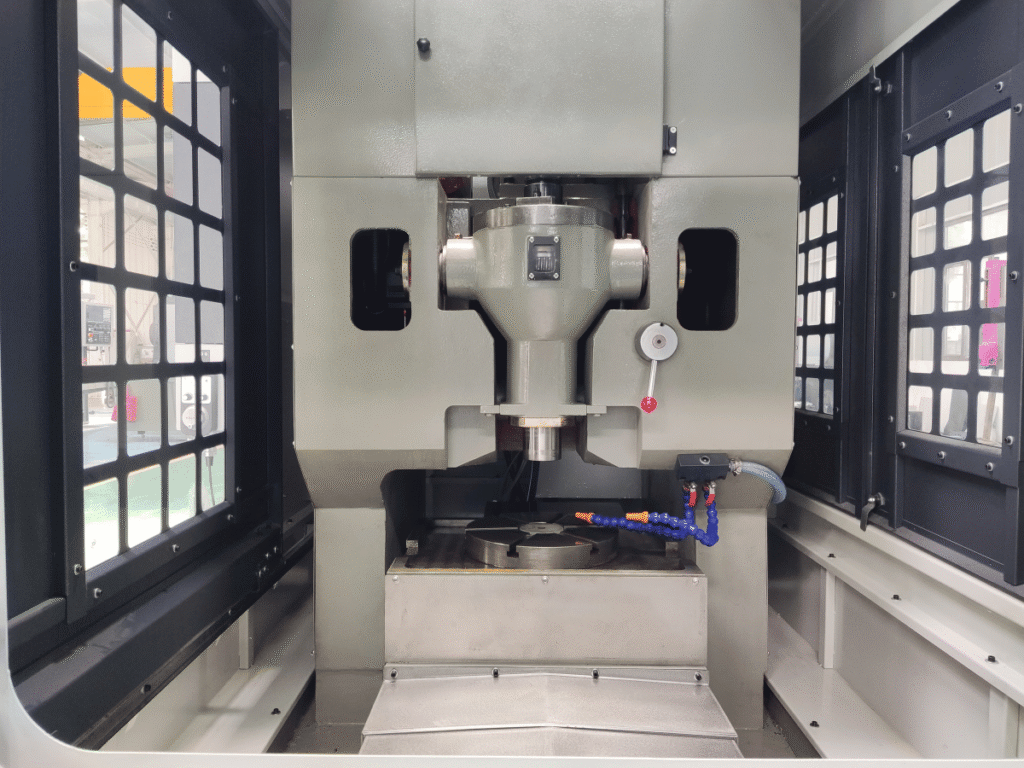

Shaper Machine Working Principle
- A shaper machine operates on the basis of a single-point cutting tool which operates in a linear fashion over the workpiece.
- The cutting action that occurs is a result of the ram’s forward stroke, in which the cutting is performed, followed by a return stroke which allows the tool to adjust for the next cutting action.
- The mechanism in question changes rotary motion to linear motion to enable the cutting of flat surfaces and slots.

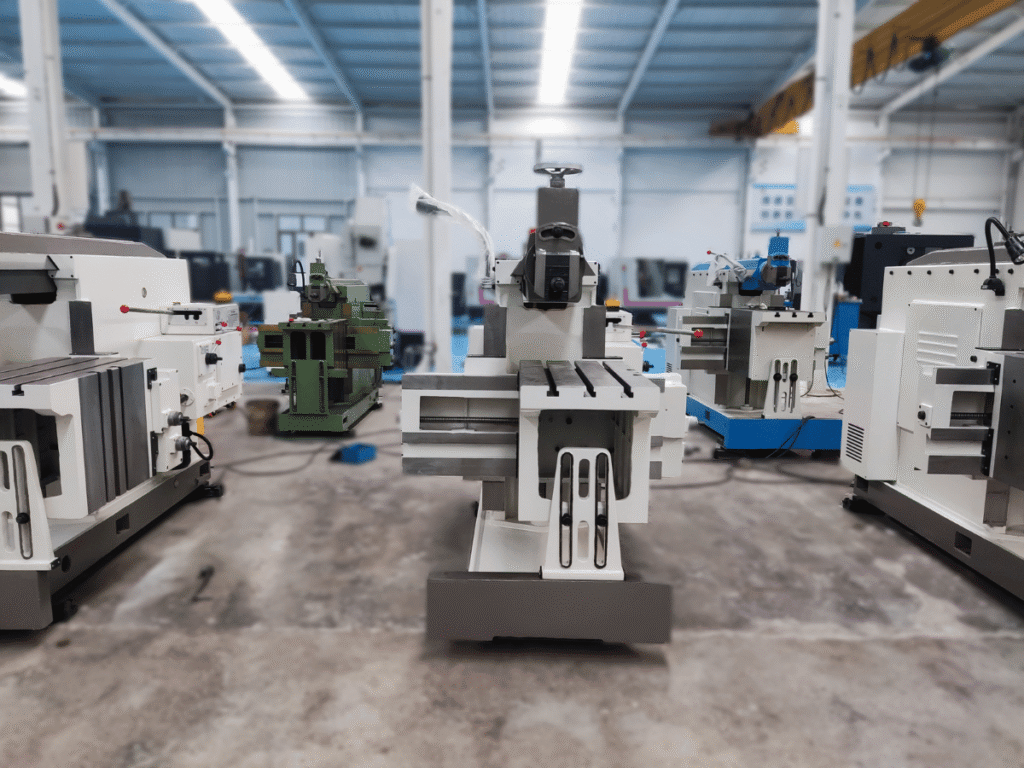

Types of Shaper Machine
- Conventional Shaper Machines: Basic manual systems suitable for small to medium-scale operations that conduct routine tasks.
- CNC Shaper Machines: Provides automation and accuracy for complex designs and other high-precision tasks.
- Horizontal Shaper Machines: Used for flat surface machining, making grooves, and keyways with a horizontally mounted ram.
- Vertical Shaper Machines: Used for machining slots and internal surfaces with vertically mounted ram for precision control over depth.
- Geared Shaper Machines: Faster machines for shaping processes that derive power propelled through gears.

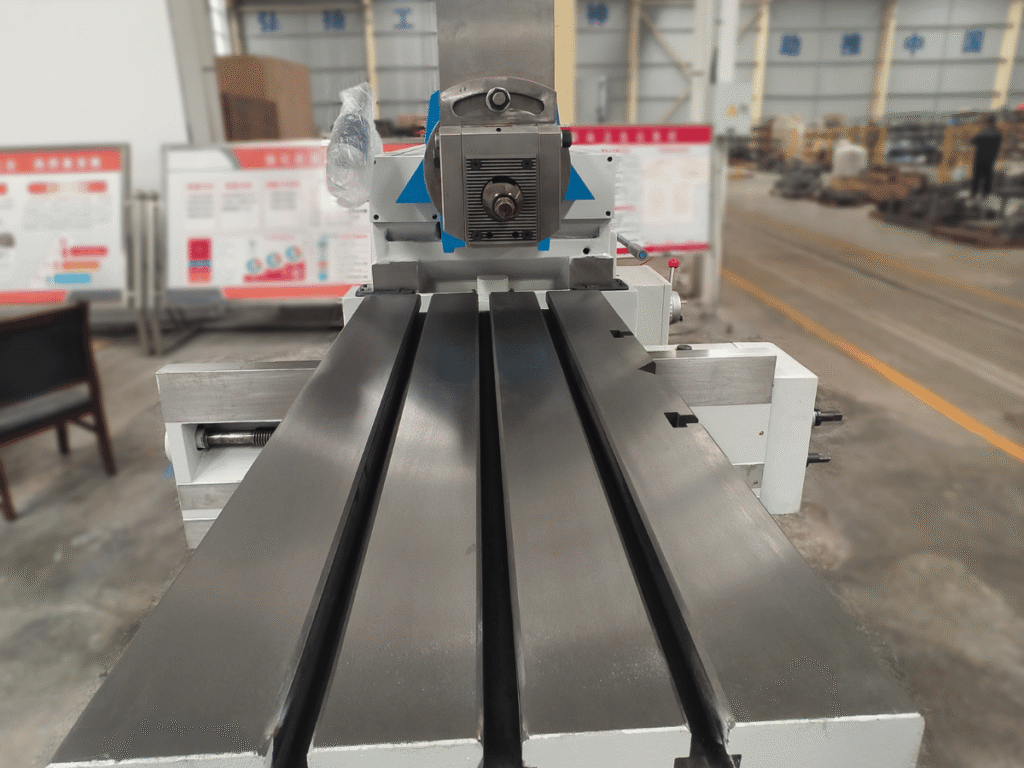

Common Components of a Shaper Machine
A typical shaper machine has parts such as the ram, tool head, tool post, and feed mechanism. The ram holds the cutting tool and moves it back and forth, while the tool head provides the mounting for the cutting tool. The feed mechanism, which is separate, is responsible for moving the workpiece and makes it stand still when a cut is made.
Safety Features and Certifications of the ANTISHICNC Shaper Machine
ISO 9001
Quality Management
CE Marked
European Compliance
UKCA Certified
Safety Compliance

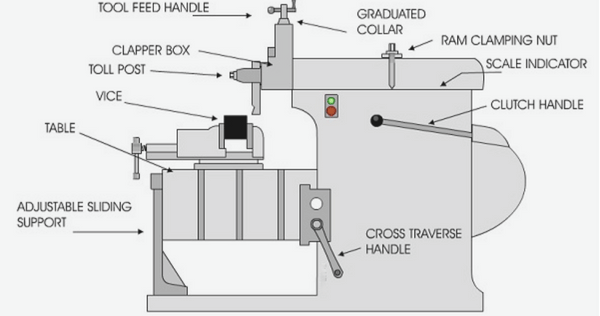

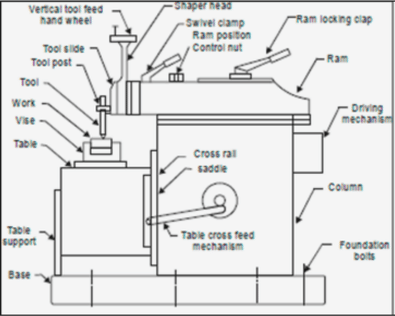

Diagram of the Shaper Machine
Specification of Shaper Machine
| Specification | Value | Details |
|---|---|---|
| Maximum Stroke Length | 16" - 24" (406-610mm) | Available in multiple sizes |
| Cutting Speed | 50-350 ft/min | Variable based on material |
| Feed Rate | 0.005" - 0.170" per stroke | Adjustable for precision |
| Motor Power | 2-5 HP | Depends on machine size |
| Ram Speed | 10-150 strokes/min | Variable speed control |
| Table Size | 24" x 12" to 36" x 18" | Multiple configurations |
| Maximum Cut Depth | Up to 6 inches | Single pass capability |
| Machine Weight | 1,500-3,000 kg | Depends on size |
| Drive Type | Mechanical/Hydraulic | Both options available |
| Accuracy | ±0.001" (±0.025mm) | High precision machining |
Industries We Serve
Shaper Machine Application

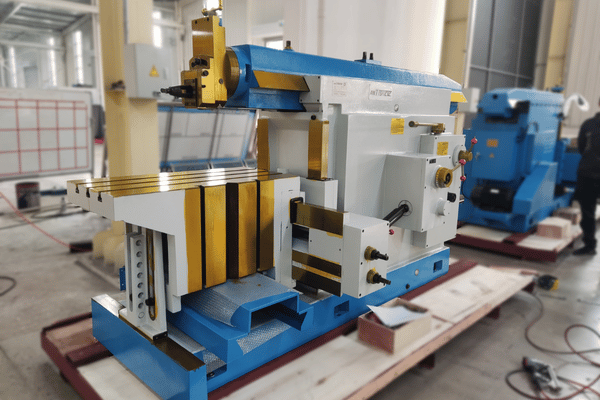

Why Choose Our Shaper Machine Tools
- Operational Excellence: Each piece of machinery is manufactured and systematically controlled under ISO certification, assuring advanced quality compliance.
- Customization Options: Each machine is customizable with an array of configurations and add-on accessories to satisfy precise user specifications.
- Competitive Pricing: At market, we offer the best value accessible, and further, enhanced flexibility with trade-in and financing options.
Customer Reviews & Testimonials
See what our customers say about our shaper machines
"This particular shaper machine has changed the way we do keyway cutting. The accuracy is phenomenal, and the increase in productivity by 35% due to the quick return mechanism is tremendous."
John Miller
Manufacturing Engineer
“For cutting gear teeth, this shaper has proven to be accurate without fail. Their construction is superb and the level of upkeep needed is low. Would definitely advocate.”
Sarah Chen
Production Manager
Expert Guides to Shaper Machine
Related equipments provided by ANTISHICNC
Latest Blog Posts about Shaping Machine
Check out our newest blog entries on shaping machines, detailing their functions, applications, and advantages for different sectors.
It is important to know why shapers, slotting machines, and planers work the way they do, in order that one is skilled in manufacturing or machining, or metalworking. These...
Gears-that is, a driving force for every machine that powers our day-to-day activity-differ from motor vehicles to machines, heavy industrial tools, and precision devices. Right into the making of...

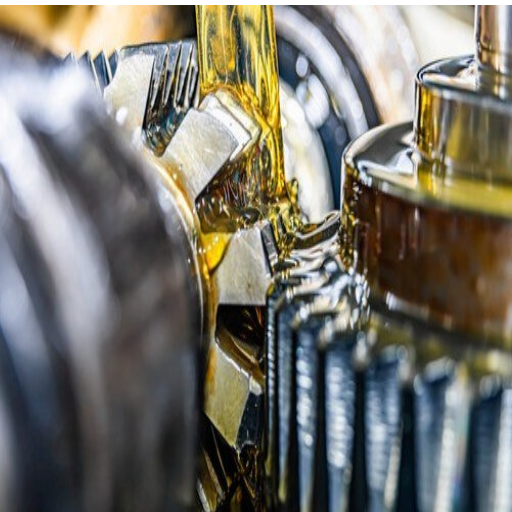

Considered a field of machining where the gears are produced by cutting, the gear manufacturing division strongly emphasizes accuracy and innovation. Gear shaping and gear hobbing are the two...
A shaper proves to be an essential tool in the manufacturing and machining arena due to its versatility and simplicity. Working solidly for the molding and finishing of various...
Getting a quote for Industrial Shaper
Become part of thousands of manufacturers globally who depend on our shaper machines for top accuracy, dependability, and unmatched return on investment. Receive your tailored quote today and see how we can enhance your operational efficiency.
Frequently Asked Questions
What is the distinction between a lathe and a shaper machine?
A shaper machine is distinct from a lathe machine in that it specializes in generating flat surfaces, grooves, and keyways, whereas a lathe specializes in shaping cylindrical workpieces. A shaper machine uses a single-point cutter that moves in a straight cutting tool path, while a lathe machine the workpiece with the tool, which is held stationary.
What are the classifications of cutting tools that can be shaper machines?
Horizontal shaper machines are known to utilize single point cutting tools which can either be made from high-speed steel or carbide. These single point tools are mounted in the tool holder and cut the workpiece in a back and forth motion.
What is the working of the quick return mechanism of the shaper machine?
The quick return mechanism of a shaper machine functions such that the ram moves faster in the return stroke than in the cutting stroke. There is a system of a mechanism that controls the ram movement that is configured in such a way that the cutting tool is able to spend more time in the forward stroke while automating the return movement. This contributes to a better overall cycle time of the shaping operation.
Is a shaper machine suitable for woodworking?
A shaper machine is suitable for woodworking and is referred to as a wood shaper. In the field of woodworking, shapers machine are used for producing edges, moldings and ornate profiles on wooden workpieces. The machine is able to perform accurate shaping and comes with a set of special cutting tools meant for wood work pieces.

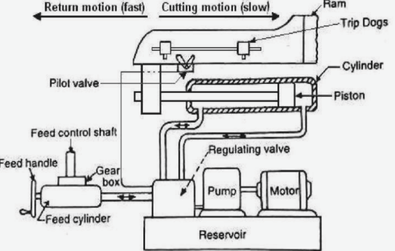

What is the difference between a standard shaper and a hydraulic shaper?
Mechanical means guide the movement of a standard shaper, whereas a hydraulic shaper is powered by a hydraulic system. The use of hydraulic power leads to smoother operation, better control of cutting speeds, and the ability to work with larger pieces.
What maintenance is required?
Scheduled maintenance consists of lubrication, inspection of cutting tools, and periodic calibration. All of our machines are built for low-maintenance upkeep and have a realistic silhouette for servicing. We offer detailed maintenance schedules and can also provide service contracts.
