Top ATP Series Plate and Tube Integrated Laser Manufacturers and Suppliers in China

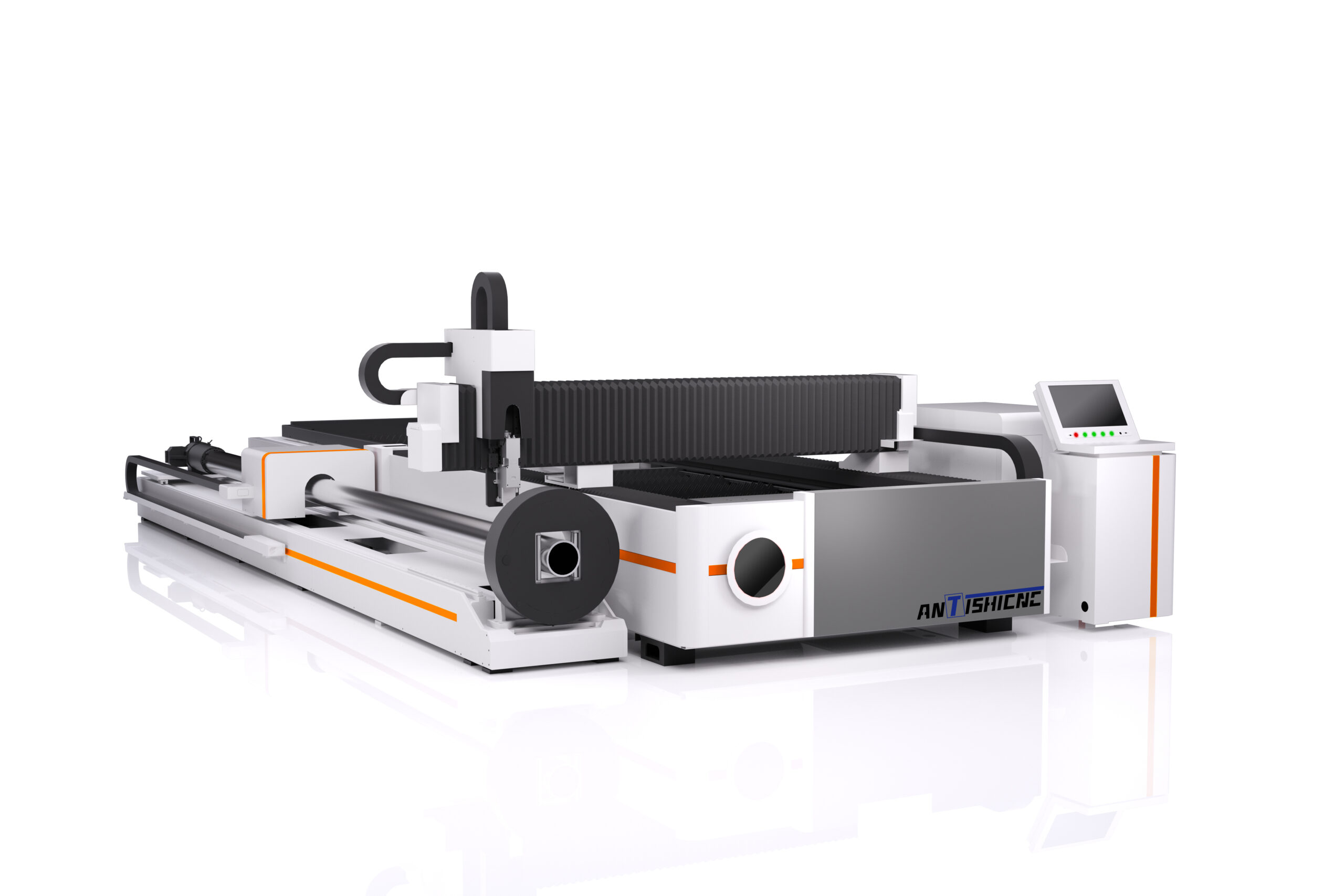

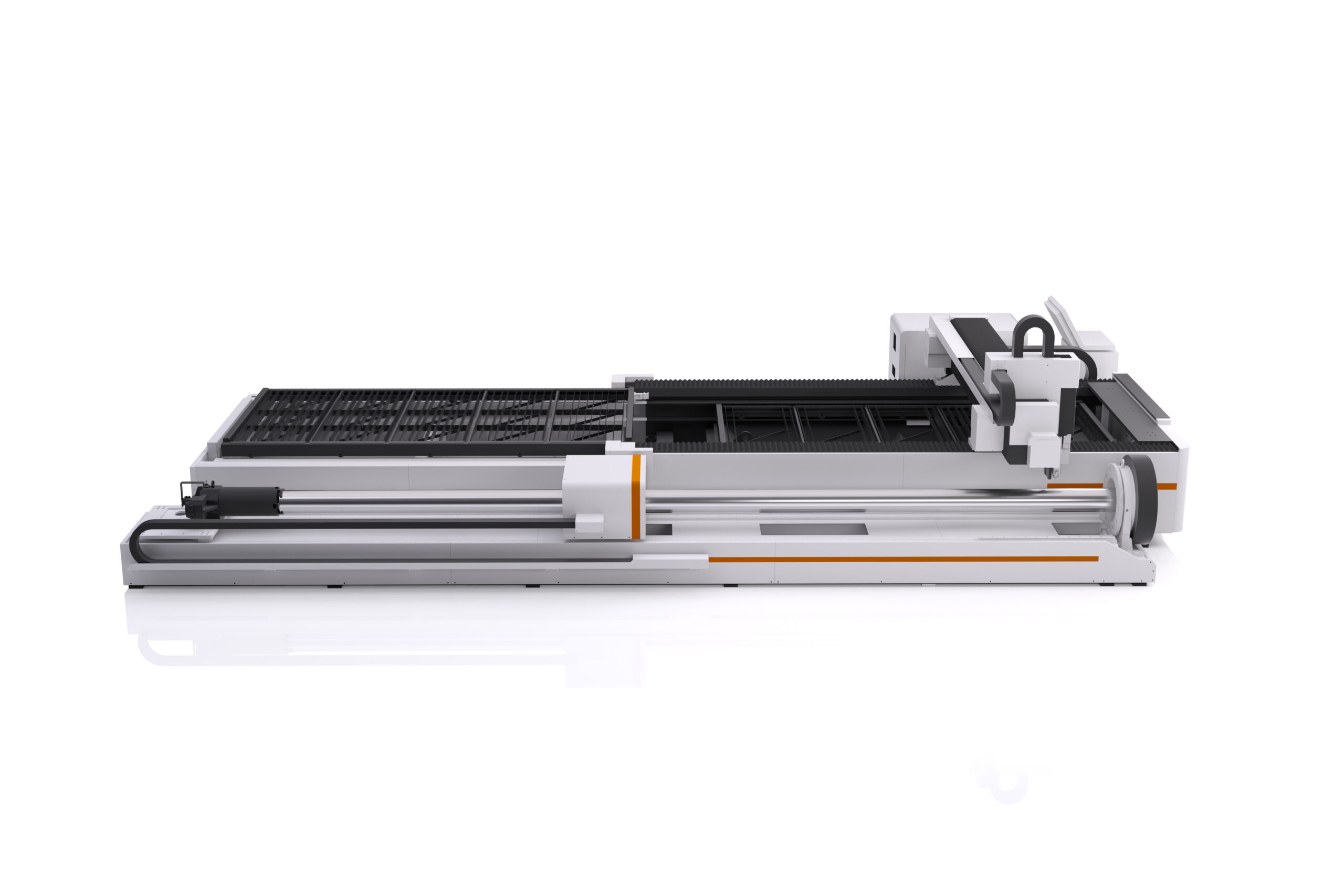

ATP Series Plate and Tube Integrated Laser Cutting Machine

At ANTISHICNC, with the most advanced laser technology, decayplate, and tube–processing quality, efficiency, performance, and profitability–stand at the zenith.

Factory Sale ATP Series Plate and Tube Integrated Laser

  • High-Precision Cutting: Laser beams generate high precision, which is well-suited to a diverse range of cutting needs.

  • Fast Cutting: With fast cutting speeds and complete automation, laser cutting machines are ideally suited for large-scale mass production.

  • Ease of Use: Laser cutting machines feature an easy-to-use numerical control system, making the operation straightforward.

  • Material Processing Versatility: Laser-cutting machines are incredibly versatile and can cut almost any material with ease.

Technical Proposal for ATP Series Plate and Tube Integrated Laser

ModelATP-4020
Working Area4000mm×2000mm (sheet)
160*160*6000mm (Pipe)
Laser Wavelength1080nm
Laser Power3000W
Working Life of Fiber SourceMore than 100000 hours
Laser Beam quality<0.373mrad
Laser Cutting HeadRaytools Automatic Focus Laser
Position TypeRed Dot Pointer
Cutting Thickness0.5-8mm for Large Quantity Process
Max. Idle Running Speed100M/min
X/Y/Z Stroke4000/2000/160mm
Geometric Position AccuracyWithin ±0.05mm/M
Reorientation AccuracyWithin ±0.03mm/M
Lubrication SystemElectrical Motored
Min. Line Width±0.02mm
Power Consumption≤13KW
Transmit systemDual Rack & Pinion type
Auxiliary Gas for Cutting/Assist sysOxygen, Nitrogen, Air/Germany SMC
Compatible SoftwareAutoCAD, CorelDraw, etc.
Handle ControlWIFI Wireless Control Handle
Graphic FormatDXF/PLT/AI
Power Supply Voltage380V/3Ph/50Hz
Warranty2 Years

Standard Equipment&Optional Equipment

ModelDetail
Control SystemFSCUT3000 Control System
Drives and MotorsFuji Driver and Motor System
Fiber Laser SourceRaycus Laser Source Global Edtion
Fiber Laser HeadRaytools Auto Focus Laser Head
Electric Proportional ValveJapan SMC Electric Proportional Valve
Pneumatic chuck2 chuck 6 meters length
Chuck Diameter160mm
Rack and GearHIWIN and YYC
LubricationAutomatically Lubrication System
ReducerMotoreducer
Electron ComponentFrance Schneider
ChillerS&A CWFL-3000
Voltage380V 3Ph 50Hz

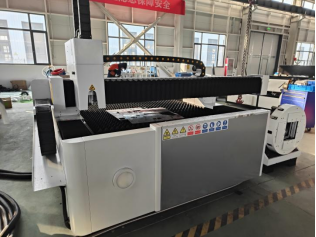

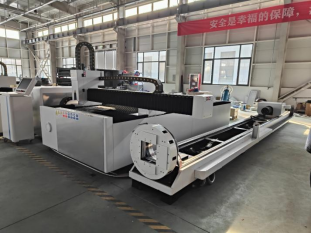

ATP Series Plate and Tube Integrated Laser Product Display Picture

Quality Assurance and After-Sales Service

Shanghai ANTISHI guarantees that the products shipped from the factory are brand new and unused, guaranteeing high quality and reliable performance.

For the products sold by Shanghai ANTISHI, we provide users with free technical consultation before sale, and are responsible for providing user pre-sales training. Technicians provide unconditional technical support, guide and assist customers in installation; one-year free warranty, lifetime service, and labor costs for over-guaranteed machine tools. During the warranty period, the company will provide free parts (except wearing parts) that are not damaged due to improper operation.

GUARANTEE:

  • 24 hours online service
  • User-friendly English manual and Video CDfor machine using and maintaining.
  • Overseas support

Warranty service:

Two year warranty (24 months since customer receive & use the machine).

The manufacturer guarantees to provide life-long paid maintenance services for the product.

Laser Plate Cutting: Revolutionizing Metal Fabrication

Metal fabrication relies on precision and performance, with laser cutting at the forefront of the process. This technology utilizes lasers to cut metal plates of various sizes and thicknesses with precision and speed. This article examines how laser cutting, as exemplified by AlicePlate Cutting, is advancing metal fabrication, highlighting the benefits of laser cutting over traditional methods, the technology behind it, and its increasing application in industries such as aerospace, construction, and automotive. Whether you’re a professional, manufacturer, or just curious, learn why laser cutting is becoming the new standard.
